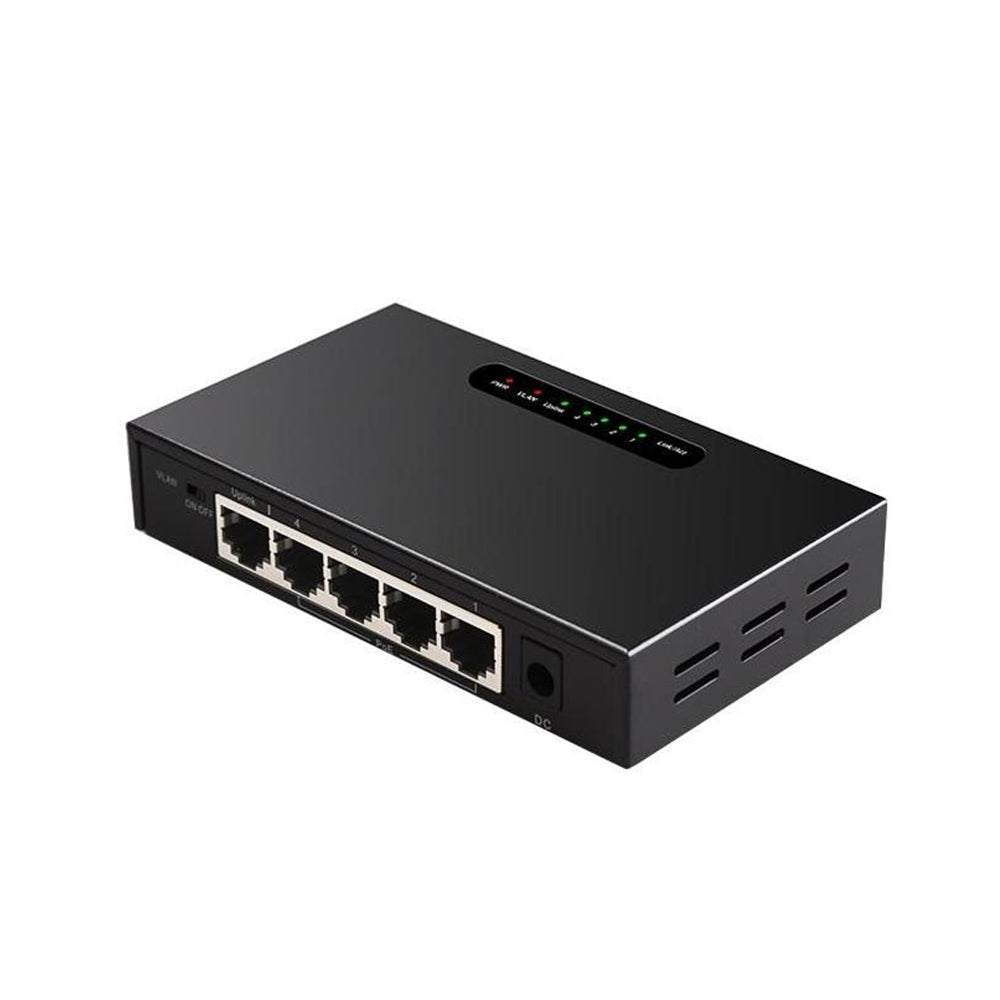

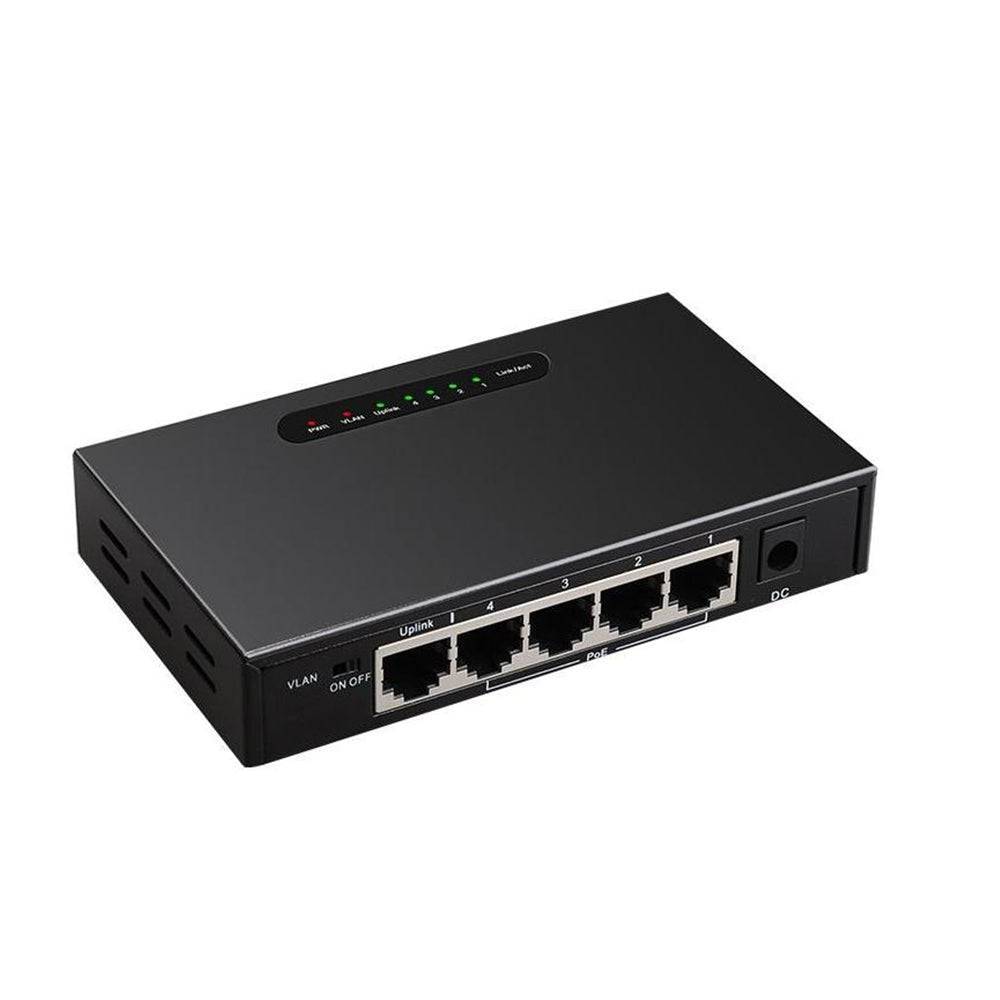

M-Link TXE038 5-Port Gigabit PoE Switch with 4 PoE Ports and 10/100/1000Mbps Speed

The M-Link TXE038 is a 5-Port unmanaged Gigabit PoE switch (4 PoE ports) designed for small networks and home/office use. It supports IEEE 802.3 standards, high-speed data transfer, and provides stable power for PoE devices such as IP cameras and access points.

Key Features

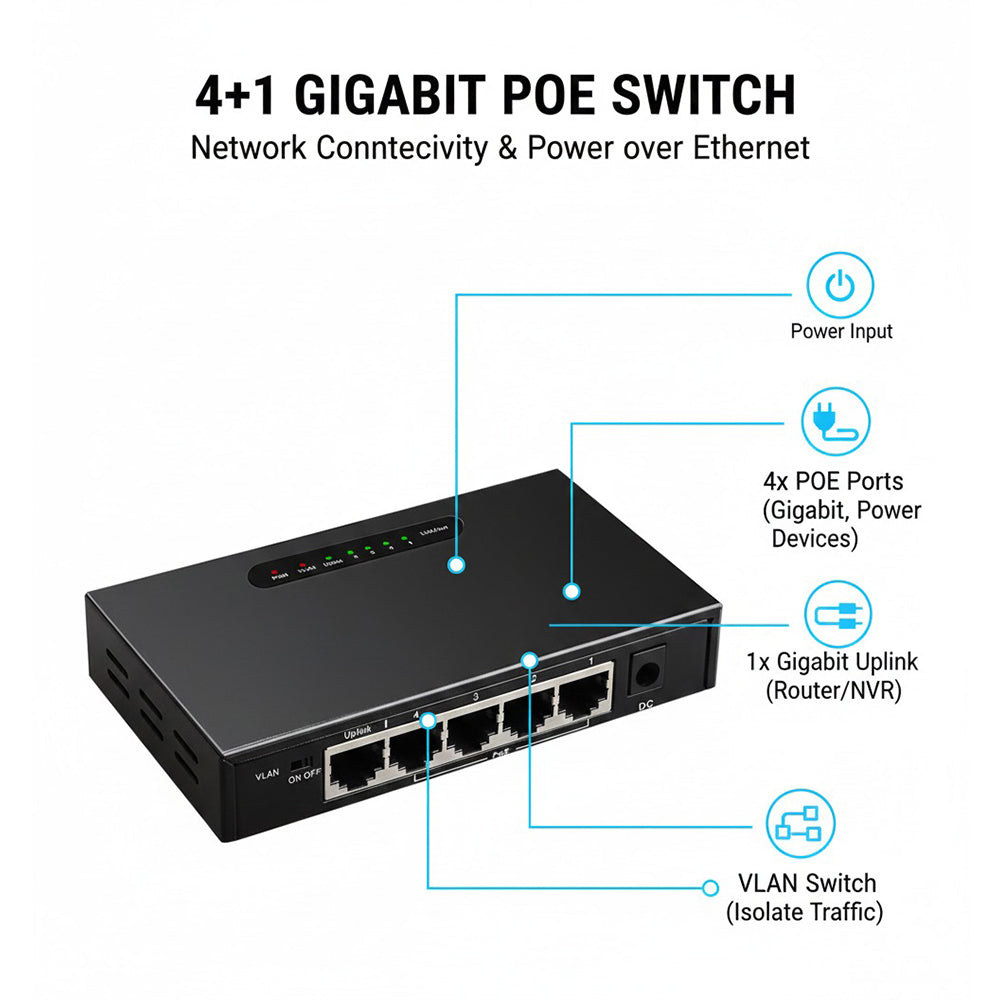

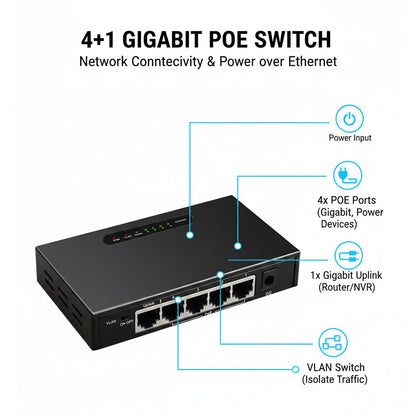

• 5-Port 10/100/1000Mbps unmanaged switch with 4 PoE ports
• PoE ports compliant with IEEE802.3at/af standards, 60W total PoE budget
• High-speed data transfer with 10Gbps switching capacity and 7.44Mpps packet forwarding rate

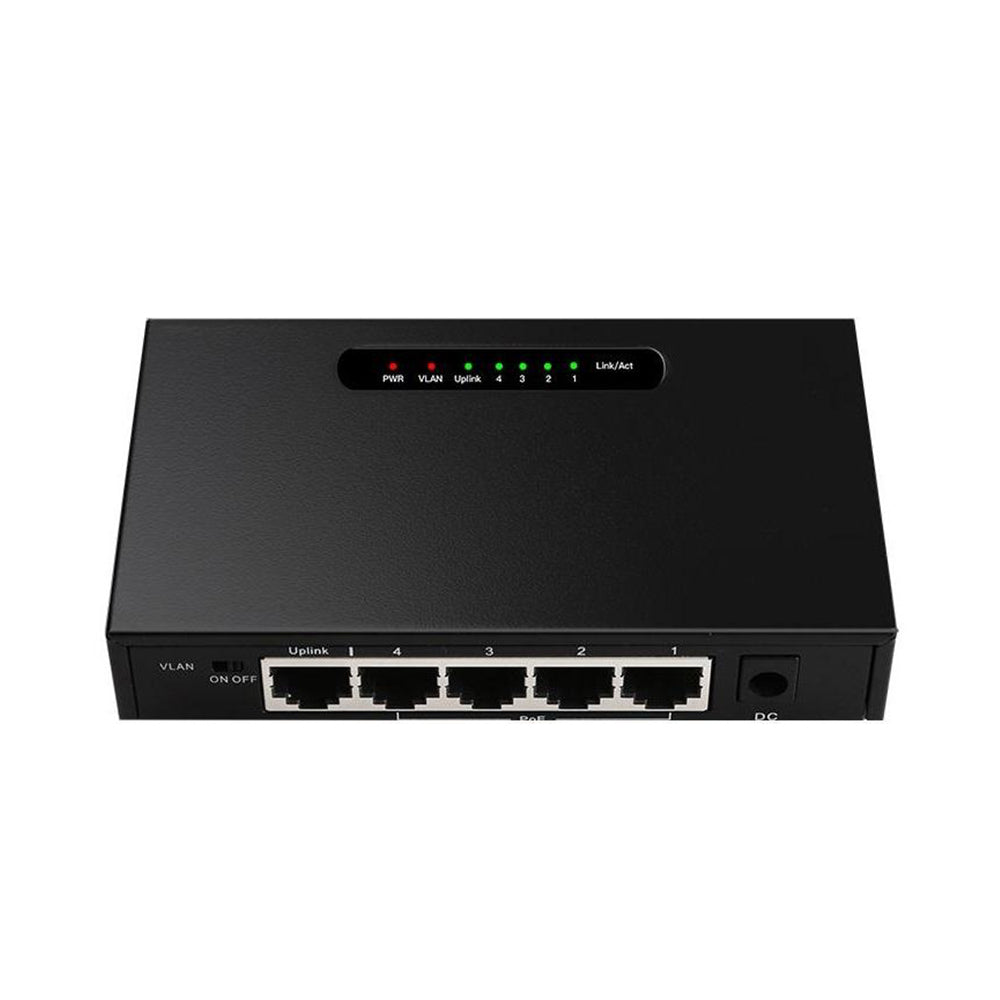

• Easy connectivity: RJ45 ports with link/activity indicators per port
• Compact and durable design, ideal for desktop or small rack setup
• Supports IEEE802.1q VLAN tagging and energy-efficient Ethernet IEEE802.3az
• External DC 52V/1.25A power supply included with 2-pin power cord

Specifications

• Model Name: TXE038 (TXE320 chipset: AN8855H+TMI7604R)
• Network Media: 10Base-T (Cat3-5, max 100m), 100Base-TX (Cat5-5e, max 100m), 1000Base-T (Cat5-5e, max 100m)
• MAC Address Table: 2K
• Transfer Method: Store-And-Forward
• Power Consumption: Max 63W (PoE on, 220V/50Hz)
• Dimensions (W x D x H): 123 x 70 x 23 mm
• Operating Temperature: 0°C - 45°C
• Storage Temperature: -40°C - 70°C
• Operating Humidity: 10% - 90% non-condensing
• Storage Humidity: 5% - 90% non-condensing
