Maken Interface Conversion from RJ11 Printer Kick to USB, Compatible with --> SK-410 and CK-420 Cash Drawer

Overview:

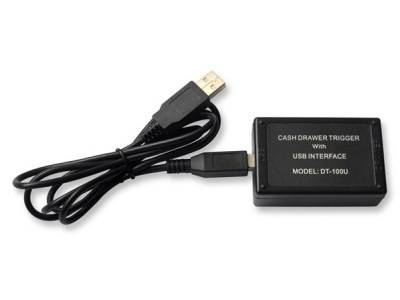

The Cash Drawer Trigger DT-100U (RJ11 to USB) is designed to provide USB interfacing to the cash drawer. This allows the cash drawer, which was previously connected to POS printer or cash register, to be directly connected to a USB port of the computer. This means that through the DT-100U, the cash drawer can be directly connected to the computer when there is no printer used in the POS system.

The Cash Drawer Trigger (RJ11 to USB) module uses a Virtual Serial Port Driver, making it appear to software like a standard RS232 Serial Port. The existing POS Software can communicate with the USB Cash Drawer Trigger as though connected to a Serial Port. A unique serial number is assigned to each USB Trigger Module and the Driver Software will assign the next available Serial Port to each device it recognizes (multiple Triggers can be used on one PC).

Features:

• Cash drawer can be directly connected to the computer with DT-100U
• Powered by the USB bus, external power is not required.
• Allows for "Hot Plugging", Plug and Play connectivity.
• No need to set the COM property.
• Suitable to any CASH DRAWER command.
• Write any data to drawer COM port will open the cash drawer.

Specifications:

Product Code	DT-100U
Computer interface	USB
Power Requirement	5V 200mA (max)
Cash Drawer Connector	RJ11
Rating	suits 12 Volts, 24 Volts
Repeat rate	5 seconds (Max)
Environment Operating Temp	0-55°C
Storage Temp	-10-55°C
Humidity	10-90% relative
Dimension Interface Module	68 (h) X44 (w) X25 (h) mm
Weight	80 grams (including cable)
Color	Black
