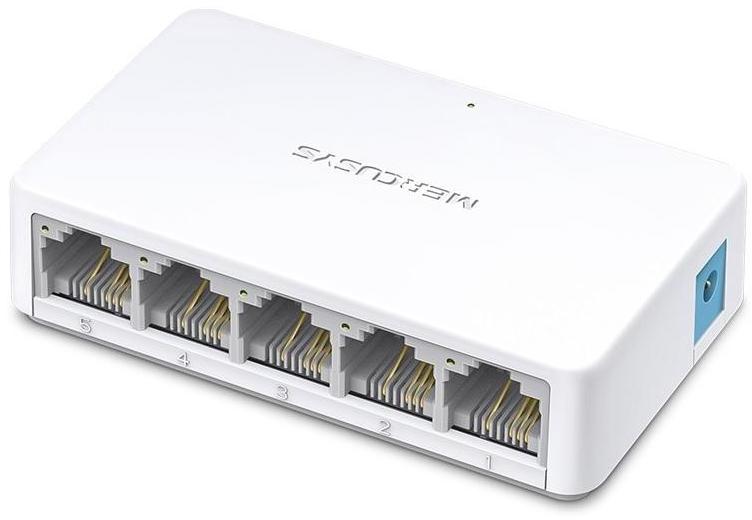

MERCUSYS 5 PORT 10/100 SWITCH - MS105

5 Port 10/100Mbps Desktop Switch

Five 10/100Mbps Auto-Negotiation RJ45 Ports with Auto MDI/MDIX Supported

The MS105 is flexible and is fully compatible with Computers, Printers

IP Cameras, Smart TVs, Game Consoles, and more

This makes it perfect for Home, Small Office, and even Dormitory Environments

Easily Wired Network Expansion

Compact Design for flexible arrangement

Plug and Play setup, no Configuration required

Specifications

Hardware

Dimensions (W X D X H) 82 x 49 x 21 mm

Interfaces

5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX

External Power Supply

External Power Adapter

(Output: 5.0VDC/0.6A)

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

CSMA/CD

Fan Quantity

Fanless

Data Rates

10/100Mbps at Half Duplex

20/200Mbps at Full Duplex

Buffer Capacity

768Kb

Jumbo Frame

2KB

Switching Capacity

1Gbps

LED

Ethernet (1, 2, 3, 4, 5), Power

Others

Certifications

CE, RoHS

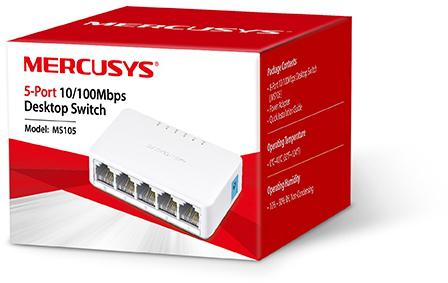

Package Contents

5-Port 10/100Mbps Desktop Switch

MS105

Power Adapter

Quick Installation Guide

Environment

Operating Temperature: 0 C-40 C (32 F-104 F)

Storage Temperature: -40 C-70 C (-40 F-158 F)

Operating Humidity: 10% - 90% Con-Condensing

Storage Humidity: 5%- 90% Non-Condensing
