ME70X

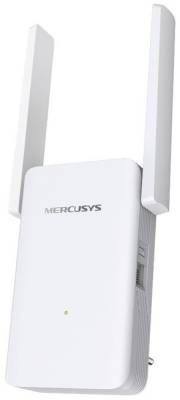

Mercusys ME70X AX1800 Wi-Fi Range Extender

Mercusys ME70X AX1800 Wi-Fi Range Extender, SPEED: 574 Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, SPEC: 2x Fixed External Antennas, 1 x Gigabit Port, Wall Plugged, 1024 QAM, OFDMA, FEATURE: MERCUSYS APP, WPS/Reset Button, Signal Indicator, Range Extender/Access Point

Features:

• Dual Band Speeds up to 1800 Mbps – 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
• Armed with WiFi 6 – Improves virtually every aspect of your network: speed, efficiency, and capacity.
• Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles.
• Works with Any Routers – To Extend WiFi to Where You Need It Most.
• Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds.
• Built-In Access Point Mode – Works as RE mode and AP mode.
• Manage Your Network with App - Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.

Fast Dual-Band AX1800
1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ideal for 4K streaming and online gaming.

Two Adjustable High-Gain Antennas
Create a stable Wi-Fi connection and enjoy the high speed expansion WiFi wherever you need.

Works with Any Router
Connects to your existing router and boosts more WiFi signals throughout your home.

Built-in Access Point Mode
Switch to a dual band WiFi access point by connecting to a gigabit Ethernet cable.

Gigabit Ethernet Connection
Provides speedy wired connections for PCs, IPTVs, and game consoles.

MERCUSYS App Control
Helps you set up in minutes and manage your WiFi at home or away through your iOS or Android devices.

Wi-Fi 6 Brings Your Network to a Next Level
Armed with Wi-Fi 6 , ME70X improves virtually every aspect of your network: speed, efficiency, and capacity.

Extend WiFi to Where You Need It Most
Expand coverage of your Existing Router. The two adjustable high-gain antennas extends WiFi signals to where your router WiFi cannot reach. This AX1800 Range Extender is backward compatible with previous WiFi generations (11b/g/n/a/ac) and will work with all your existing internet-connected devices.

Adaptive Path Selection
Keeps your network running at top speed by automatically choosing the fastest connection path to the router.

High Speed Mode
Use both WiFi bands to enjoy super-fast connections—ideal for HD streaming and gaming.

Effortless One-Touch Setup
Press the WPS button on your router and extender to expand your Wi-Fi coverage in seconds.

Built-In Access Point Mode
ME70X is more than just a WiFi range extender. Connect your wired internet connection to the ME70X via Ethernet cable to turn it into a dual band WiFi access point.

Control at Your Fingertips
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).

Specifications:

Specifications
Product Code	ME70X
Wireless
Wireless Standards	IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
Frequency	2.4GHz and 5GHz
WiFi Speeds	574 Mbps at 2.4GHz, 1201 Mbps at 5GHz
Reception Sensitivity	5GHz:
	11ax HE80 MCS0:-88 dBm ;
	11ax HE80 MCS11:-58 dBm
	11a 6Mbps:-94 dBm;
	11a 54Mbps:-76 dBm
	11ac VHT80 MCS0:-91dBm;
	11ac VHT80 MCS9:-63dBm;
	2.4GHz:
	11ax HE40 MCS0:-93 dBm ;
	11ax HE40 MCS11:-63 dBm
	11g 6Mbps:-95 dBm;
	11g 54Mbps:-77 dBm
	11n HT40 MCS9:-72dBm;
Wireless Security	WEP, WPA, WPA2, WPA3-PSK
Hardware
Dimensions	138.6 x 100.3 x 68.4 mm
Interfaces	1 Gigabit Ethernet Port
Button	WPS / Reset Button
Antenna Type	2x External Antennas
Power Consumption	13W
Others
Certifications	RoHS
Package Contents	Wi-Fi Range Extender ME70X
	Quick Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F)
	Operating Humidity: 10%~90% Non-Condensing
