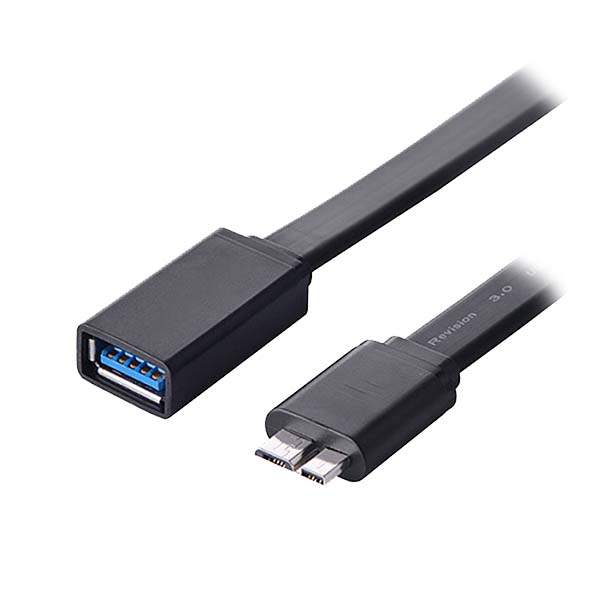

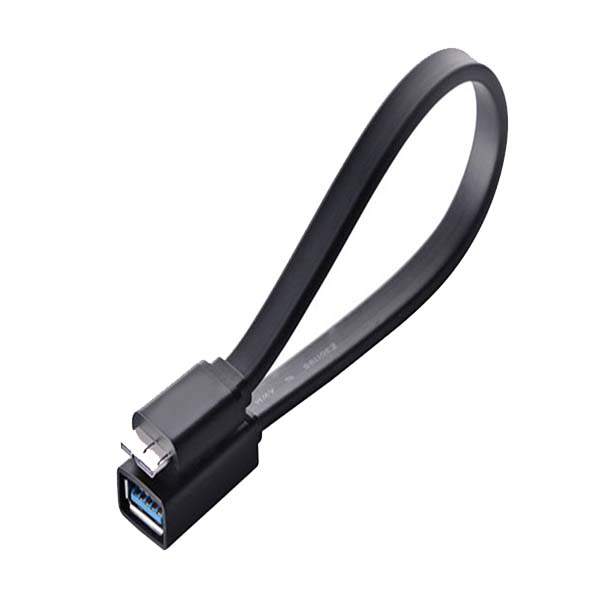

Micro USB 3 Male to USB 3 Female OTG Cable

Micro USB 3 Male to USB 3 Female OTG Cable allows to connect of standard USB devices to Micro B enabled devices. This cable supports data transfer speed up to 5Gbps.

OTG Micro Plugs

With the introduction of the USB micro plug, a new plug receptacle called micro-AB was also introduced. It can accept either a micro-A plug or a micro-B plug. Micro-A adapters allow for connection to Standard-A plugs, as used on fixed or standard devices. An OTG product must have a single micro-AB receptacle and no other USB receptacles.

An OTG cable has a micro-A plug on one end, and a micro-B plug on the other end (it cannot have two plugs of the same type). OTG adds a fifth pin to the standard USB connector, called the ID-pin; the micro-A plug has the ID pin grounded, while the ID in the micro-B plug is floating. A device with a micro-A plug inserted becomes an OTG A-device, and a device with a micro-B plug inserted becomes a B-device. The type of plug inserted is detected by the state of the pin ID.

Three additional ID pin states are defined at the nominal resistance values of 124 kΩ, 68 kΩ, and 36.5 kΩ, with respect to the ground pin. These permit the device to work with USB Accessory Charger Adapters that allows the OTG device to be attached to both a charger and another device simultaneously.

Features:

• OTG function
• Compatible with USB3 micro B devices
• Support data transfer up to 5Gbps
• Nickel-plated connectors

Specifications

• Connector A: USB3 Micro B male x 1
• Connector B: USB3.0 A female x 1
• Data transfer: up to 5Gbps
• Cable length: 20cm
