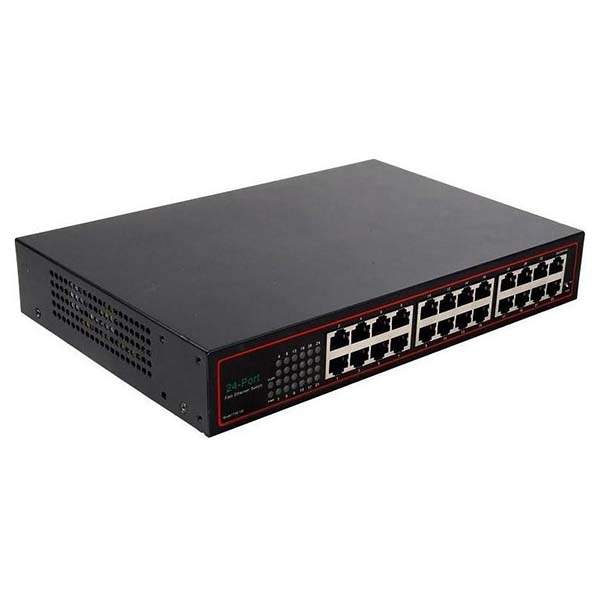

Microworld TXE100 24 Port 10/100 Mbps Iron Shell Ethernet Switch, 24x 10/100 Mbps RJ45 Ports, Fanless, 4.8Gbps switching capacity

Features:

24 10/100 Mbps Fast Ethernet Switch

• With the TXE100 Fast Ethernet Switch
• You can easily expand your business or home network by adding more computers and devices
• Each achieving speeds up to 200 Mbps per port in full-duplex mode

Easy of Use

• The TXE100 does not require any configuration or software, making installation simple and hassle-free
• With Auto-MDI/MDI-X support, there is no need for crossover Cables when you are connection to another switch or to a Computer
• Additionally, the TXE100 will automatically sense if the connected network devices are running at 10Mbps or 100Mbps
• And adjust accordingly
• Equipped with a comprehensive LED display, you can monitor the status and activity of every port at a glance

Specifications:

Product Code	TXE100
Model	TXE100
Hardware Features
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Interface	24 10/100Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX
Forwarding Mode	Store-and-Forward
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX	UTP category 5, 5e or above cable (maximum 100m
Power Supply	100-240VAC, 50/60H
LED	Power, Port Isolation, Link/Act
Fanless	Yes
Performance
Switching Capacity	4.8Gbps
Packet Filtering/Forwarding Rate	148,800 pps for 100M
	14,880 pps for 10M
MAC Address Table	8K
Certifcation	CE, FCC, RoHS
Environment
Operating Temperature	0°C - 40°C (32°F-104°F)
Storage Temperature	-40°C-70°C (-40°F-158°F)
Operating Humidity	10%-90% RH non-condensing
Storage Humidity	5%-90% RH non-condensing
