ANALOG TO DIGITAL AUDIO CONVERTER - AD010

Signal Inputs/Output

Input Audio: L/R Audio (Stereo)

Output Audio: Coaxial and Toslink Digital Audio Connector

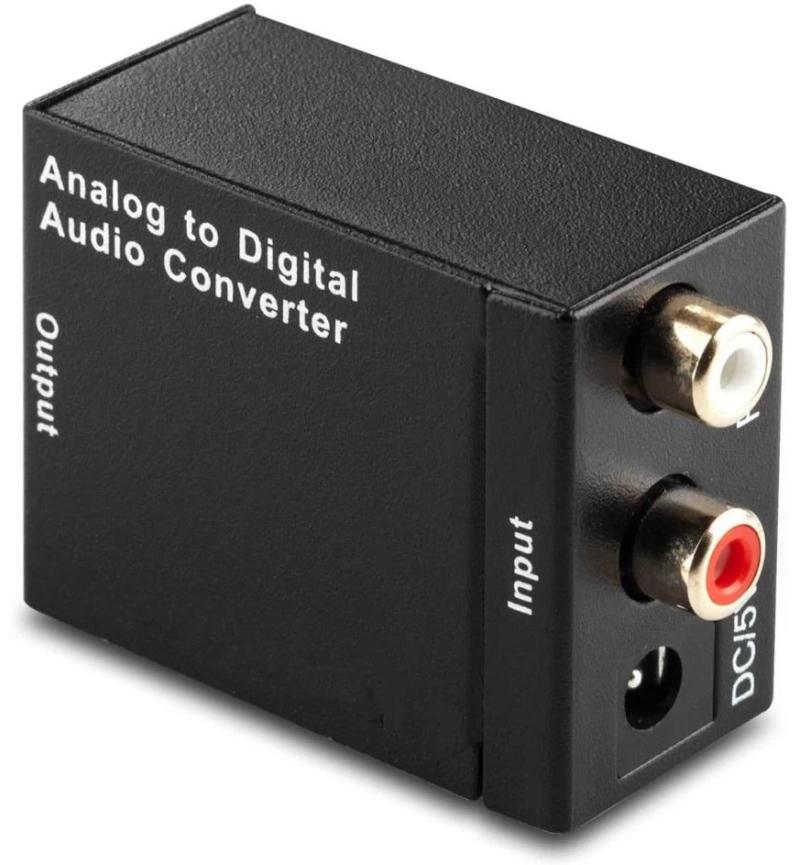

Input Audio Connector: 2XRCA(R/L) (Stereo)

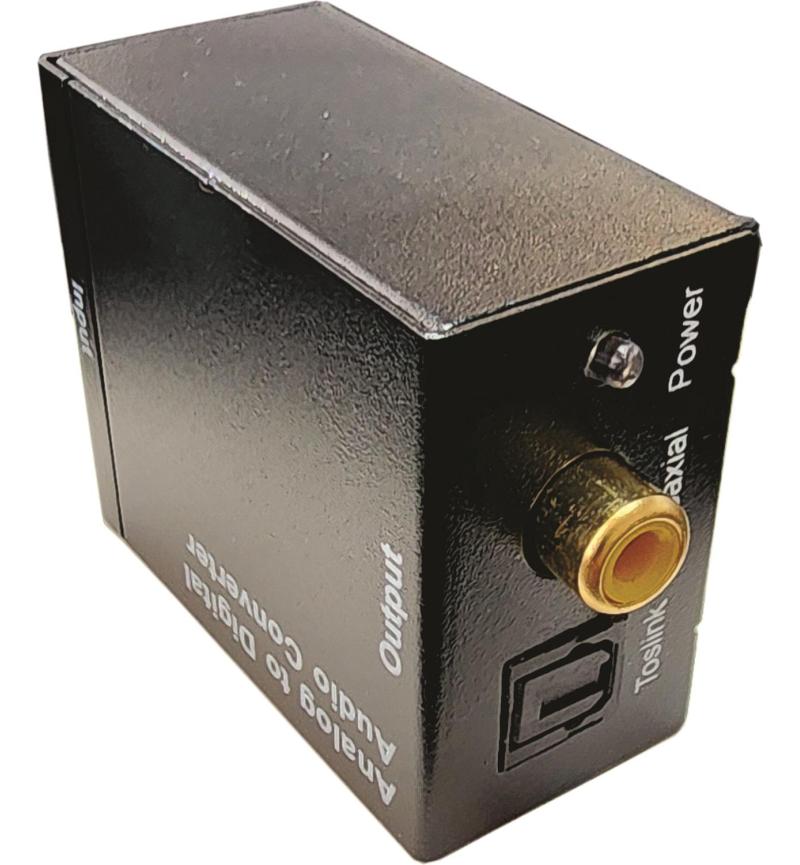

Output Audio Connector: Toslink1XRCA(Coaxial)

Sampling Rate:48KHz

Size(L-W-H):51X41X26MM

Environmental

Operating Temperature:0 to +70

Operating Humidity:10% to 85 % RH (no condensation)

Storage Temperature: -10 to +80

Storage Humidity:5% to 90 % RH (no condensation)

Power Requirement

External Power Supply: 5V DC@1A

Power Consumption:1 watt (max)

Converter Unit: FCC, CE, UL

Power Supply: UL, CE, FCC

Accessories Adapter

AC Power Adapter: US standard, UK standard and so on

User Manual: English Version

5.0 CONNECTION AND OPERATION

Before Installation, please make sure all Devices you wish to Connect have been turned off

Connect the Audio source Device to the Converter using appropriate L/R Cables

Connect the A/V Receivers or Amplifiers to the Converter using appropriate Toslink or Coaxial Cables

Insert the DC side of 5V Power Supply into the Converter and then Connect the AC side of the Power Supply into the wall outlet

Note: When Connected to the Toslink and Coaxial Cables at the same, the Product will give Toslink and Coaxial Output at same time

PACKAGE CONTENTS

Main unit (Analog to Digital Audio Converter)

5V/DC Power Supply

User’s Manual

Weight (Net):78g

Warranty

Limited Warranty:1 Year
