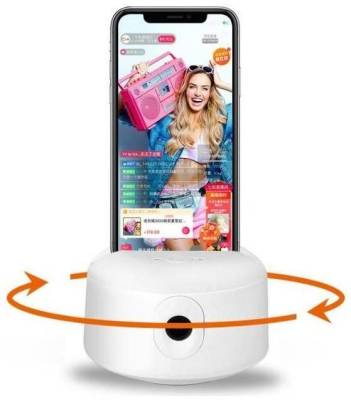

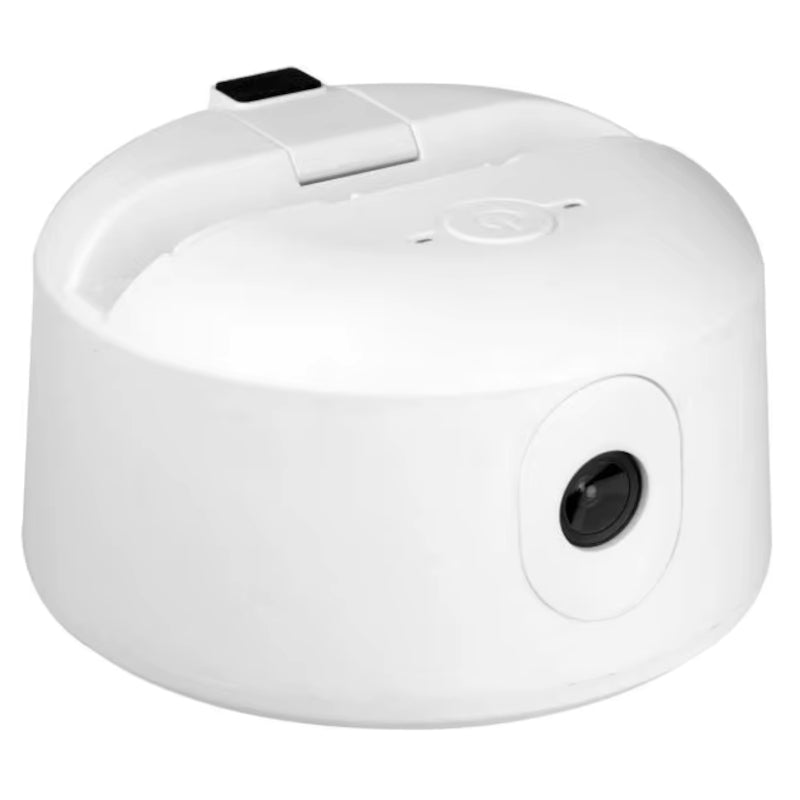

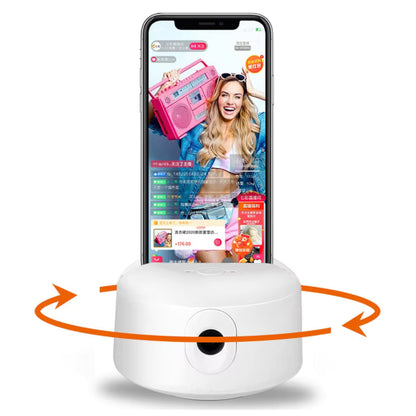

Microworld JS008 360 degree AL Tracking gimbal

Features:

Usage Scenario

• There are two scenario: one is put on the desk, the other is put on tripod
• There is no need for other settings if you to use it on desk
• If you need to use tripod, please put tripod into tripod base and turn the base to tight

Turn on /off

• This device has built in battery, we advise you to charge it for 6 hours before use it
• Open the mobile holder, put your mobile (tablet) to adjust the holder
• Hold the power button for 5 seconds, it will turn on, the indicator lamp will blink and the device will rotate one circle
• If you need to turn off, please hold the power button 5 seconds again

How to use

• Make sure the holder is tighten your mobile (tablet) before starting it, it will start tracking human face (body)
• The best distance to use is 1-5 meters

About indicator lamp

• There are 3 different mode of indicator lamp means different status of battery
• The RED indicator lamp is off means the battery is full
• The RED indicator lamp is blinking rapidly means battery low, need to charge the battery
• The RED indicator lamp is blinking slowly means under charging

Note

• Built - in battery inside, do not put it in high temperature (over 50°C) or humidity environment
• Use hand to rotate gimbal is not allowed
• It can only track one human face (body) it is not recommended to use it when there are two or more people
• Please charge the device in time when the indicator lamp is blinking red and make sure the adapter is 5V1A ( or 5V2A)
• To avoid the device working wrong

Specifications:

Specifications
Product Code	SMT001
Product Model	JS008
Load	800g
Net Weight	270g (include lithium-ion battery)
Product Size	118*67mm
Phone Size acceptable	<7.0"
Mechanical Angle	Horizontal 350°
Working Angle	6H
Power Supply Mode	USB+lithium-ion battery
Input Voltage	5V 1A
Compatible to Android & IOS Systems iOS	ios10.0
