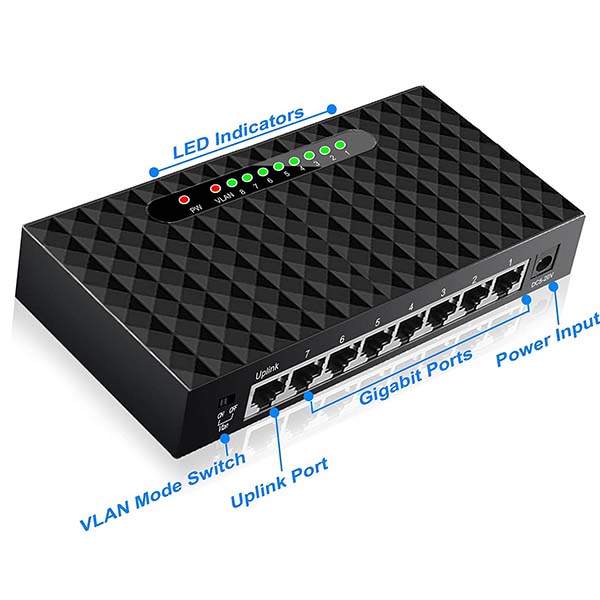

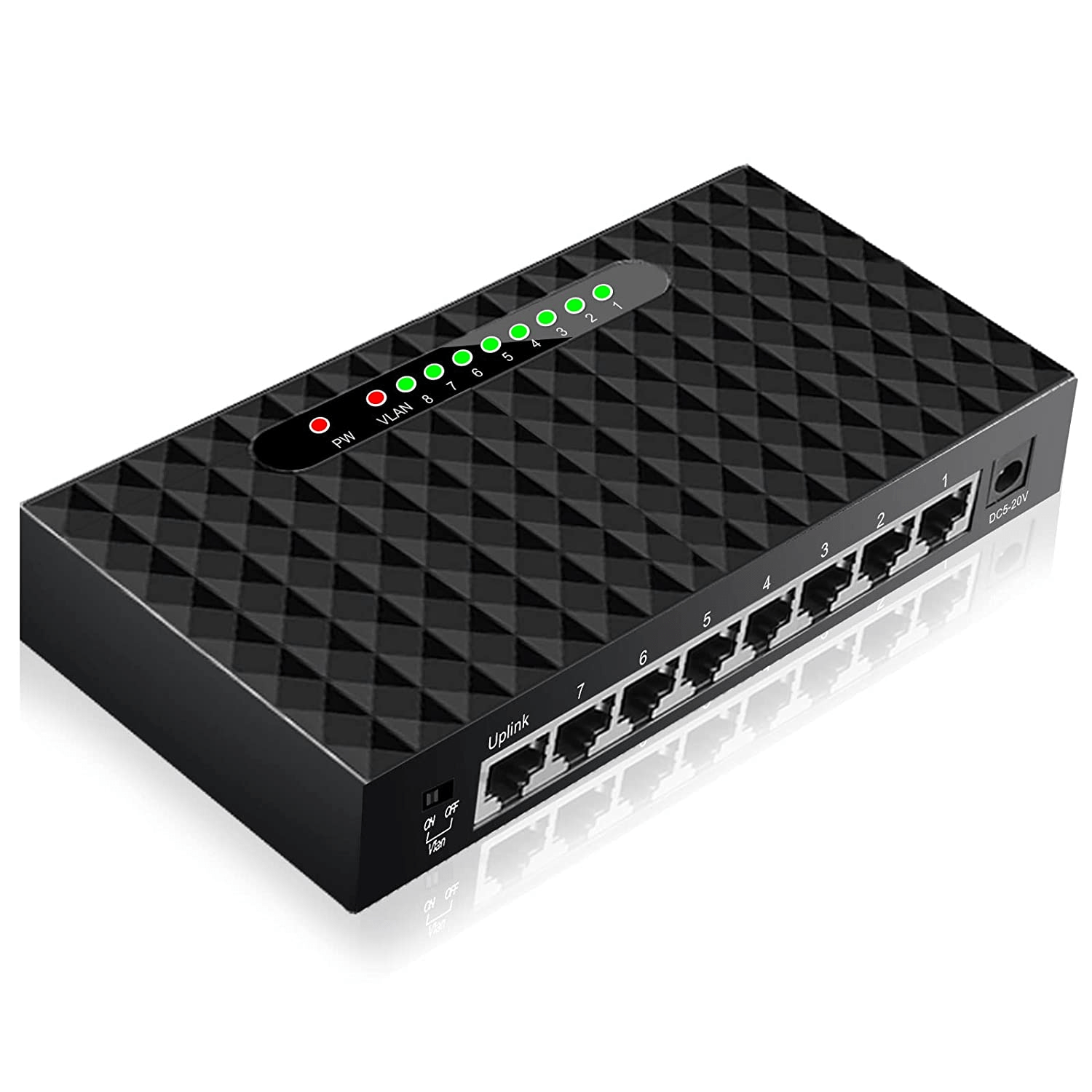

Microworld TXE099 8 Port Gigabit Switch

Features:

• Support DC 5-20V Input Range
• Build-in loop-back Switch; (VLAN)
• Innovative design, customized case and front face without screw hole
• And visual LED indication; LED

Specifications:

Product Code	TXE099
Model Number	TXE099

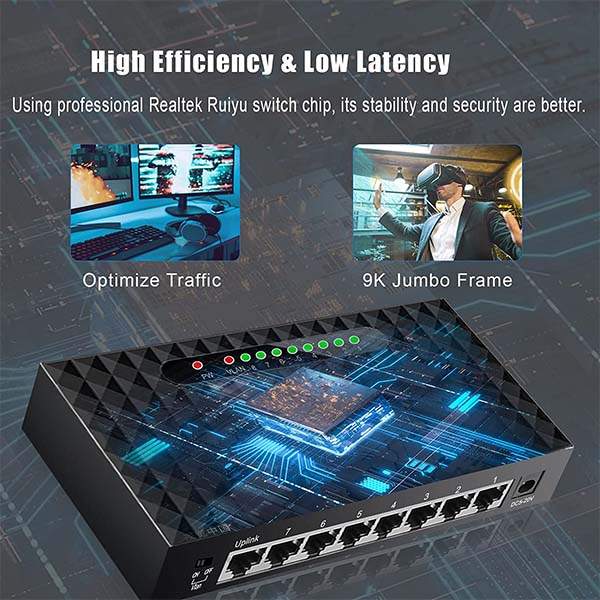

Chipset	RTL8370N
Port Number	8 port 10/100M/1000M Auto MDI-MDIX RJ45
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Network Media	10Base-T, Cat3 or above UTP, 10Base-Tx, Cat5 UTP
Data Rate	10/100M/1000M
Forwarding Rate	10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps, 1000Mbps/1488000pps
LED Indicator	10/100M/1000Mbps(Link/Act), Power, VLAN Indicator

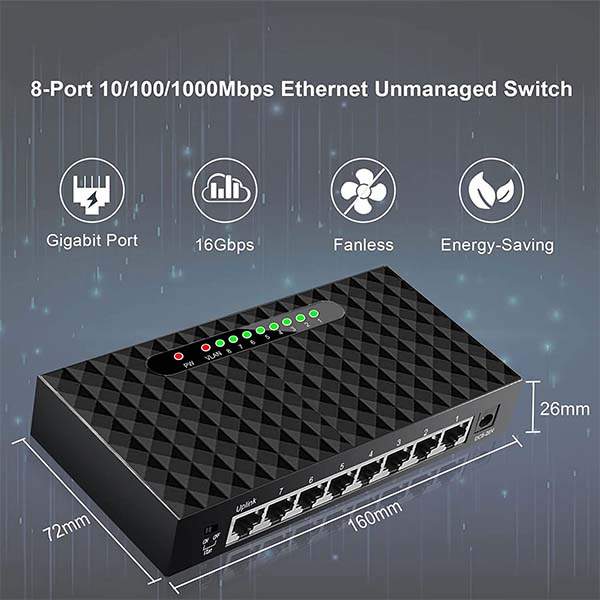

Dimension	160 x 72 x 24mm
Power Input	DC5V/1000mA
Power Consumption	Max4.5W
Environment	Operating Temperature: 0-50 Degrees Celcius
	Relative Humidity: 10%-90%(non-condensing)
	Storage Temperature: -40-70 Degrees Celcius
	Relative Humidity: 5%-90%(non-condensing)
	Other Function: VLAN switch
Chipset Feature	Single-chip 8-port gigabit non-blocking switch architecture
	Embedded 8-port 10/100/1000Base-T PHY
	Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
	Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
	Supports 9216-byte jumbo packet length forwarding at wire speed
	Supports Realtek Cable Test (RTCT) function
	Supports 64-entry ACL Rules
	Search keys support physical port, Layer2, Layer3, and Layer4 information
	Actions support mirror, redirect, dropping, priority adjustment, traffic policing, CVLAN decision
	And SVLAN assignment
	Supports 5 types of user defined ACL rule format for 64 ACL rules
	Optional per-port enable/disable of ACL function
	Optional setting of per-port action to take when ACL mismatch
	Supports IEEE 802.1Q VLAN
	Supports 4K VLANs and 32 Extra Enhanced VLANs
	Supports Un-tag definition in each VLAN
	Supports VLAN policing and VLAN forwarding decision
	Supports Port-based, Tag-based, and Protocol-based VLAN
	Up to 4 Protocol-based VLAN entries
	Supports per-port and per-VLAN egress VLAN tagging and un-tagging
	Supports IVL, SVL, and IVL/SVL
	Supports 8K-entry MAC address table with 4-way hash algorithm
	Up to 8K L2/L3 Filtering Database
	Supports Spanning Tree port behavior configuration
	IEEE 802.1w Rapid Spanning Tree
	IEEE 802.1s Multiple Spanning Tree with up to 16 Spanning Tree instances
	Supports IEEE 802.1x Access Control Protocol
	Port-Based Access Control
	MAC-Based Access Control
	Guest VLAN
	Supports Quality of Service (QoS)
	Supports per port Input Bandwidth Control
	Traffic classification based on IEEE 802.1p/Q priority definition, physical Port, IP DSCP field, ACL definition
	VLAN based priority, MAC based priority, and SVLAN based priority
	Eight Priority Queues per port
	Per queue flow control
	Min-Max Scheduling
	Strict Priority and Weighted Fair Queue (WFQ) to provide minimum bandwidth
	One leaky bucket to constrain the average packet rate of each queue
	Supports rate limiting (64 shared meters, with 8kpbs granulation)
	Supports RFC MIB Counter
	MIB-II (RFC 1213)
	Ethernet-Like MIB (RFC 3635)
	Interface Group MIB (RFC 2863)
	RMON (RFC 2819)
	Bridge MIB (RFC 1493)
	Bridge MIB Extension (RFC 2674)
	Supports Stacking VLAN and Port Isolation with 8 Enhanced Filtering Databases
	Supports IEEE 802.1ad Stacking VLAN
	Supports 64 SVLANs
	Supports 32 L2/IPv4 Multicast mappings to SVLAN
	Supports 4 IEEE 802.3ad Link aggregation port groups
	Supports OAM and EEE LLDP (Energy Efficient Ethernet Link Layer Discovery Protocol
	Supports Loop Detection
	Security Filtering
	Disable learning for each port
	Disable learning-table aging for each port
	Drop unknown DA for each port
	Broadcast/Multicast/Unknown DA storm control protects system from attack by hackers
	Supports Realtek Green Ethernet features
	Link-On Cable Length Power Saving
	Link-Down Power Saving
	Each port supports 3 parallel LED or scan LED outputs
	Supports EEPROM SMI Slave interface to access configuration register
Supports 16K-byte EEPROM space for configuration
Integrated 8051 microprocessor
Supports Flash Interface
25MHz crystal or 3.3V OSC input
LQFP 128-pin E-PAD package
