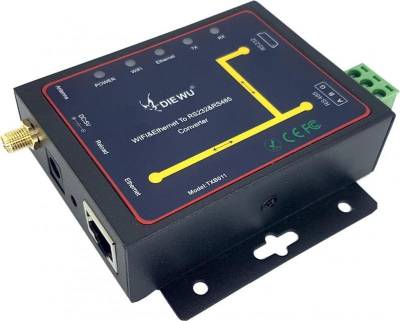

WIFI TO RS232/RS485 - TXB011

Product Specification

Model Number: TXB011

Chipset: Ralink,RT5350F

Port Number: 1 Port 10/100M Auto MDI-MDIX RJ45,1Port RS485,1Port RS232

Ethernet Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az

Network Media: 10Base-T, Cat3 or above UTP, 10Base-Tx, Cat5 UTP

Ethernet Data Rate: 10/100M

WIFI Standard: IEEE802.11.b/g/n

WIFI Data Rate: 11b:11Mbps, 11g:54Mbps, 11n:150Mbps

WIFI Mode: AP, Client

LED Indicator Power, WIFI, Ethernet, TX,RX

Baud Rate: 110bps - 115200bps

Operation Modes: TCP Server, TCP Client, UDP,VCOM

Dimension: 86 x 84 x 25mm

Power Input: DC5V

Power Consumption: Max1.5W

Environment

Operating Temperature: -10 C -55 C

Relative Humidity: 10%-90% (non-condensing)

Storage Temperature: -40 C -85C

Relative Humidity: 5%-90% (non-condensing)

Other function

Build load default key

Support P2P control

Two Com Port, Support RS232 and RS485 same time work
