SKU:B550M PRO-VDH WIFI

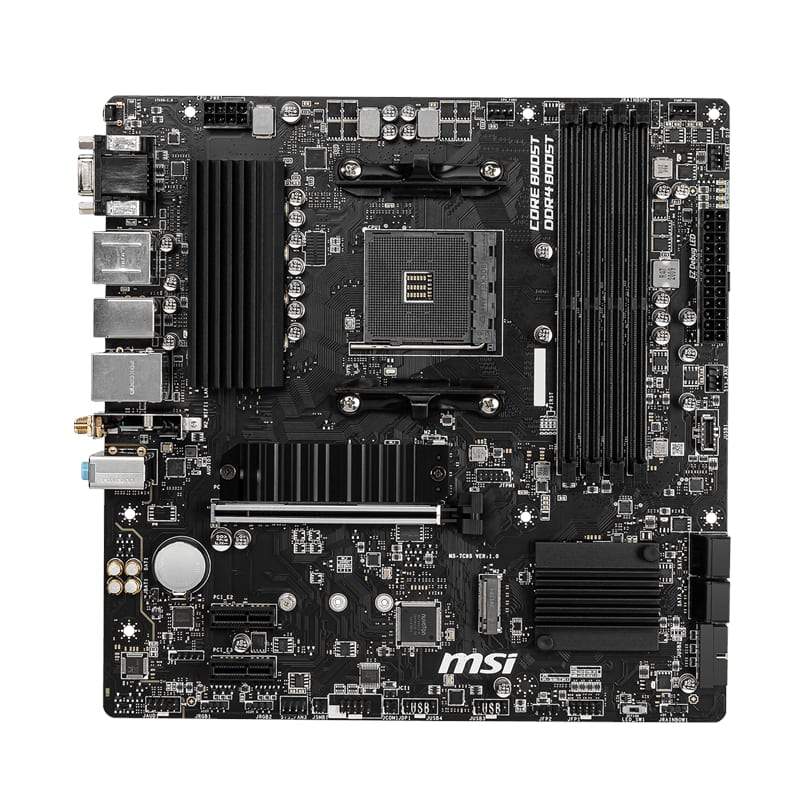

MSI B550M PRO-VDH WiFi 3rd Gen AMD Ryzen Socket AM4 mATX Motherboard
Features:
PRO series
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
M.2 SHIELD FROZR
Worlds fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
With MSI M.2 Shield FROZR
CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
Specifications:
| Product Code | 4719072733698
|
| Qucik spec | |
| Socket | AMD Socket AM4 |
| CPU (Max Support) | Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 Chipset |
| DDR4 Memory | 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400 + Mhz by JEDEC and A-XMP OC MODE |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 1 |
| PCI-E Gen | Gen4 / Gen3 |
| PCI-E x1 | 2 |
| SATAIII | 4 |
| M.2 Slot | 2 |
| RAID | 0/1/10 |
| TPM (header) | 1 |
| LAN | 1x Realtek RTL8111HN Gigabit LAN |
| WiFi & Bluetooth | Y |
| USB 3.2 ports (Front) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
| USB 3.2 ports (Rear) | 4(Gen 1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2 |
| Serial ports(Front) | 1 |
| Audio ports (Rear) | Realtek ALC892/ALC897 Codec |
| DisplayPort | 1 |
| VGA | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | MATX |
| Operating System | Support for Windows 10 64-bit |
| Detailed Spec | |
| CPU | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB |
| Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
| Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE | |
| 1DPC 1R max speed 4400 MHZ | |
| 1DPC 2R max speed 3733 MHZ | |
| 2DPC 1R max speed 3866 MHZ | |
| 2DPC 2R max speed 3466 MHZ | |
| Dual channel memory architecture | |
| Supports non-ECC UDIMM memory | |
| Supports ECC UDIMM memory | |
| Supports un-buffered memory | |
| Expansion Slot | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) |
| 2x PCIe 3.0 x1 slots | |
| 1. The supported specification depends on installed processor. | |
| Onboard Graphics | 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz |
| 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz | |
| 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz | |
| Maximum shared memory of 16 GB | |
| 1. Available for the processor with integrated graphics. | |
| 2. Graphics specifications may vary depending on the CPU installed. | |
| Storage | AMD B550 Chipset |
| 4x SATA 6Gb/s ports | |
| 2x M.2 slots (Key M) | |
| M2_1 slot (from AMD Processor) | |
| Supports PCIe 4.0/ 3.0 x4 | |
| Supports SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280 storage devices | |
| M2_2 slot (from AMD B550 chipset) | |
| Supports PCIe 3.0x4 | |
| Supports 2242/ 2260/ 2280 storage devices | |
| 1. The supported specification depends on installed processor. | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | AMD B550 Chipset |
| 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) | |
| 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | |
| AMD Processor | |
| 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel | |
| Audio | Realtek ALC892/ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| LAN | 1x Realtek 8111HN Gigabit LAN controller |
| Wireless LAN & Bluetooth | Intel Dual Band Wireless-AC 3168 |
| Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. | |
| Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2 | |
| Internal connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 4x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 1 5Gbps Type-C port | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 3x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Serial port connector | |
| 1x Chassis Intrusion connector | |
| 2x 4-pin RGB LED connectors | |
| 2x 3-pin RAINBOW LED connectors | |
| 1xTPM module connector | |
| 1x Clear CMOS jumper | |
| Back panel ports | 1. VGA |
| 2. USB 3.2 Gen 1 5Gbps Type-A | |
| 3. Keyboard / Mouse | |
| 4. LAN | |
| 5. Flash BIOS Button | |
| 6. DisplayPort | |
| 7. HDMI | |
| 8. USB 2.0 | |
| 9. USB 3.2 Gen 1 5Gbps Type-A | |
| 10. Wi-Fi Antenna connectors | |
| 11. 3x Audio jacks | |
| Dimensions | Micro-ATX Form Factor |
| 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) | |
| MOUNTING | 8 mounting holes |
| Box content | 1. MSI does not guarantee the risks or damages caused by changing the cover. |
| 2. These pictures are for reference only and may vary without notice. | |
