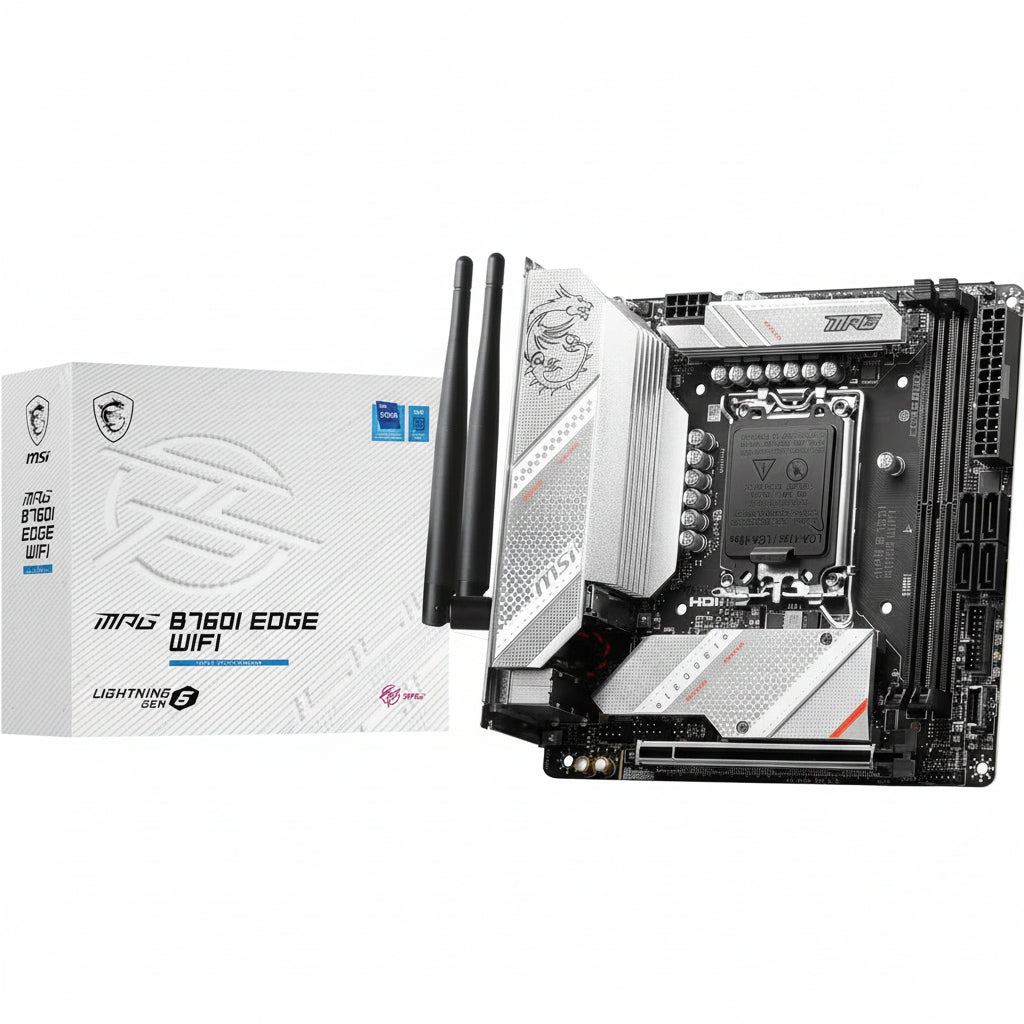

• Front view of the MSI MPG B760I EDGE WIFI Mini-ITX motherboard.

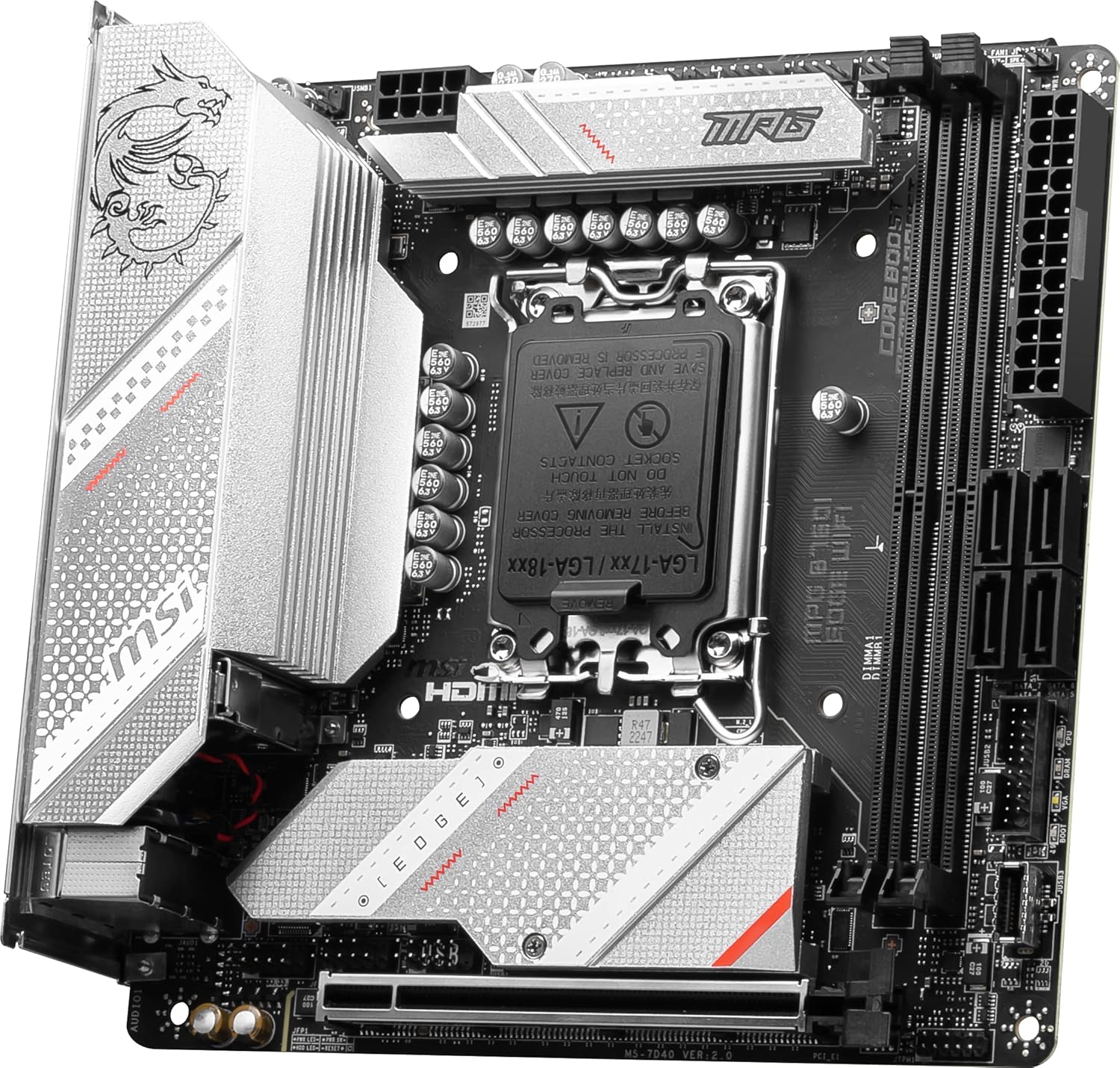

  • Close-up of the LGA 1700 socket and compact VRM heatsink design.

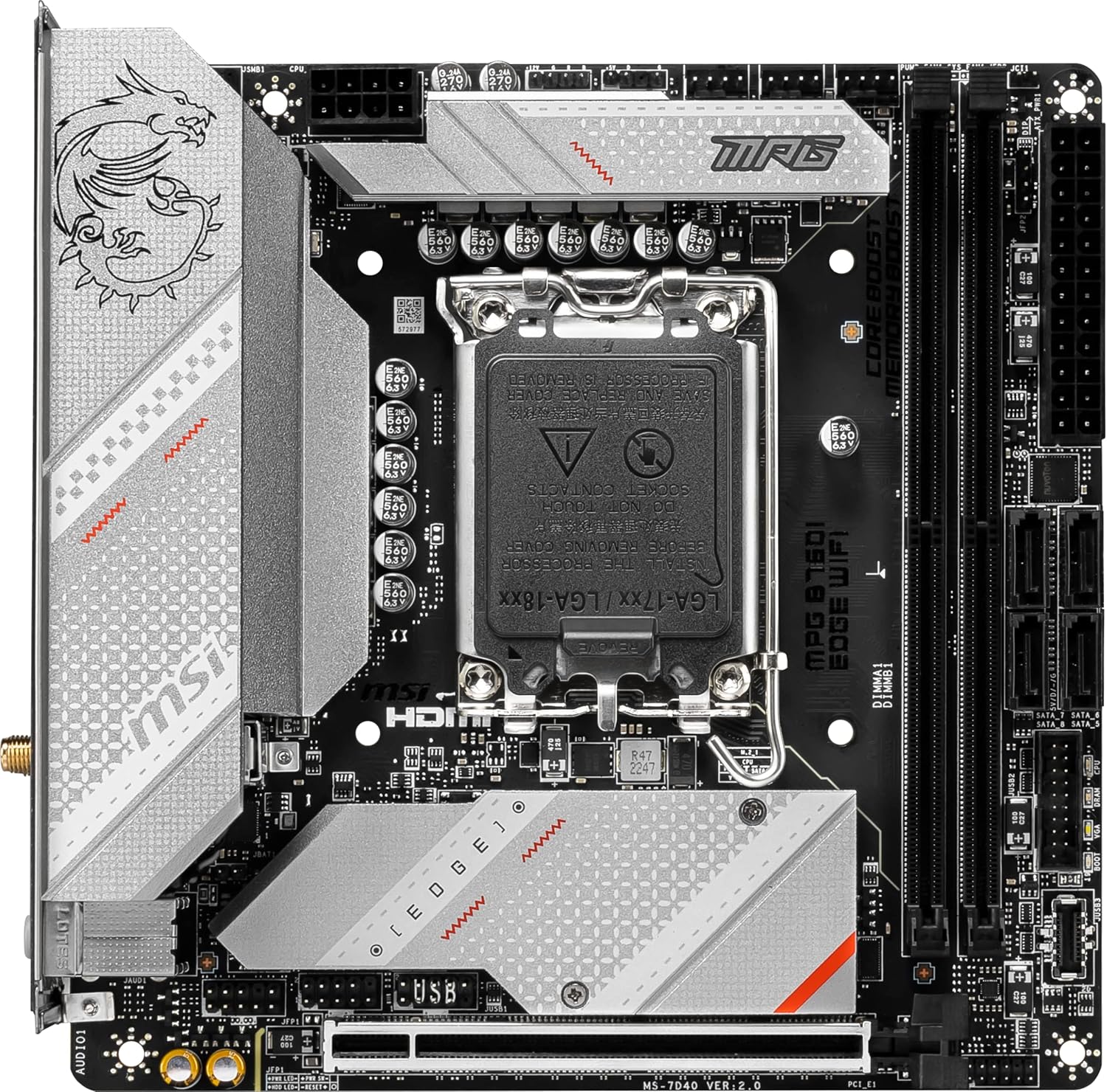

  • Top-down view showing two DDR5 DIMM slots and the PCIe 5.0 x16 slot.

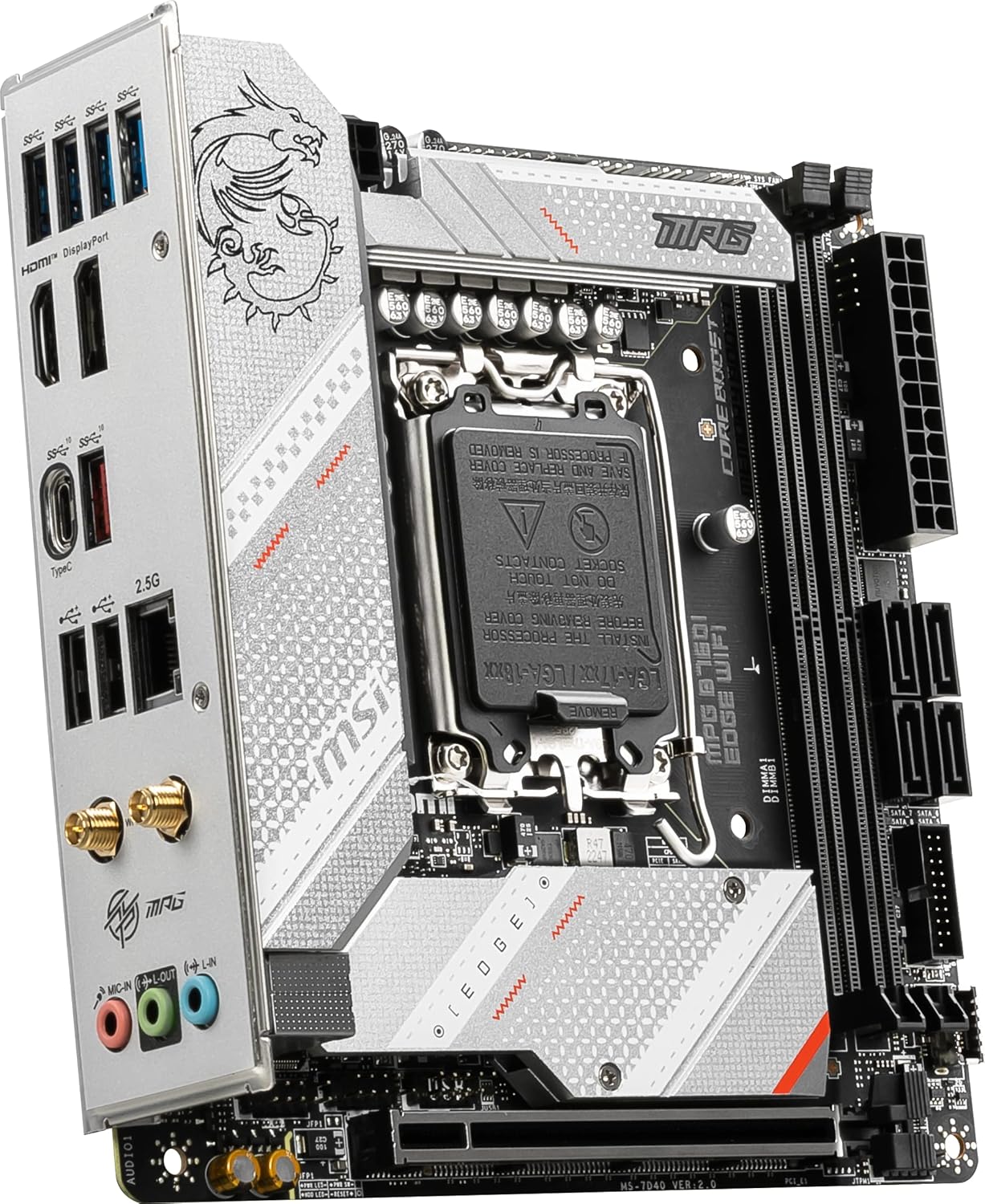

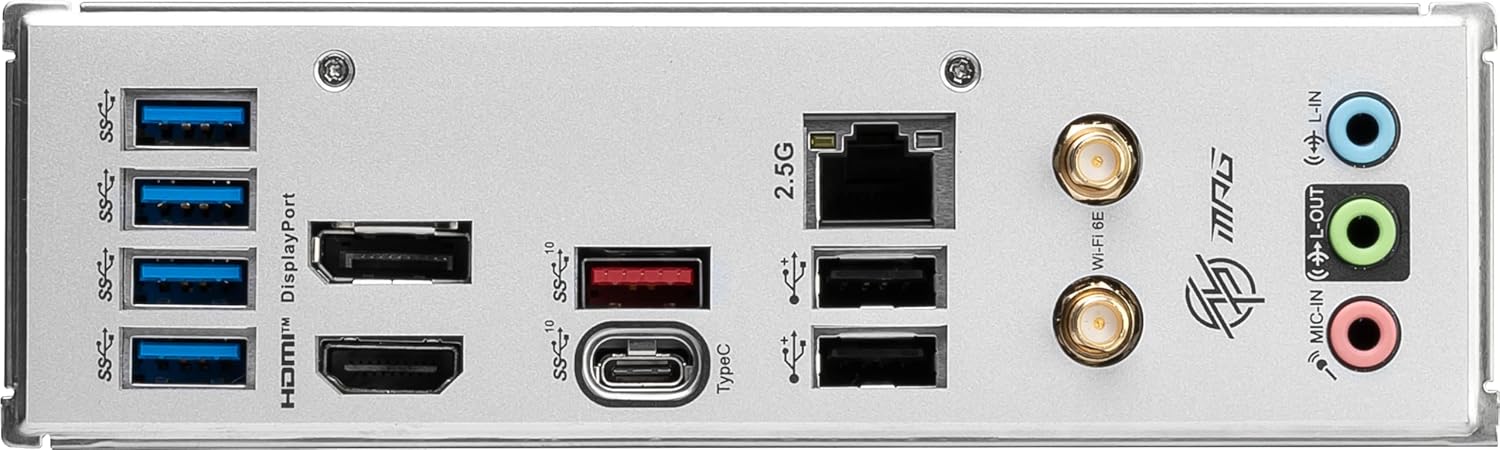

  • The motherboard's rear I/O panel with Wi-Fi antenna connectors and USB ports.
  • Close-up detail of the single M.2 slot with its thermal shield.
  • Image showing the direct 8+1+1 phase power delivery components.
  • Side profile illustrating the 2.5G LAN port and optical S/PDIF connector.
1 7

MSI MPG B760I EDGE WIFI Mini-ITX Motherboard, LGA 1700, DDR5, PCIe 5.0, Wi-Fi 6E

MSI MPG B760I EDGE WIFI Mini-ITX Motherboard, LGA 1700, DDR5, PCIe 5.0, Wi-Fi 6E

MSI

R 4,590.00
R 4,590.00
Taxes included. Shipping calculated at checkout.

Online Only

B760I EDGE WIFI

  • Model: MSI MPG B760I EDGE WIFI
  • CPU socket: LGA 1700
  • Compatible processors: 12th, 13th, and 14th Gen Intel Core, Pentium Gold, Celeron
  • Chipset: Intel B760
  • Memory: 2x DDR5 DIMM slots, supports up to 128 GB, 7200+ MHz (OC)
  • Expansion slots: 1x PCIe 5.0 x16
  • Storage: 1x M.2 slot (PCIe 4.0 x4), 4x SATA 6Gb/s ports
  • Networking: 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
  • Rear I/O: USB 3.2 Gen 2 Type-A and Type-C, USB 2.0
  • Video outputs: 1x HDMI, 1x DisplayPort
  • Audio: 7.1 Channel HD Audio with optical S/PDIF
  • Power design: Direct 8+1+1 phase VRM
  • Form factor: Mini-ITX (17.0 cm x 17.0 cm)

The MSI MPG B760I EDGE WIFI motherboard is for users building a compact Mini-ITX PC with 12th to 14th Gen Intel processors who require DDR5 memory support, PCIe 5.0 graphics capability, and integrated Wi-Fi 6E in a small form factor.
