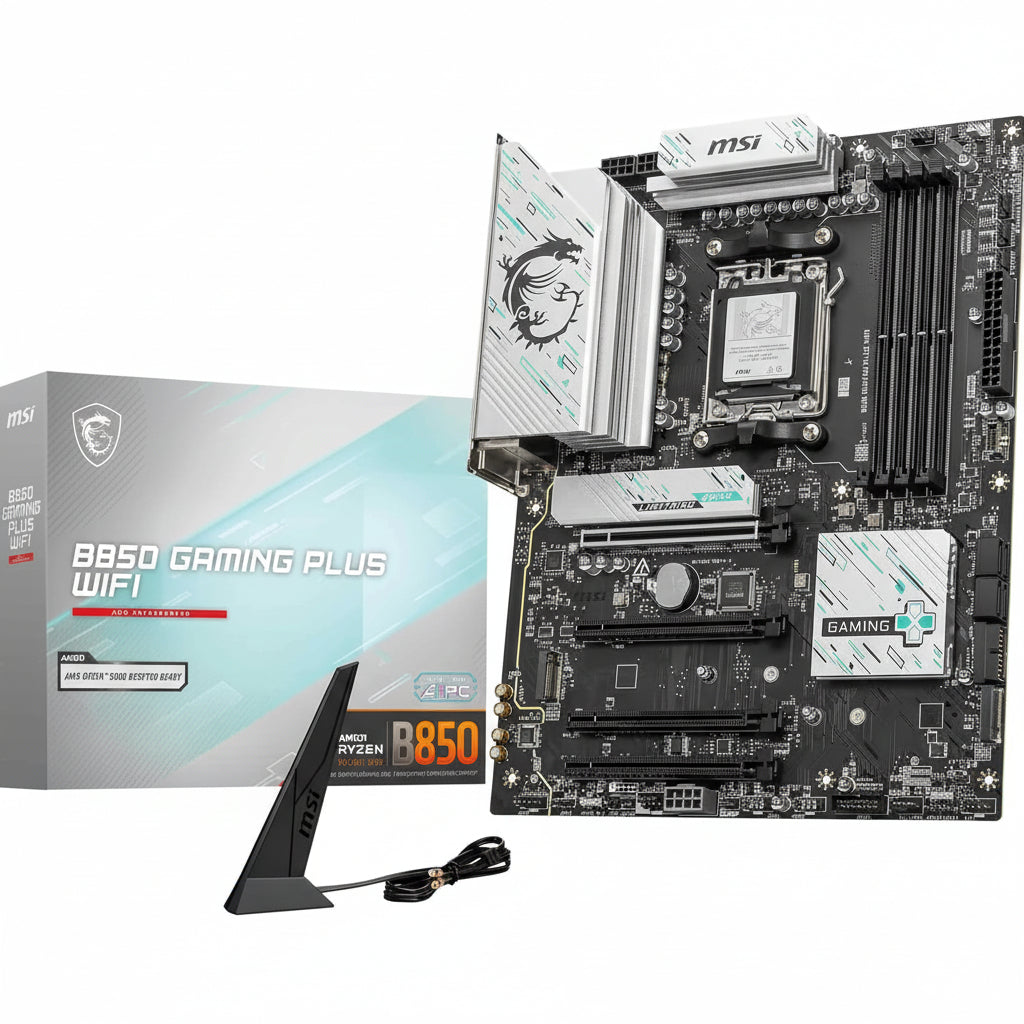

• Front view of the MSI B850 GAMING PLUS WIFI V1 ATX motherboard.

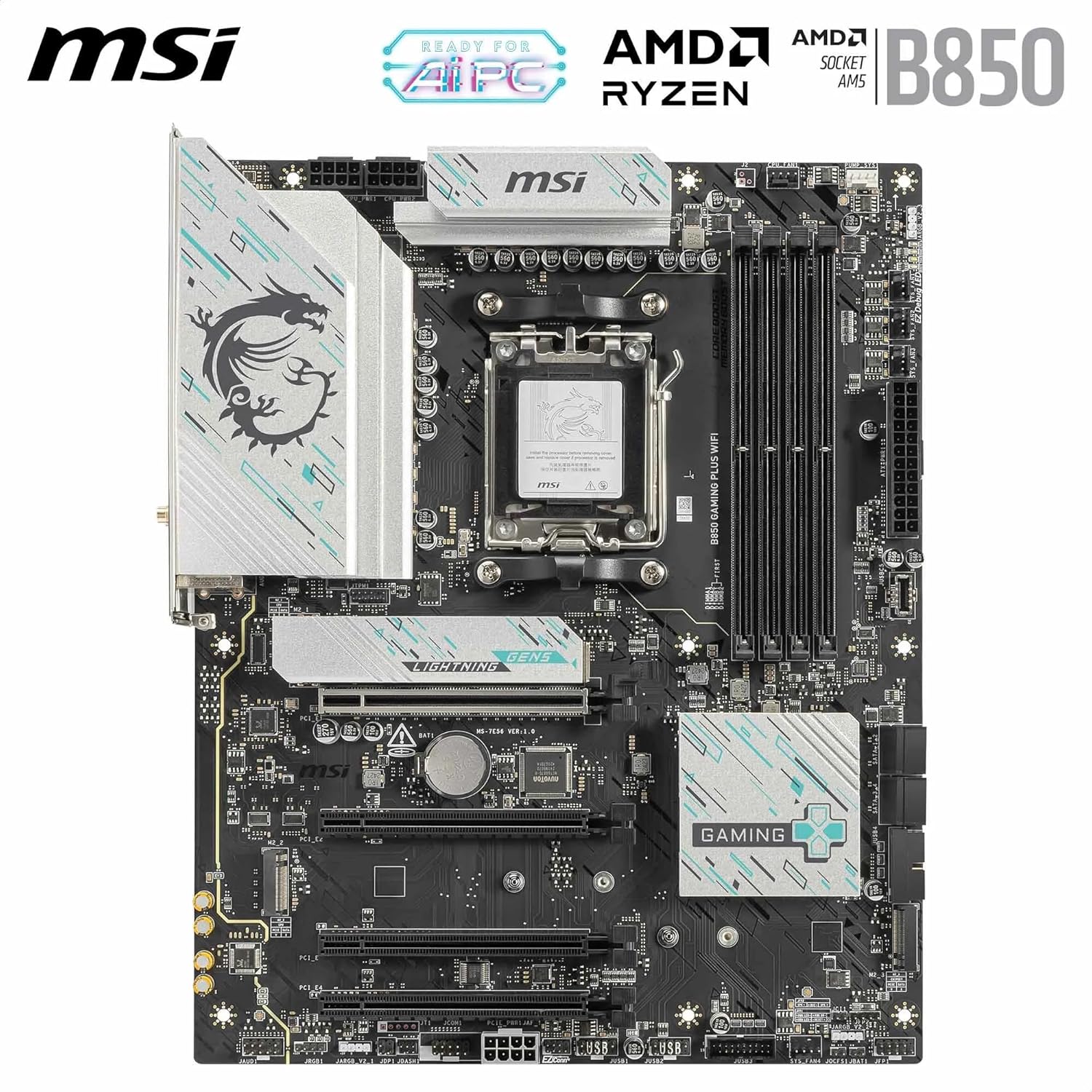

  • Close-up of the AM5 socket and extended VRM heatsink with 12-phase power design.

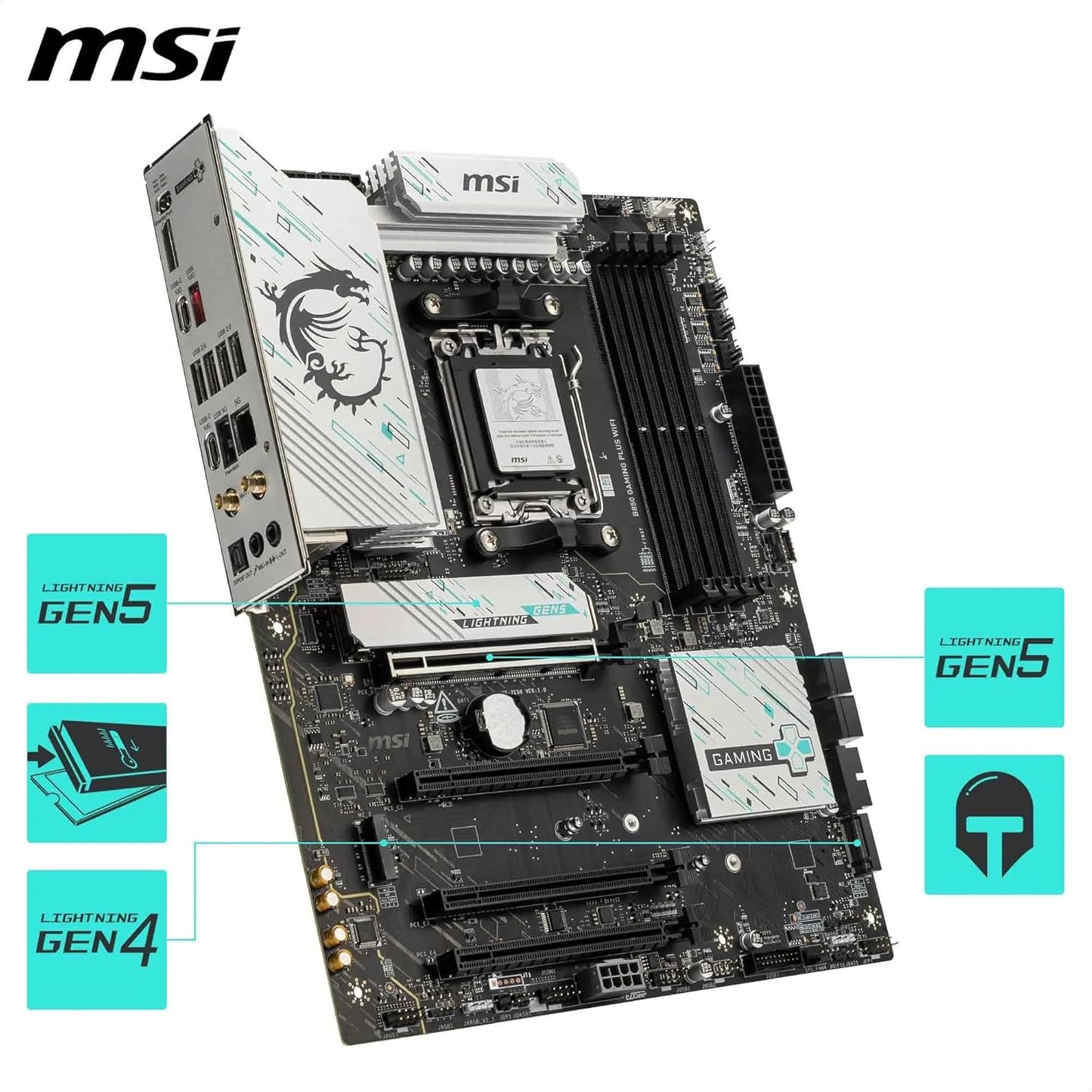

  • Top-down view showing four SMT DDR5 DIMM slots and PCIe 5.0 x16 Steel Armor slot.

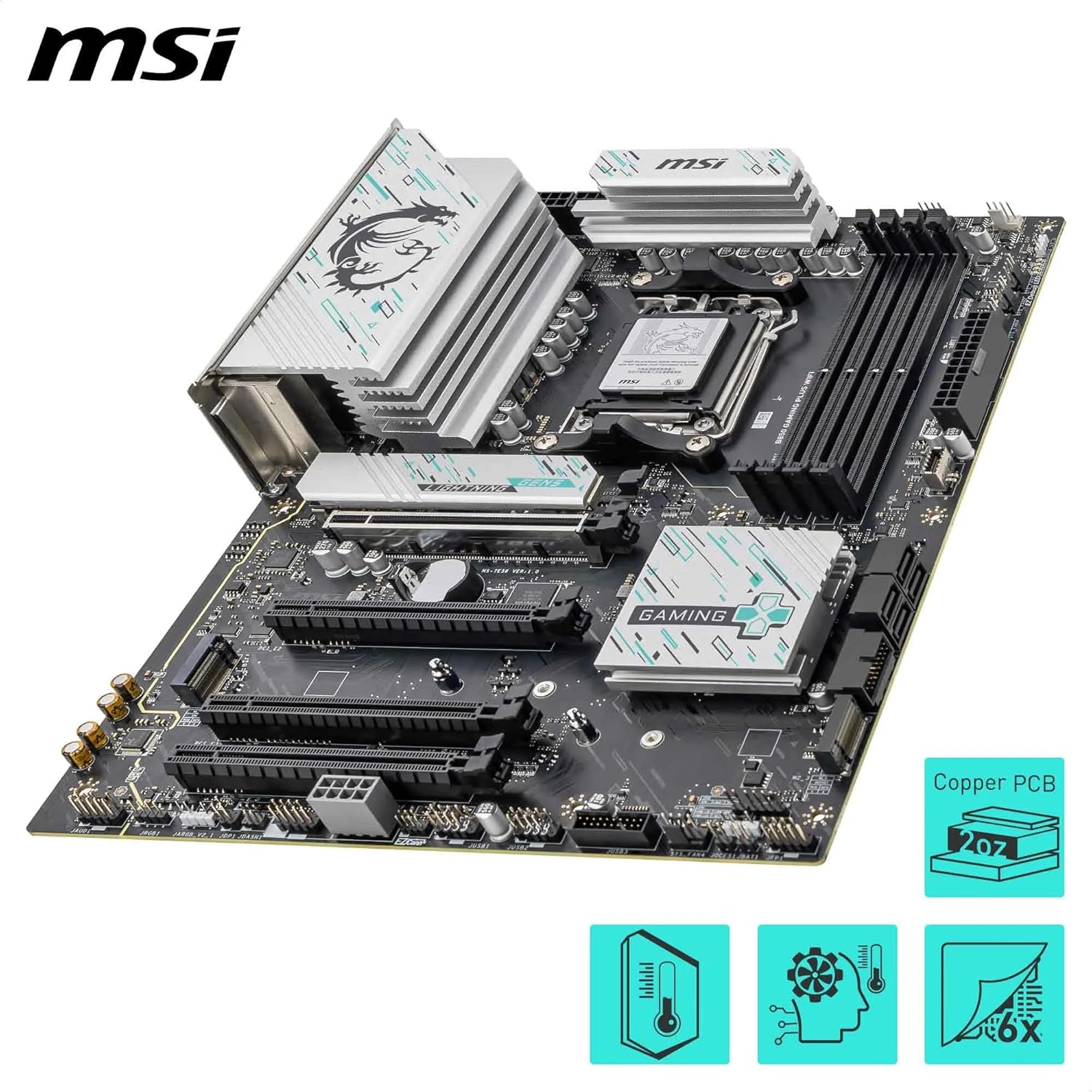

  • The motherboard's rear I/O panel with Wi-Fi 7 antenna connectors and USB Type-C.

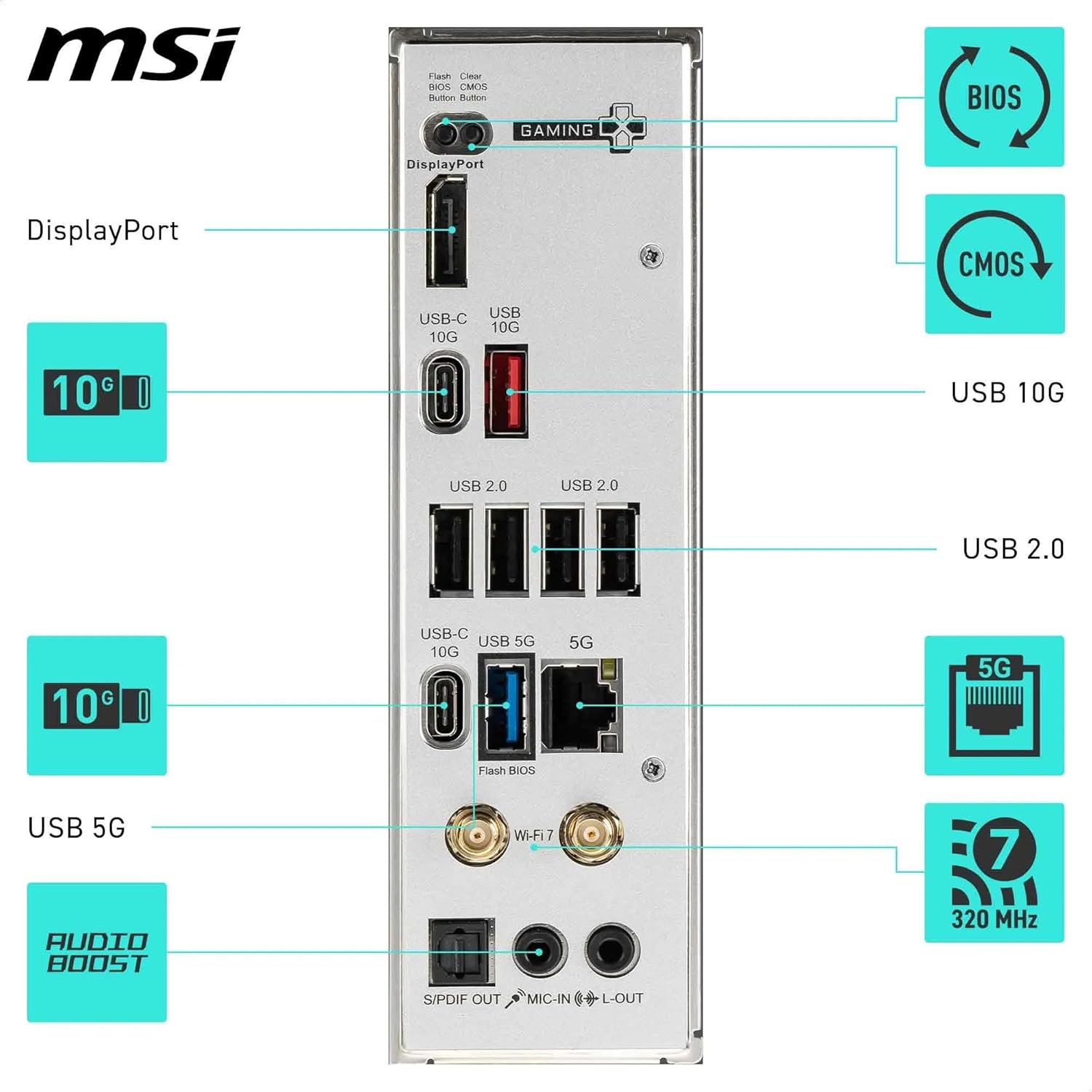

  • Close-up detail of the M.2 Gen5 slot with EZ M.2 Shield Frozr II thermal solution.

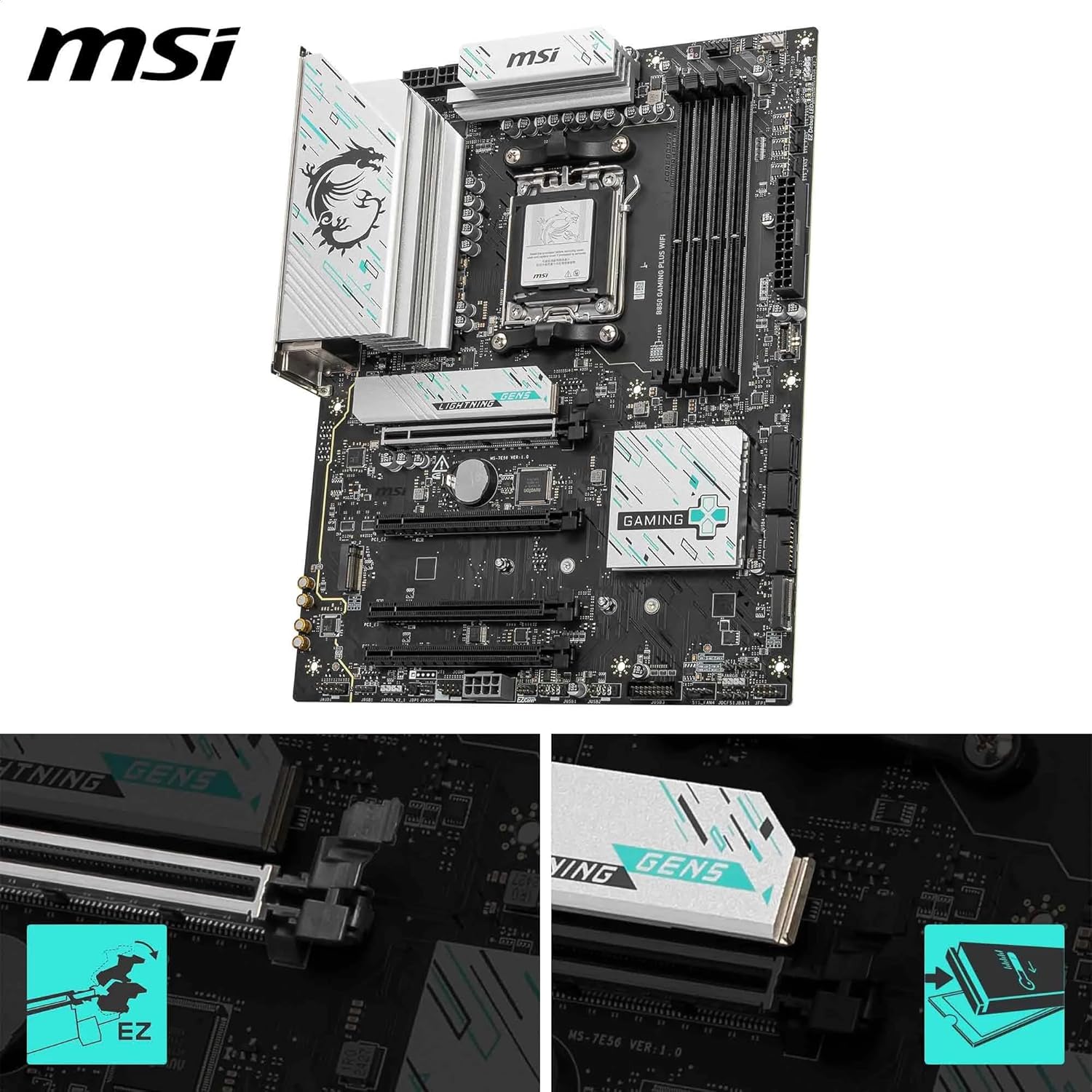

  • Image showing the 5 Gbps LAN port and Audio Boost audio circuitry.

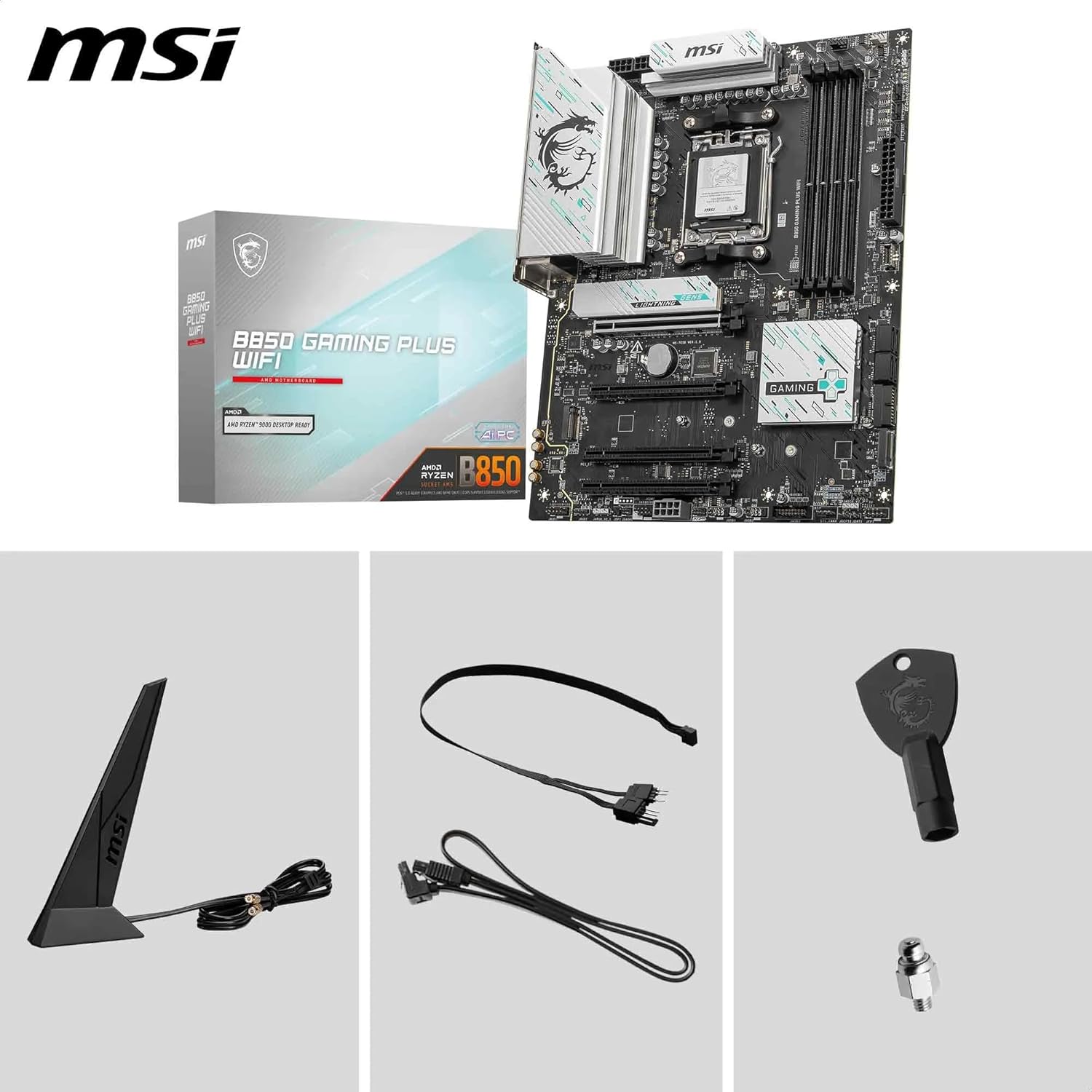

  • Side profile illustrating the chipset heatsink and additional M.2 slots.
1 7

MSI B850 GAMING PLUS WIFI V1 ATX Motherboard, AM5, DDR5, PCIe 5.0, Wi-Fi 7

MSI B850 GAMING PLUS WIFI V1 ATX Motherboard, AM5, DDR5, PCIe 5.0, Wi-Fi 7

MSI

R 5,180.00
R 5,180.00
Taxes included. Shipping calculated at checkout.

Online Only

B850 GAMING PLUS WIFI

  • Model: MSI B850 GAMING PLUS WIFI V1
  • CPU socket: Socket AM5
  • Compatible processors: AMD Ryzen 9000, 8000, and 7000 Series
  • Chipset: AMD B850
  • Memory: 4x DDR5 DIMM slots (SMT), supports 8200+ MT/s (OC, 1DPC 1R)
  • Expansion slots: 1x PCIe 5.0 x16 with Steel Armor, 1x PCIe 4.0 x16
  • Storage: 1x M.2 Gen5 x4 (128 Gbps), 1x M.2 Gen4 x4 (64 Gbps), 1x M.2 Gen4 x2 (32 Gbps), 4x SATA 6Gb/s ports
  • Networking: 5 Gbps LAN, Wi-Fi 7, Bluetooth 5.4
  • Power design: 12-phase Duet Rail Power System (P-PAK) VRM with Core Boost
  • Cooling: Extended VRM heatsink, 7W/mK MOSFET thermal pads, EZ M.2 Shield Frozr II
  • Rear I/O: USB 10 Gbps Type-C, USB 3.2 Gen 2, USB 2.0
  • Audio: 7.1 Channel HD Audio with Audio Boost
  • Fan headers: Combo-fan header for pump/system (3A)
  • Form factor: ATX

The MSI B850 GAMING PLUS WIFI motherboard is for PC builders using AMD Ryzen 9000/8000/7000 series processors on the AM5 platform who require high-speed DDR5 memory overclocking, PCIe 5.0 graphics support, Gen5 M.2 storage, and next-generation Wi-Fi 7 connectivity.
