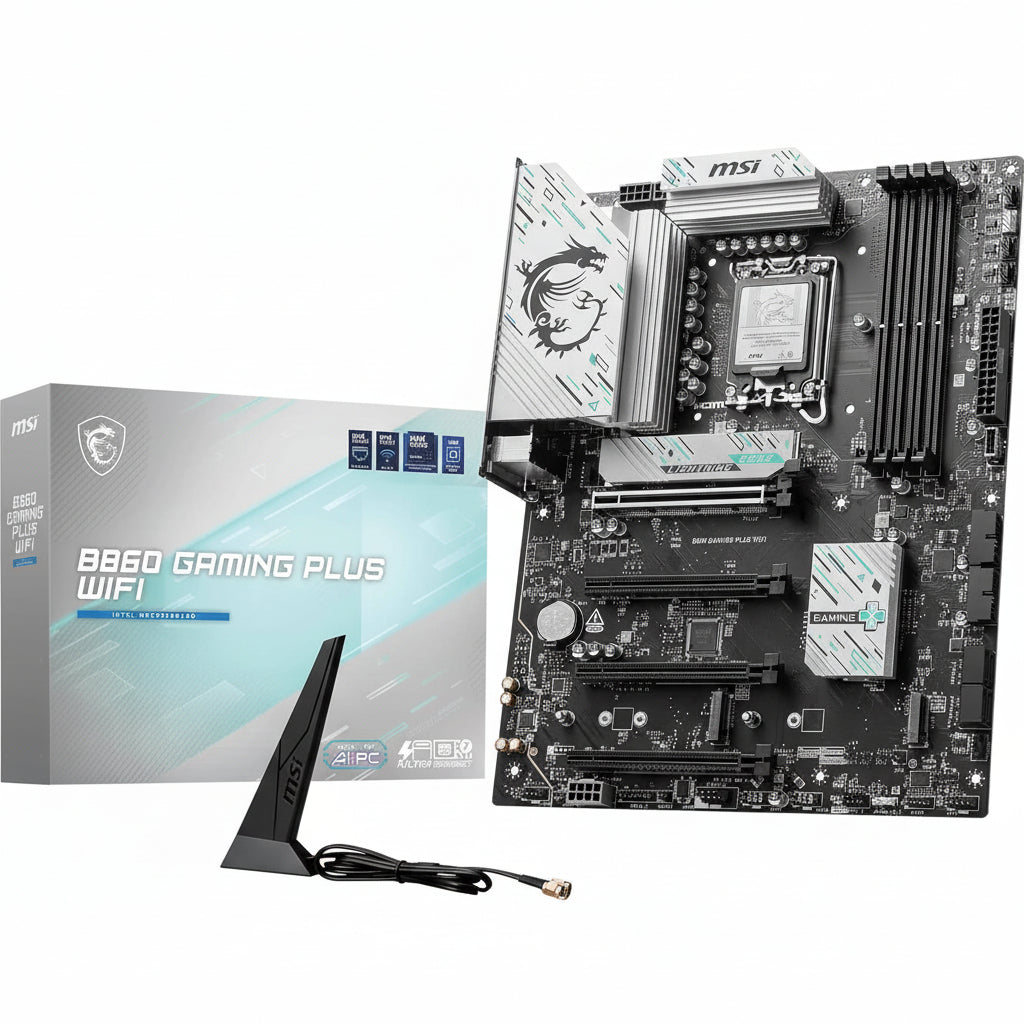

• Model: MSI B860 GAMING PLUS WIFI
• CPU socket: Socket LGA 1851
• Compatible processors: Intel Core Ultra Processors (Series 2)
• Chipset: Intel B860

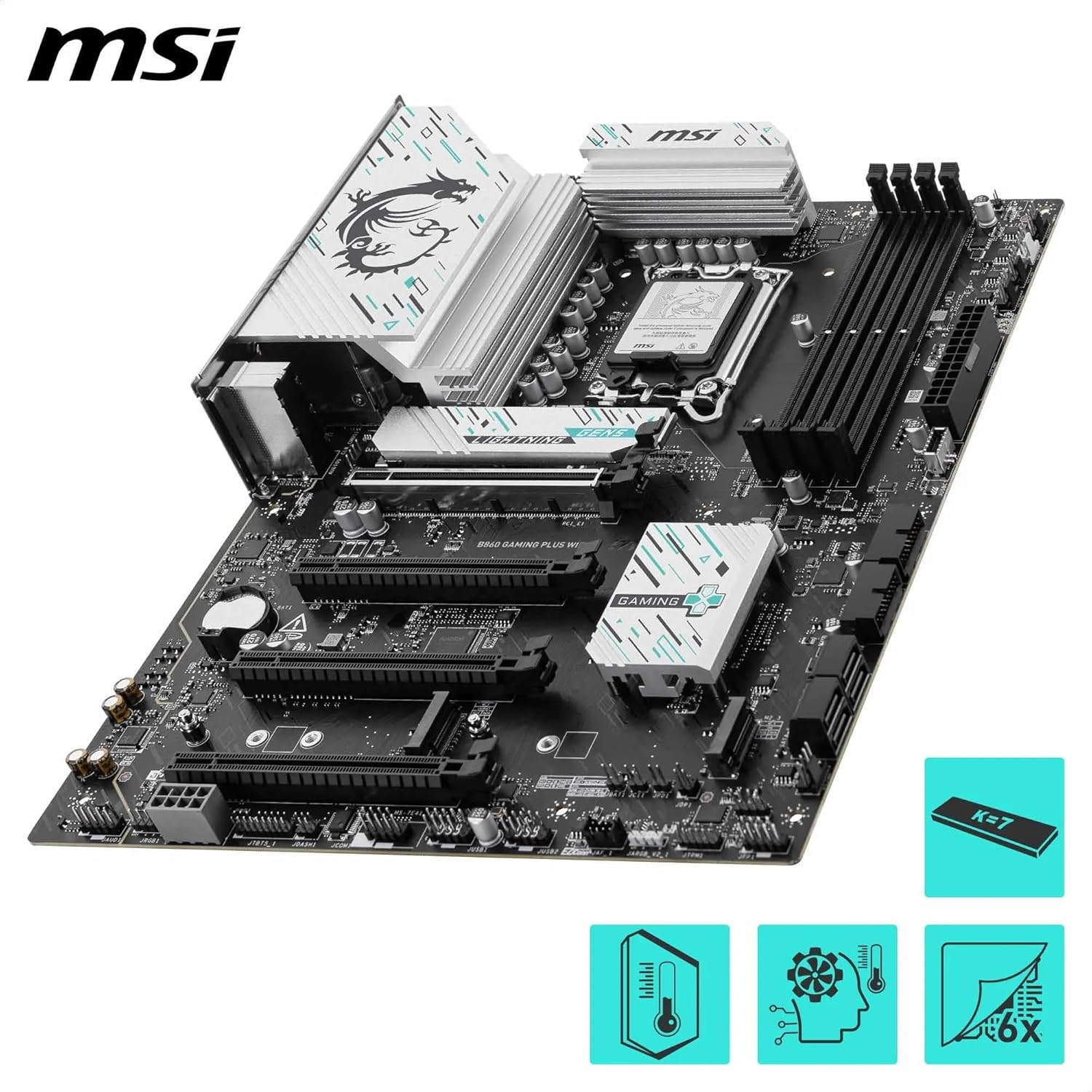

• Memory: 4x DDR5 DIMM SMT slots, supports up to 256 GB, 8800+ MT/s (OC, 1DPC 1R)

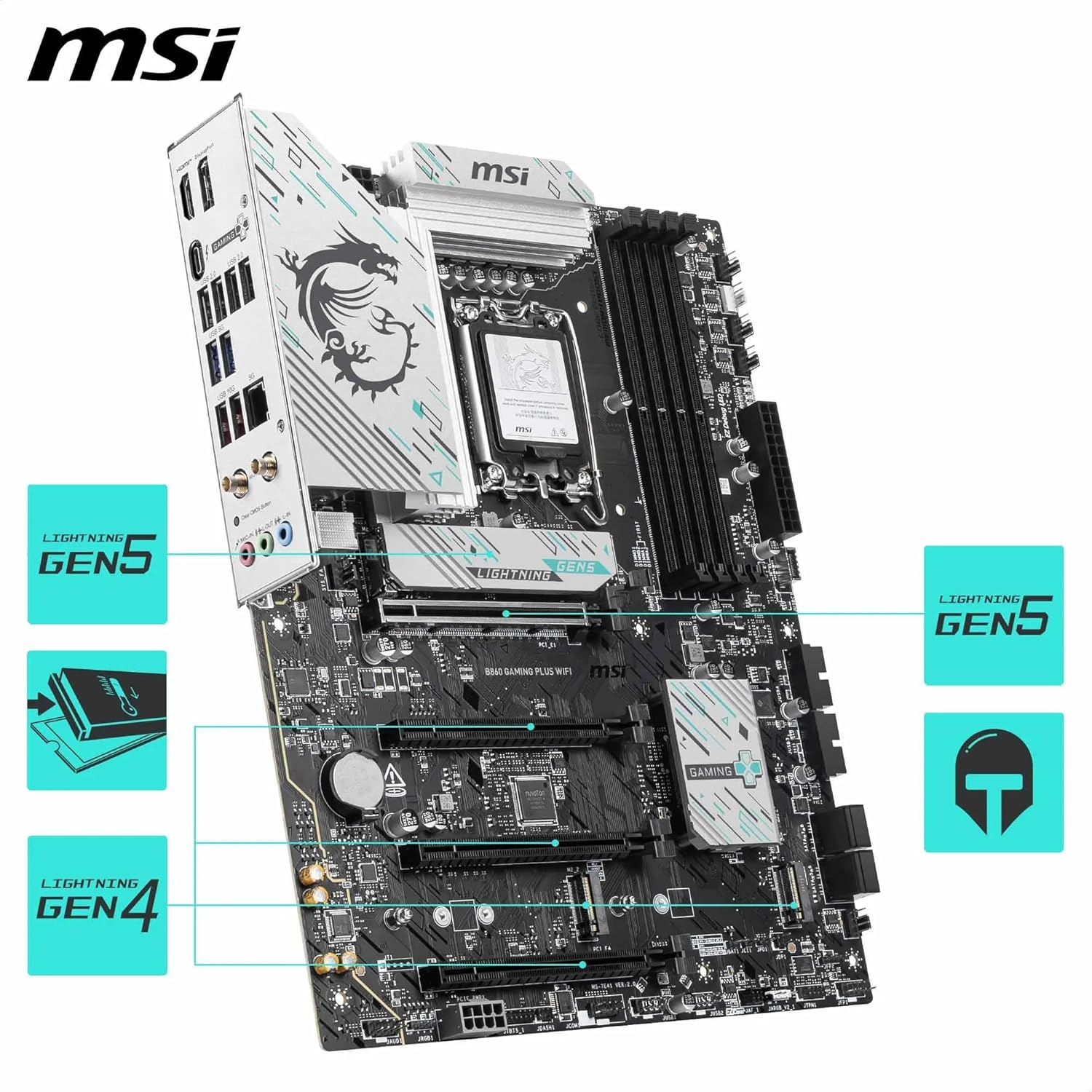

• Expansion slots: 1x PCIe 5.0 x16 with Steel Armor (128 GB/s)

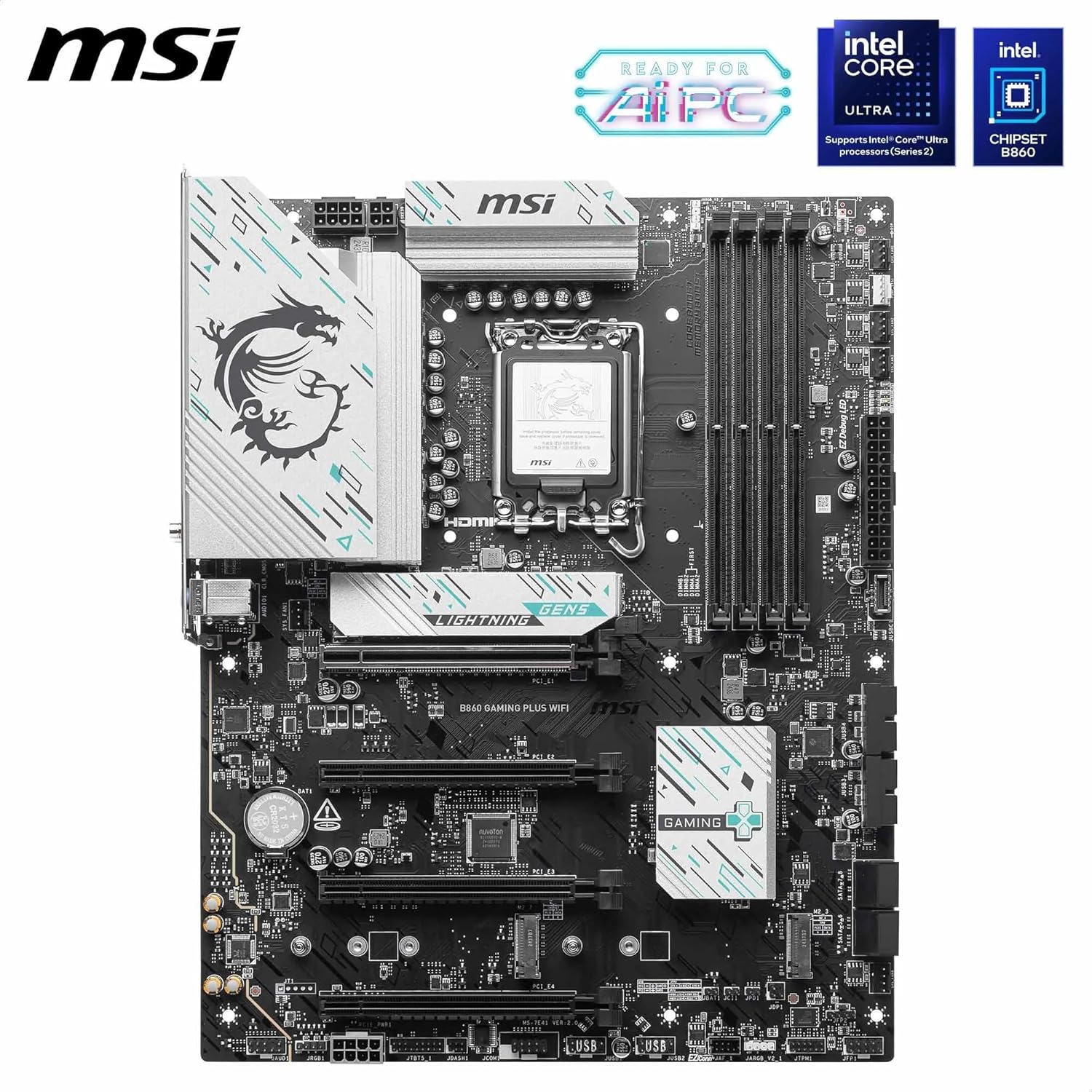

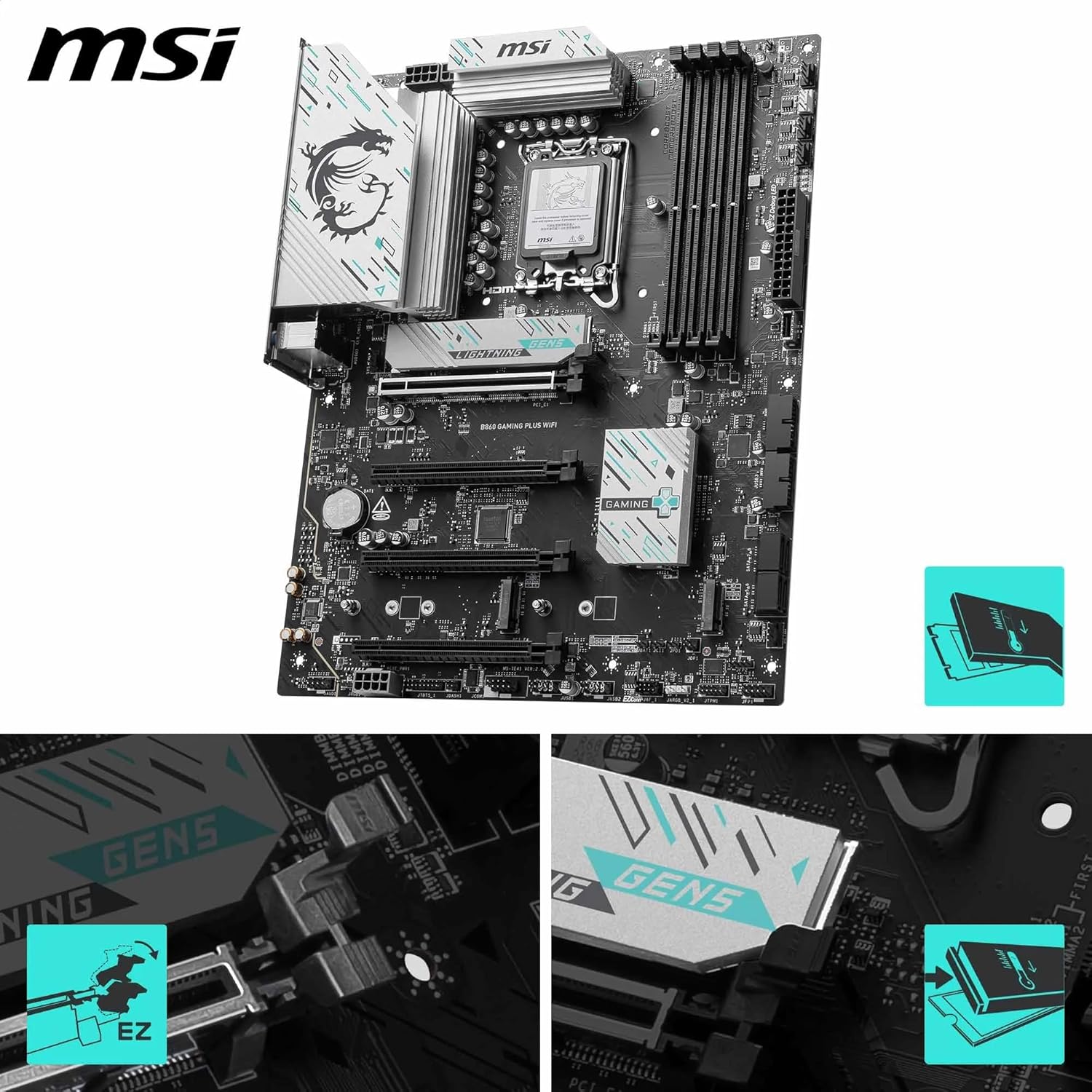

• Storage: 1x M.2 Gen5 x4 (128 Gbps) with EZ M.2 Shield Frozr II, 1x M.2 Gen4 x4 (64 Gbps), 1x M.2 Gen4 x2 (32 Gbps), 4x SATA 6Gb/s ports
• Networking: Intel Killer 5G LAN, Wi-Fi 7, Bluetooth 5.4
• Power design: 12-phase Duet Rail Power System (P-PAK) VRM with Core Boost
• Power connectors: 8+4-pin CPU power
• Cooling: Extended VRM heatsink, 7W/mK MOSFET thermal pads, choke thermal pads, chipset heatsink

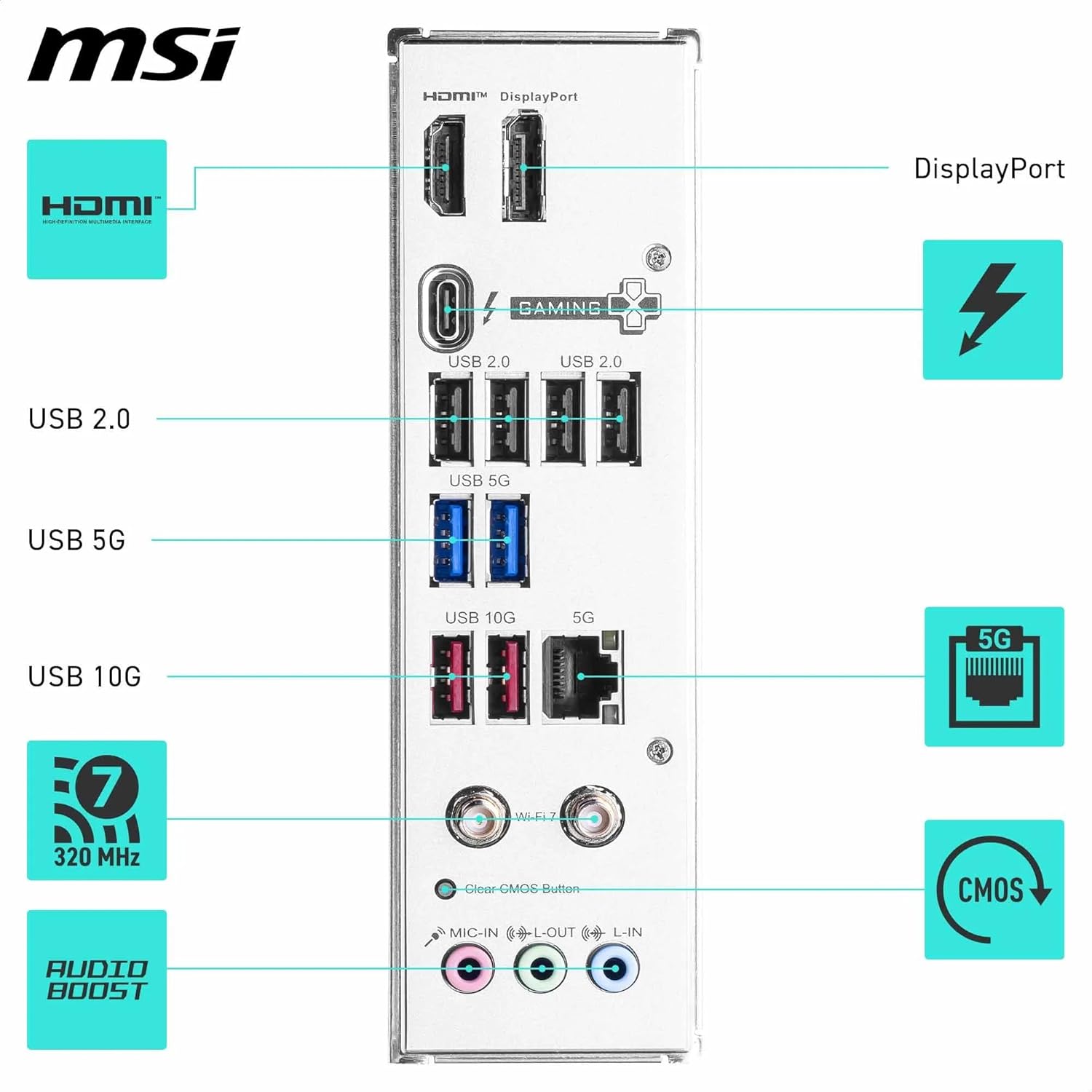

• Rear I/O: Thunderbolt 4 Type-C with display output, USB 3.2 Gen 2, USB 2.0
• Audio: 7.1 Channel HD Audio with Audio Boost
• Fan headers: Combo-fan header for pump/system (3A)
• Form factor: ATX

The MSI B860 GAMING PLUS WIFI motherboard is for PC builders using Intel Core Ultra Series 2 processors on the LGA 1851 platform who require high-speed DDR5 memory overclocking, PCIe 5.0 graphics support, Gen5 M.2 storage, and Thunderbolt 4 connectivity with Wi-Fi 7.
