The MSI Cubi 5 1M Intel Core 7 150U Mini PC is a compact and highly versatile desktop solution designed for business, professional and commercial environments. Featuring an Intel Core 7 150U processor, advanced connectivity and support for DDR5 memory and PCIe Gen4 storage, it delivers a powerful foundation for customised computing.
Important: This is a barebones Mini PC. The unit includes the chassis and processor but does NOT include RAM, SSD storage, operating system, keyboard or mouse. Memory and storage must be purchased and installed separately.
Key Features
- Intel Core 7 150U processor
- Barebones design for customised configurations
- No RAM included
- No SSD or HDD storage included

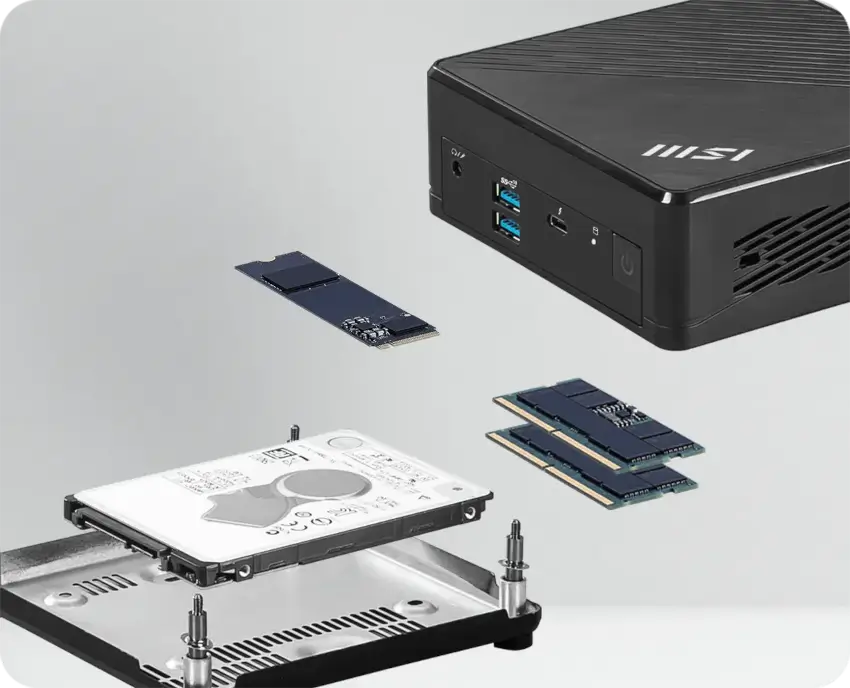

- Supports up to 64GB DDR5 5200MHz SO-DIMM memory
- Supports 1x M.2 2280 NVMe PCIe Gen4 x4 SSD
- Supports 1x 2.5-inch SATA drive
- Thunderbolt 4 connectivity with DisplayPort Alt Mode
- Dual LAN ports including 2.5GbE and 1GbE
- HDMI 2.1 and DisplayPort 1.4 outputs
- WiFi 6E and Bluetooth 5.3 support
- Compact VESA-mountable chassis
Applications
The MSI Cubi 5 1M is ideal for:
- Business desktops
- Corporate deployments
- Retail and POS systems
- Digital signage solutions
- Home office workstations
- Educational environments
- Custom Mini PC installations
Compatibility
This Mini PC supports:
- DDR5 5200MHz SO-DIMM memory modules
- M.2 2280 NVMe PCIe Gen4 x4 SSDs
- 2.5-inch SATA storage drives
- HDMI and DisplayPort monitors
- Thunderbolt 4 compatible devices
- USB peripherals and accessories
- VESA mounting standards 75x75mm and 100x100mm
Technical Specifications
| Brand |
MSI |
| Model |
Cubi 5 1M |
| Processor |
Intel Core 7 150U 4.00Ghz up to 5.4Ghz, 10C/12T, 12MB Cache |
| Chipset |
Intel SoC |
| Graphics |
Integrated Intel Graphics |
| Memory Support |
2x DDR5 5200 SO-DIMM Slots |
| Maximum Memory |
64GB |
| RAM Included |
No RAM Included |
| M.2 Storage Support |
1x M.2 2280 NVMe PCIe Gen4 x4 |
| 2.5-inch Storage Support |
1x 2.5-inch Drive Bay |
| Storage Included |
No Storage Included |
| Front I/O |
1x Thunderbolt 4, 2x USB 10Gbps Type-A, Audio Combo Jack |
| Rear I/O |
2x USB 10Gbps Type-A, 2x RJ45 LAN, HDMI 2.1, DisplayPort 1.4 |
| Networking |
1GbE + 2.5GbE LAN |
| Wireless |
Intel WiFi 6E AX211 / AzureWave AW-CB515NF |
| Bluetooth |
Bluetooth 5.3 / 5.0 |
| Security |
fTPM, Kensington Lock Slot |
| Power Supply |
65W AC Adapter |
| VESA Mount Support |
75x75mm and 100x100mm |
| Dimensions |
124 x 124 x 53.7 mm |
| Colour |
Black |
Why Choose This Product?
The MSI Cubi 5 1M provides a powerful Intel Core 7 platform in an ultra-compact form factor while allowing complete flexibility over memory and storage configuration. Its extensive connectivity, dual LAN ports, Thunderbolt 4 support and VESA mounting capabilities make it ideal for business users and IT professionals seeking a customisable Mini PC solution.
Frequently Asked Questions
Does this Mini PC include RAM?
No. This is a barebones system and does not include any RAM. Memory must be purchased separately.
Does this Mini PC include an SSD or hard drive?
No. Storage is not included. You will need to install an M.2 NVMe SSD and/or a 2.5-inch drive separately.
Can I install up to 64GB of memory?
Yes. The system supports up to 64GB of DDR5 5200MHz SO-DIMM memory.
Can I connect multiple displays?
Yes. The Cubi 5 1M includes HDMI 2.1, DisplayPort 1.4 and Thunderbolt 4 display support.
Who is this Mini PC designed for?
It is ideal for businesses, system integrators, IT deployments, digital signage and professional office environments requiring a compact and customisable desktop solution.
