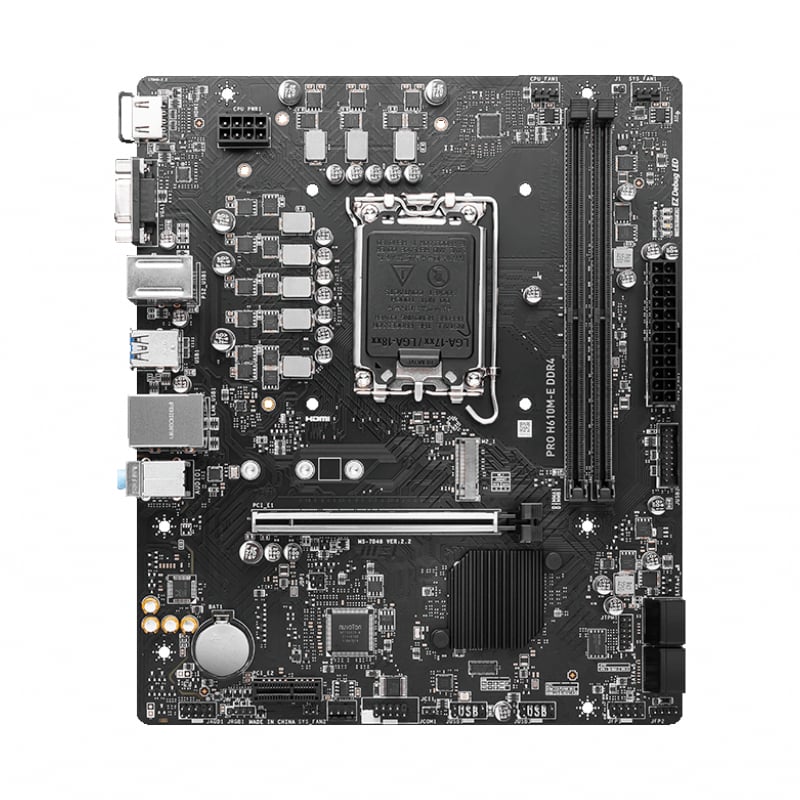

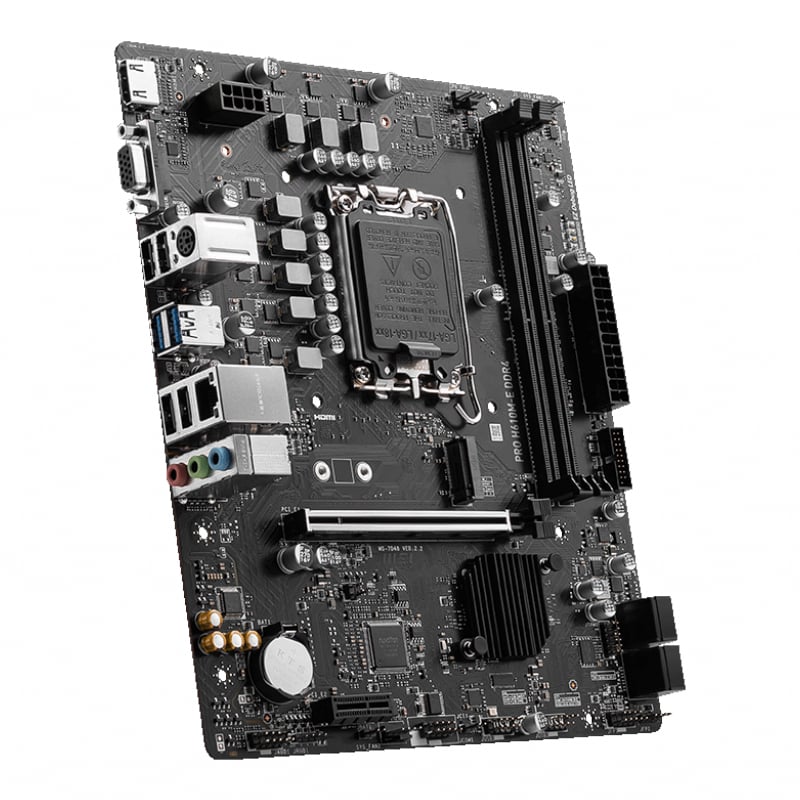

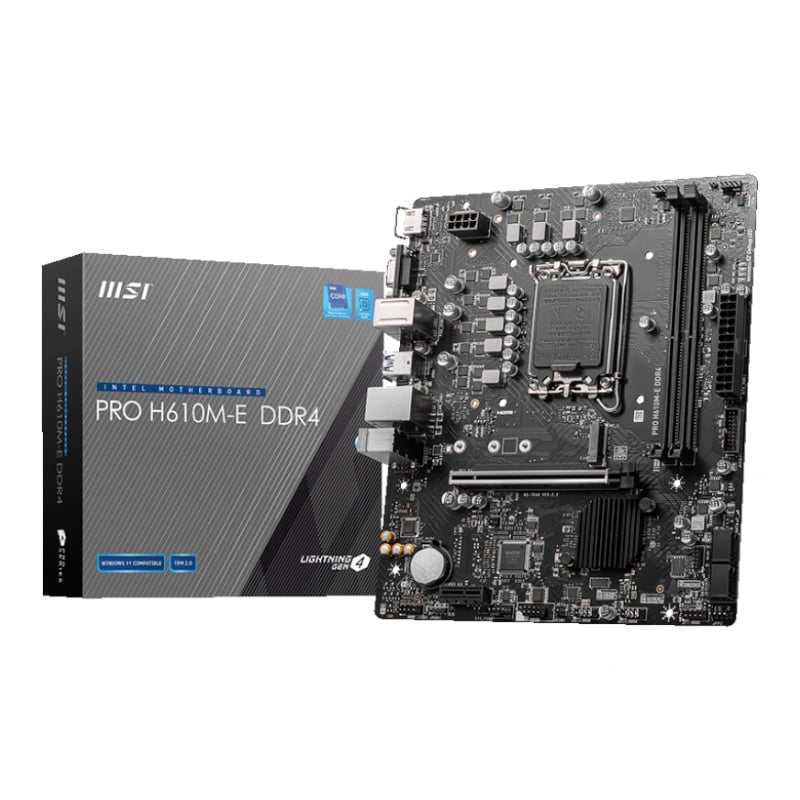

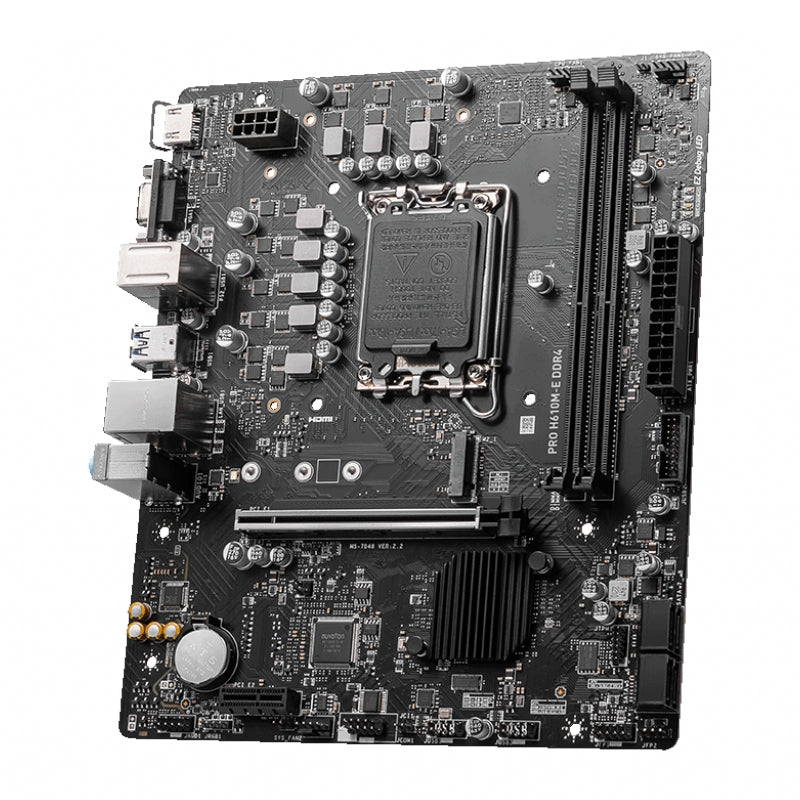

MSI H610M-E PRO DDR4 Intel 12th Gen Socket LGA 1700 mATX Motherboard

Overview:

PRO H610M-B DDR4

• Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
• Supports DDR4 Memory, up to 3200(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Features:

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

LOW LATENCY GAMING LAN POWERED BY INTEL
Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays.

EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

Specifications:

Product Code	PROH610M-EDDR4
Quick Specifications
CPU (MAX SUPPORT)	i9
SOCKET	1700
CHIPSET	Intel H610 Chipset
DDR4 MEMORY	3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
MEMORY CHANNEL	Dual
DIMM SLOTS	2
MAX MEMORY (GB)	64
PCI-E X16	1
PCI-E X1	1
SATAIII	4
M.2 SLOT	1
TPM (HEADER)	1
LAN	1x Intel I219V Gigabit LAN controller
USB 3.2 PORTS (FRONT)	2(Gen 1, Type A)
USB 3.2 PORTS (REAR)	2(Gen 1, Type A)
USB 2.0 PORTS (FRONT)	2
USB 2.0 PORTS (REAR)	4
AUDIO PORTS (REAR)	Realtek ALC892/ ALC897 Codec
VGA	1
HDMI	1
DIRECTX	12
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
FORM FACTOR	Mirco-ATX
Detailed Specifications
PROCESSOR	Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
	Processor socket LGA1700
CHIPSET	Intel H610 Chipset
MEMORY	2x DDR4 memory slots, support up to 64GB
	Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
	Supports Dual-Channel mode
	Supports non-ECC, un-buffered memory
EXPANSION SLOT	1x PCIe x16 slot (From CPU)
	Supports up to PCIe 4.0 x16
	1x PCIe x1 slot
	Supports PCIe 3.0 x1
	1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
ONBOARD GRAPHICS	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz /
	1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz /
	Available only on processors featuring integrated graphics.
	Graphics specifications may vary depending on the CPU installed.
SATA PORTS	4x SATA 6Gb/s ports
	SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD SLOT	1x M.2 slot (Key M, from chipset)
	Supports up to PCIe 3.0 x4
	Supports up to SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices
	Supports Intel Smart Response Technology for Intel Core processors
	SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
AUDIO	Realtek ALC892/ ALC897 Codec
	7.1-Channel High Definition Audio
LAN	1x Intel I219V 1Gbps LAN controller
POWER CONNECTORS	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
USB	Intel H610 Chipset
	4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
	6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
FAN CONNECTORS	1x 4-pin CPU fan connector
	1x 4-pin System fan connector
SYSTEM CONNECTORS	1x Front panel audio connector
	2x System panel connectors
	1x Chassis Intrusion connector
	1x TPM module connector
JUMPERS	1x Clear CMOS jumper
LED FEATURES	4x EZ Debug LED

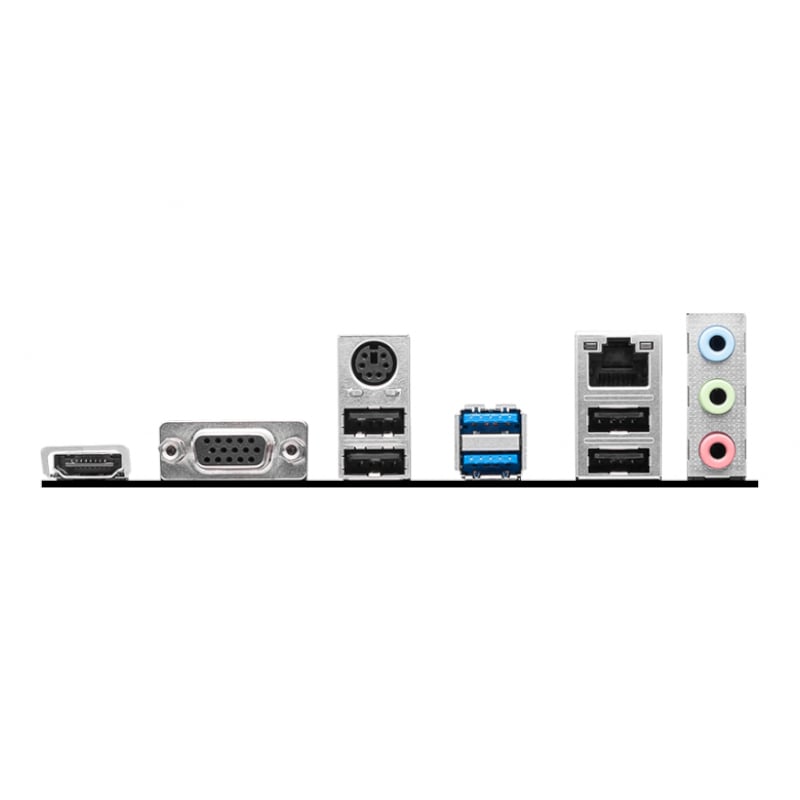

BACK PANEL PORTS	HDMI
	VGA
	Keyboard/Mouse
	USB 3.2 Gen 1 5Gbps Type-A
	LAN port
	Audio connector
	USB 2.0
DIMENSIONS	M-ATX Form Factor
	9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
BOX CONTENT	MSI does not guarantee the risks or damages caused by changing the cover.
	These pictures are for reference only and may vary without notice.
