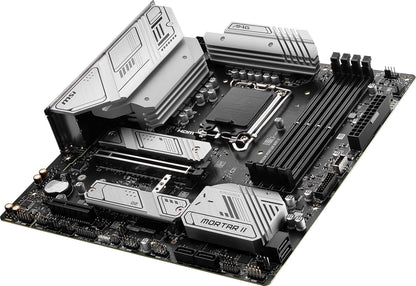

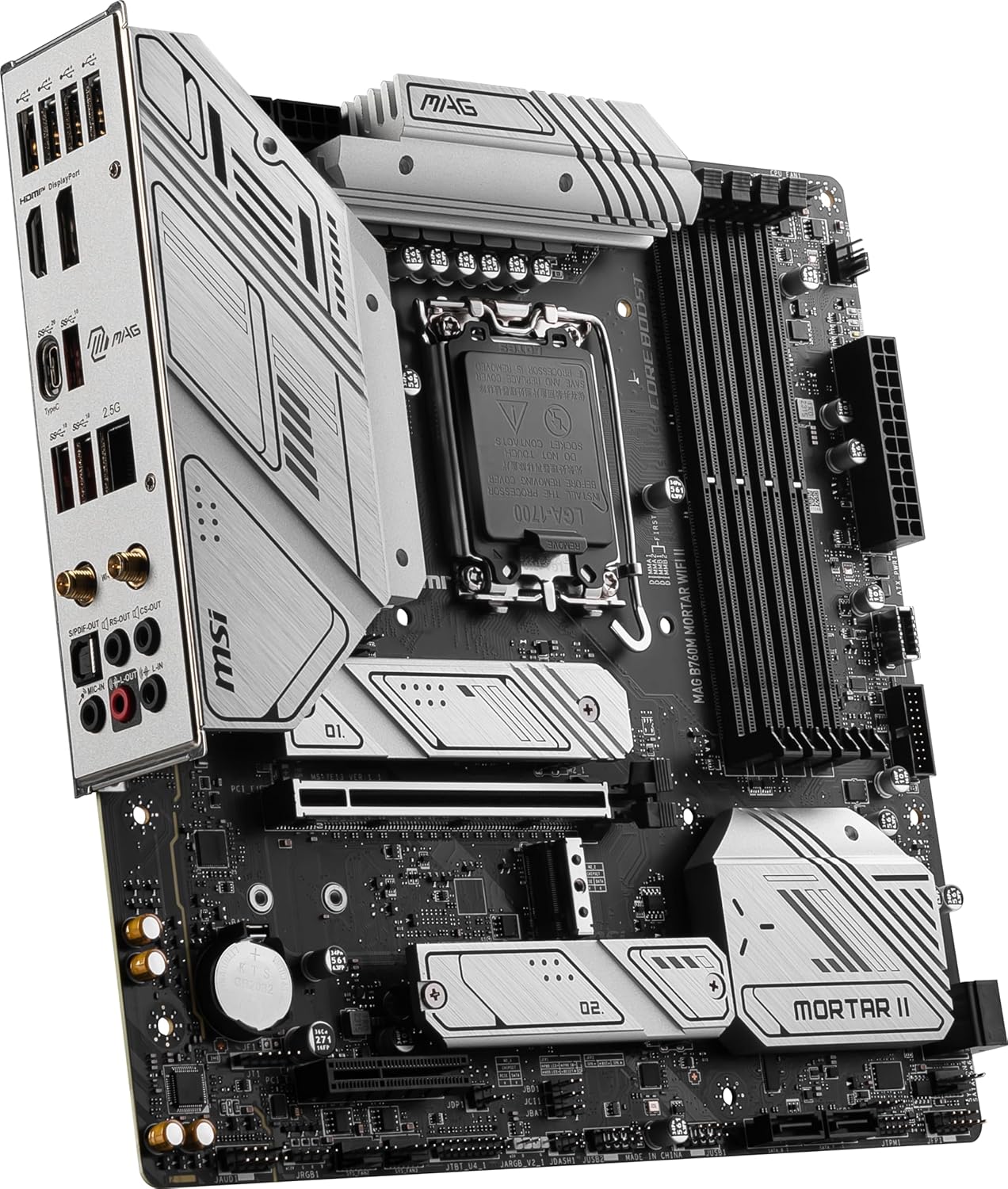

• Front view of the MSI MAG B760M MORTAR WIFI II mATX motherboard.

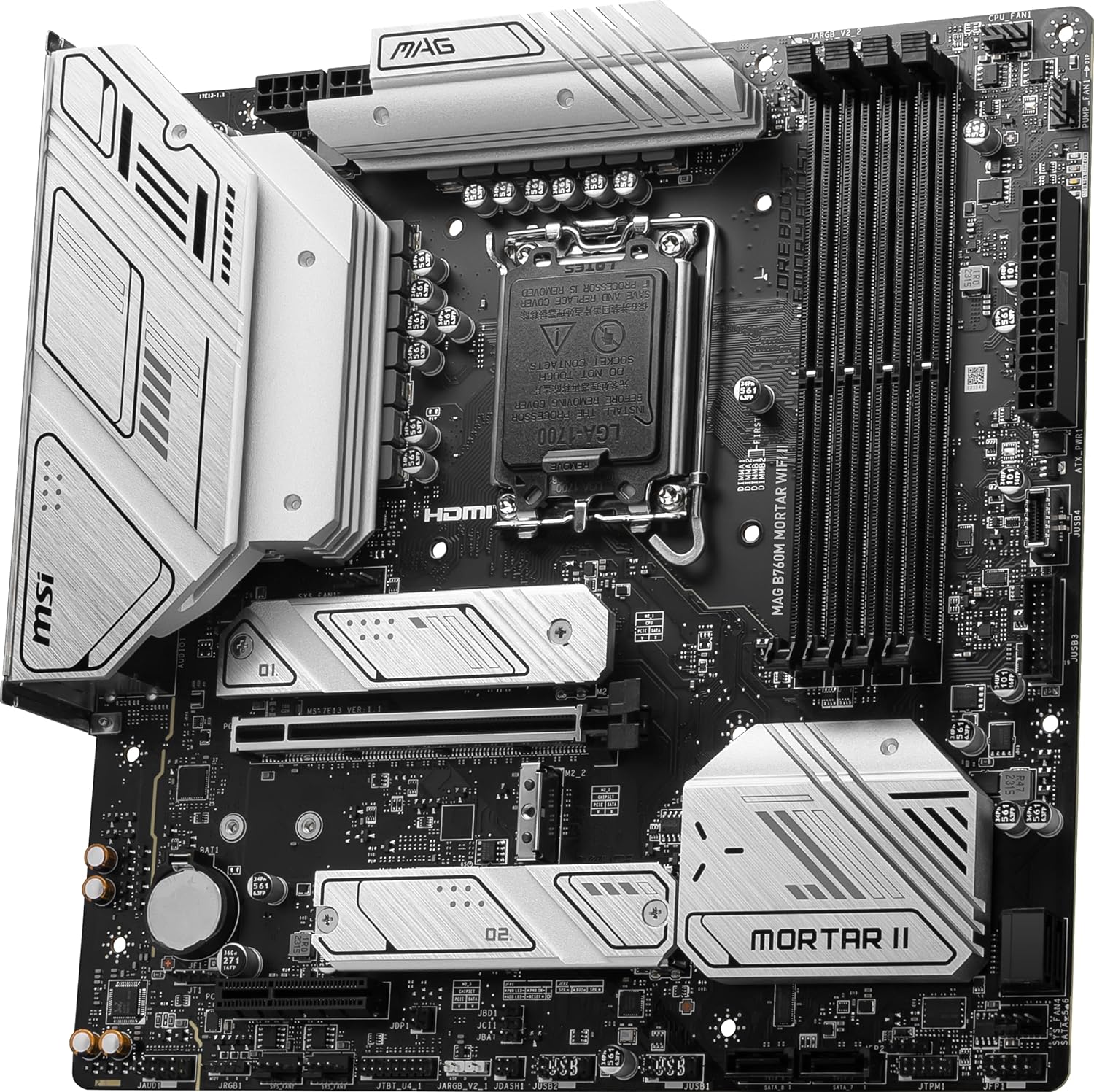

  • Close-up of the LGA 1700 socket and extended VRM heatsink with MORTAR branding.

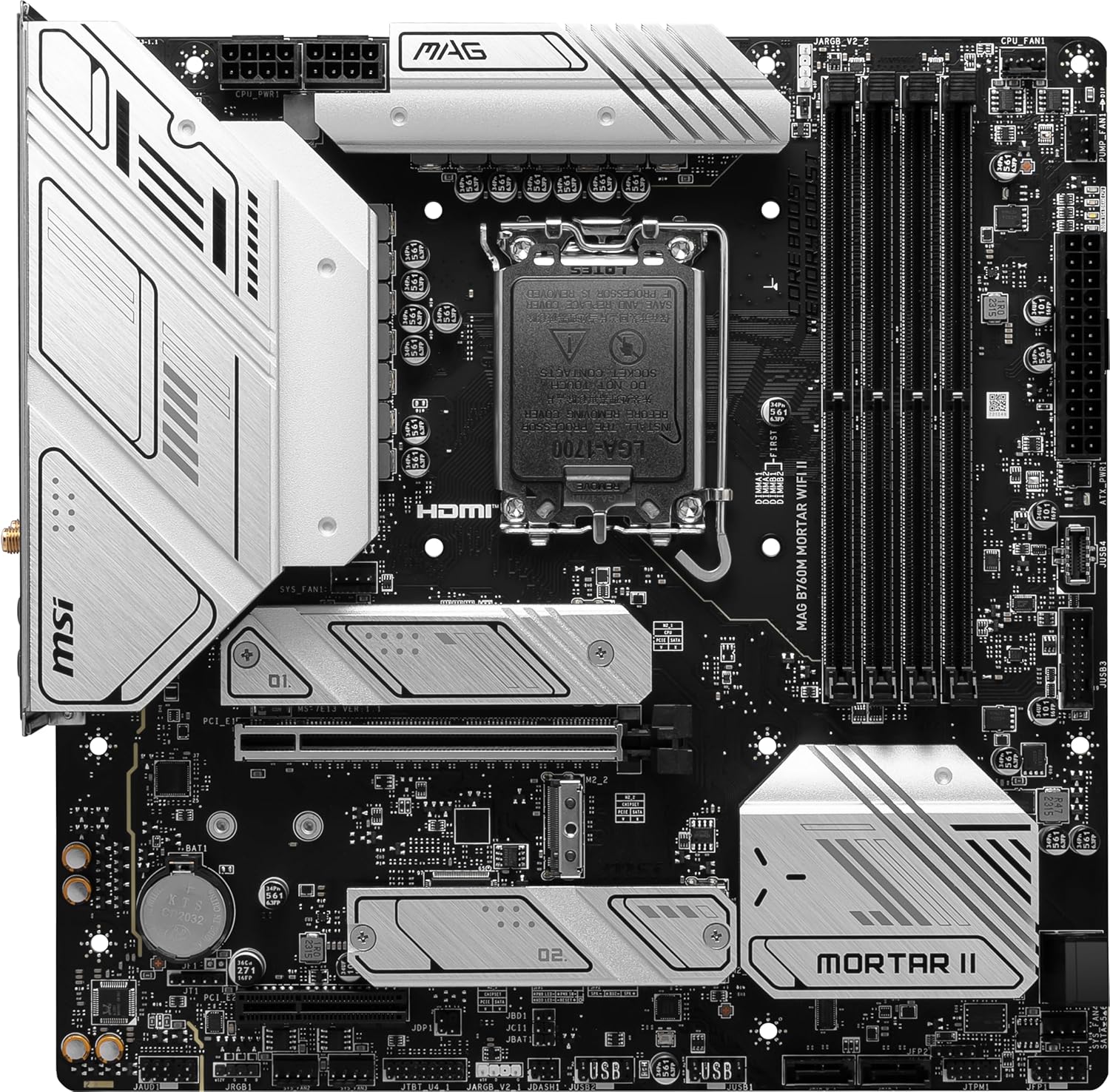

  • Top-down view showing four DDR5 DIMM slots and PCIe 5.0 x16 reinforced slot.

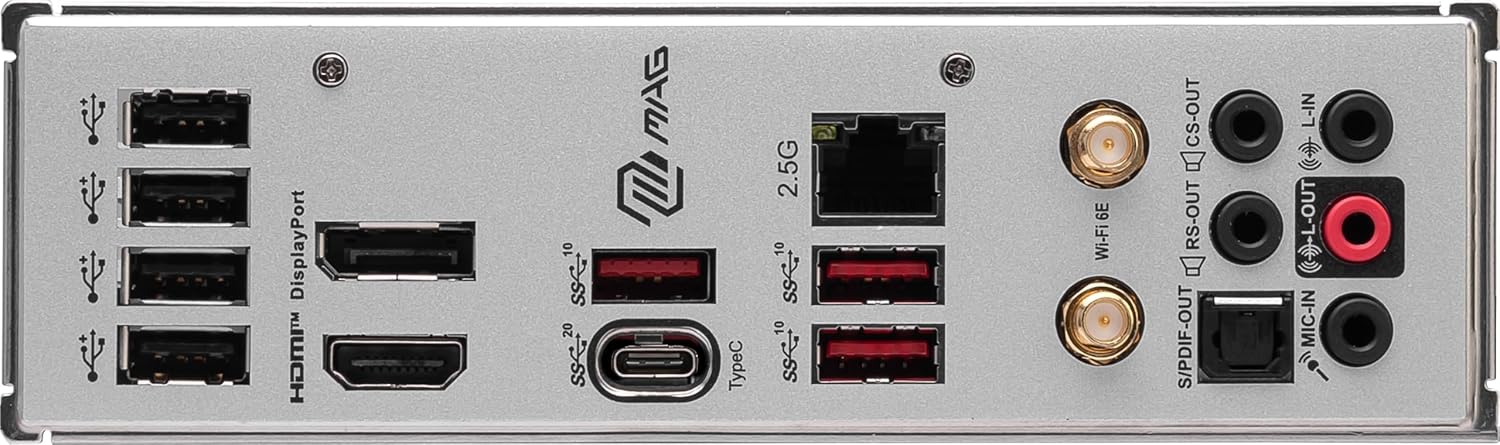

  • The motherboard's rear I/O panel with Wi-Fi 6E antenna connectors and USB ports.
  • Close-up detail of the dual 8-pin CPU power connectors at the top edge.
  • Image showing both M.2 slots with their Shield Frozr thermal covers.
  • Side profile illustrating the 2.5G LAN port, audio connectors, and optical S/PDIF.
1 7

MSI MAG B760M MORTAR WIFI II mATX Motherboard, LGA 1700, DDR5, PCIe 5.0, Wi-Fi 6E

MSI MAG B760M MORTAR WIFI II mATX Motherboard, LGA 1700, DDR5, PCIe 5.0, Wi-Fi 6E

MSI

R 4,780.00
R 4,780.00
Taxes included. Shipping calculated at checkout.

Online Only

B760M MORTAR WIFI II

  • Model: MSI MAG B760M MORTAR WIFI II
  • CPU socket: LGA 1700
  • Compatible processors: 12th, 13th, and 14th Gen Intel Core, Pentium Gold, Celeron
  • Chipset: Intel B760
  • Memory: 4x DDR5 DIMM slots, supports up to 256 GB, 7800+ MHz (OC)
  • Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
  • Storage: 2x M.2 slots (PCIe 4.0 x4), 4x SATA 6Gb/s ports
  • Networking: 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
  • Power design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors
  • Rear I/O: USB 3.2 Gen 2x2 Type-C (20 Gbps), USB 3.2 Gen 2, USB 2.0
  • Video outputs: 1x HDMI, 1x DisplayPort
  • Audio: 7.1 Channel HD Audio with optical S/PDIF
  • Cooling: Extended VRM heatsink, M.2 Shield Frozr
  • Form factor: mATX (24.4 cm x 24.4 cm)

The MSI MAG B760M MORTAR WIFI II motherboard is for PC builders using 12th to 14th Gen Intel processors on the LGA 1700 platform who require robust power delivery, DDR5 memory support, PCIe 5.0 graphics, and Wi-Fi 6E connectivity in an mATX form factor.
