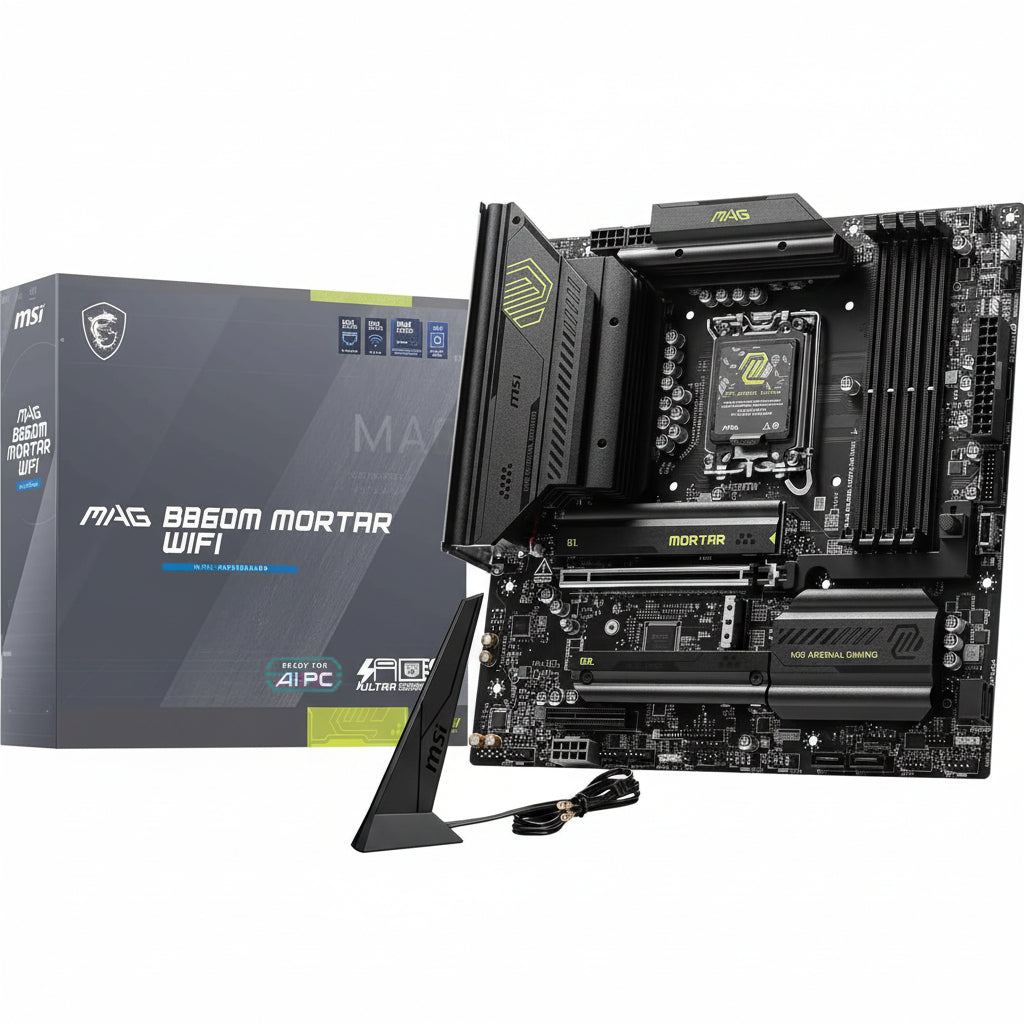

• Front view of the MSI MAG B860M MORTAR WIFI mATX motherboard.

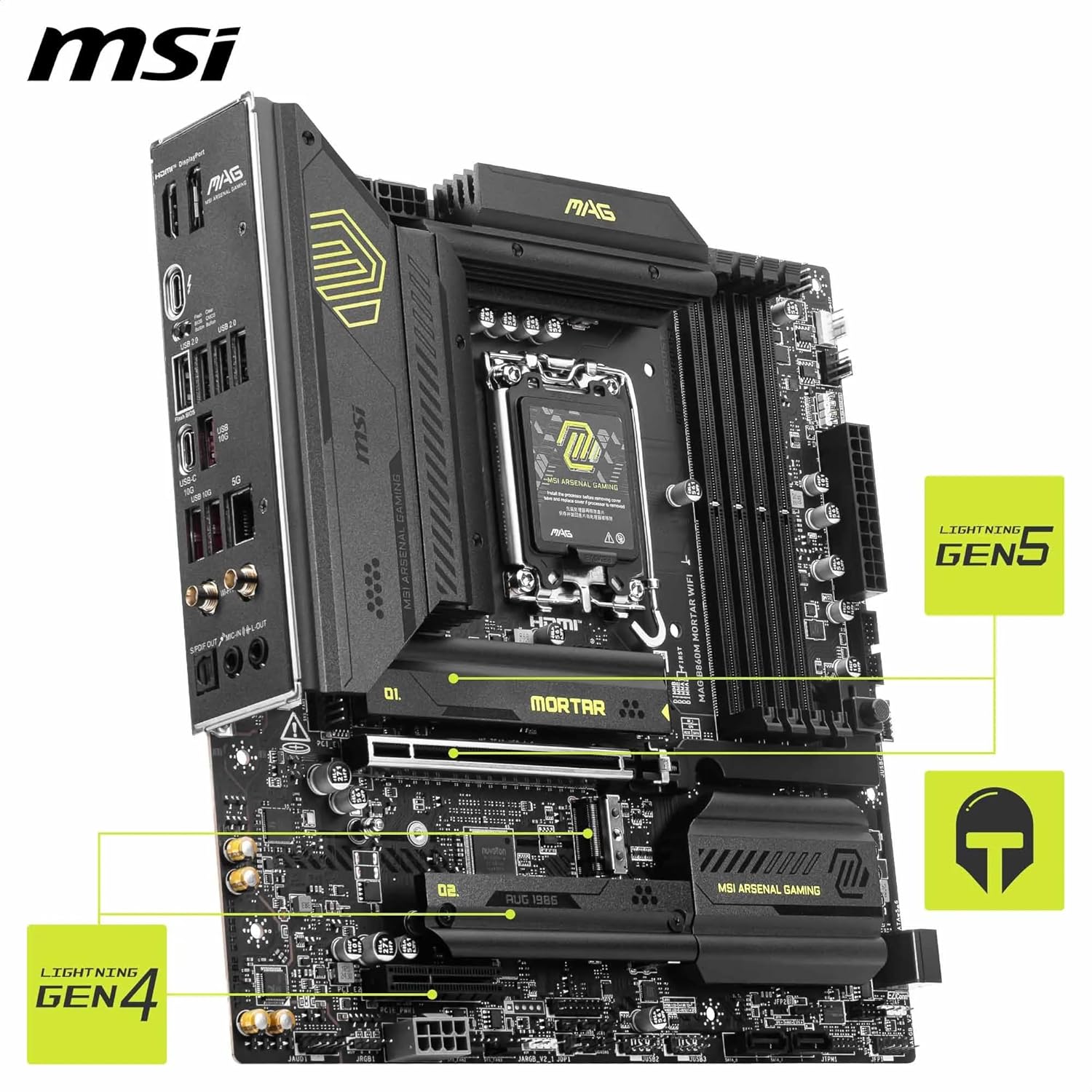

  • Close-up of the LGA 1851 socket and extended VRM heatsink with MORTAR branding.

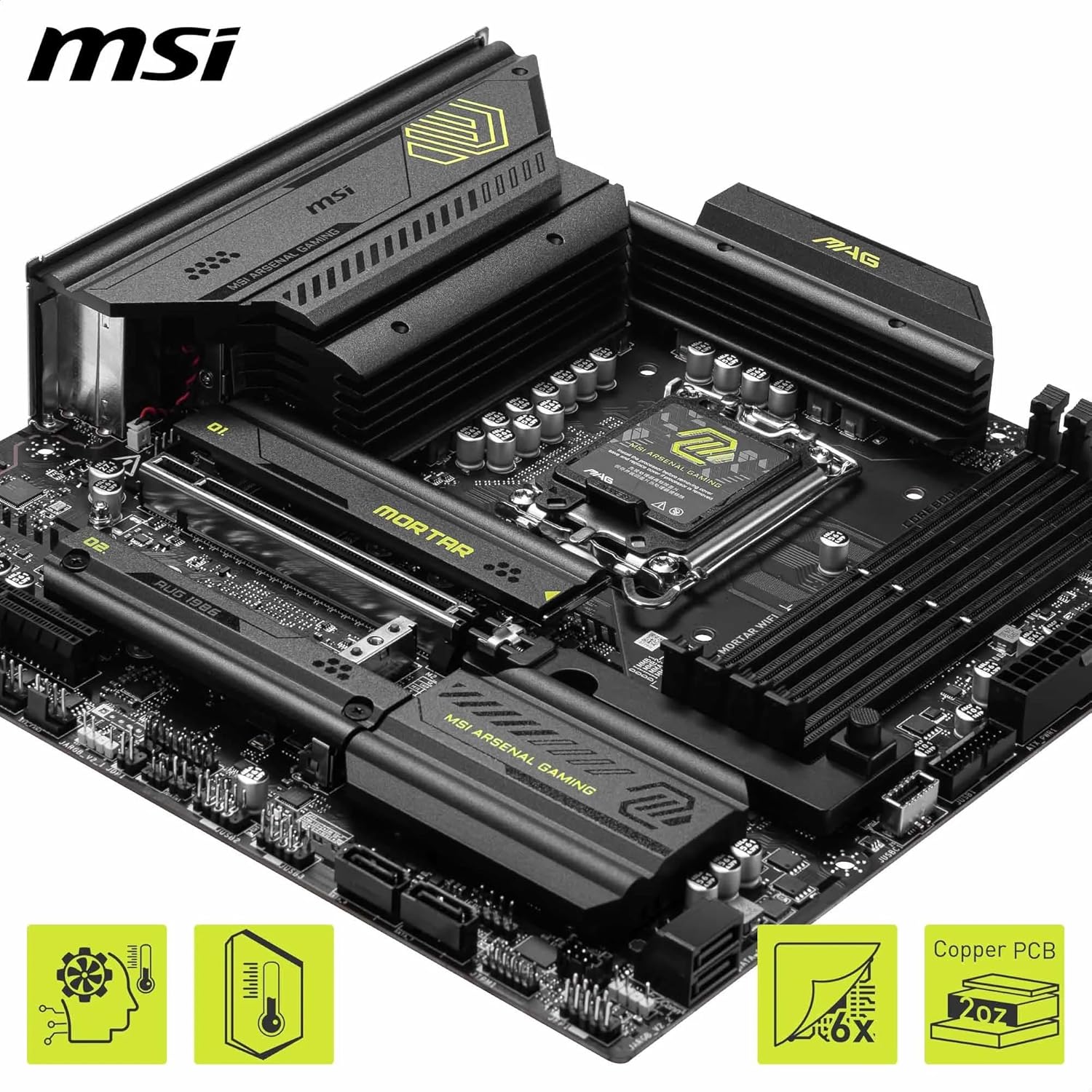

  • Top-down view showing four DDR5 DIMM slots and PCIe 5.0 x16 Steel Armor II slot.
  • The motherboard's rear I/O panel with Wi-Fi 7 antenna connectors and Thunderbolt 4 USB-C.
  • Close-up detail of the M.2 Gen5 slot with EZ M.2 Shield Frozr II and EZ M.2 Clip II.

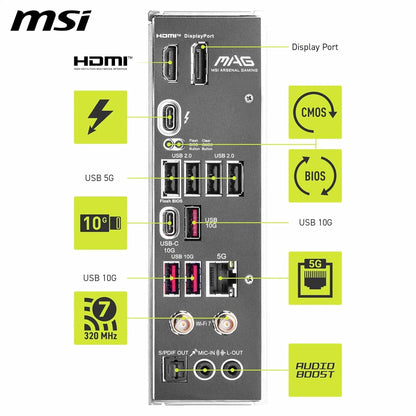

  • Image showing the Intel Killer 5G LAN port and Audio Boost audio circuitry with S/PDIF.
  • Side profile illustrating the chipset heatsink and dual M.2 Gen4 slot layout.
1 7

MSI MAG B860M MORTAR WIFI mATX Motherboard, LGA 1851, DDR5, PCIe 5.0, Wi-Fi 7

MSI MAG B860M MORTAR WIFI mATX Motherboard, LGA 1851, DDR5, PCIe 5.0, Wi-Fi 7

MSI

B860M MORTAR WIFI

R 6,240.00
R 6,240.00
Taxes included. Shipping calculated at checkout.

In stock

Complete your setup
Loading recommendations...
Nationwide delivery
Delivery calculated at checkout. Shipping info
Secure checkout
Pay securely with trusted payment providers.
Warranty & returns
Warranty included. Returns policy
Buy now. Pay later.
Pay in 4 interest-free payments of R 1,560.00 with Payflex.
  • Model: MSI MAG B860M MORTAR WIFI (B860MMORTARWIFI)
  • CPU socket: LGA 1851
  • Compatible processors: Intel Core Ultra Processors (Series 2)
  • Chipset: Intel B860
  • Memory: 4x DDR5 DIMM slots, 9200+ MT/s (OC, 1DPC 1R) with Memory Boost isolated circuitry
  • Expansion slots: 1x PCIe 5.0 x16 with Steel Armor II (128 GB/s)
  • Storage: 1x M.2 Gen5 x4 (128 Gbps), 2x M.2 Gen4 x4 (64 Gbps), 4x SATA 6Gb/s ports
  • M.2 features: EZ M.2 Shield Frozr II thermal solution, EZ M.2 Clip II tool-free installation
  • Networking: Intel Killer 5G LAN, Wi-Fi 7, Bluetooth 5.4
  • Power design: VRM with Core Boost technology
  • Power connectors: 8-pin (4+4) CPU power
  • Cooling: Extended VRM heatsink, 7W/mK MOSFET thermal pads, choke thermal pads, chipset heatsink
  • Rear I/O: Thunderbolt 4 Type-C with display output, USB 3.2 Gen 2, USB 2.0
  • Audio: 7.1 Channel HD Audio with Audio Boost, optical S/PDIF output
  • Fan headers: Combo-fan header for pump/system (3A)
  • Form factor: mATX

The MSI MAG B860M MORTAR WIFI motherboard is for PC builders using Intel Core Ultra Series 2 processors on the LGA 1851 platform who require a compact mATX form factor with premium power delivery, DDR5 memory overclocking beyond 9200 MT/s, PCIe 5.0 graphics, Gen5 M.2 storage with tool-free installation, and Thunderbolt 4 connectivity with Wi-Fi 7.
