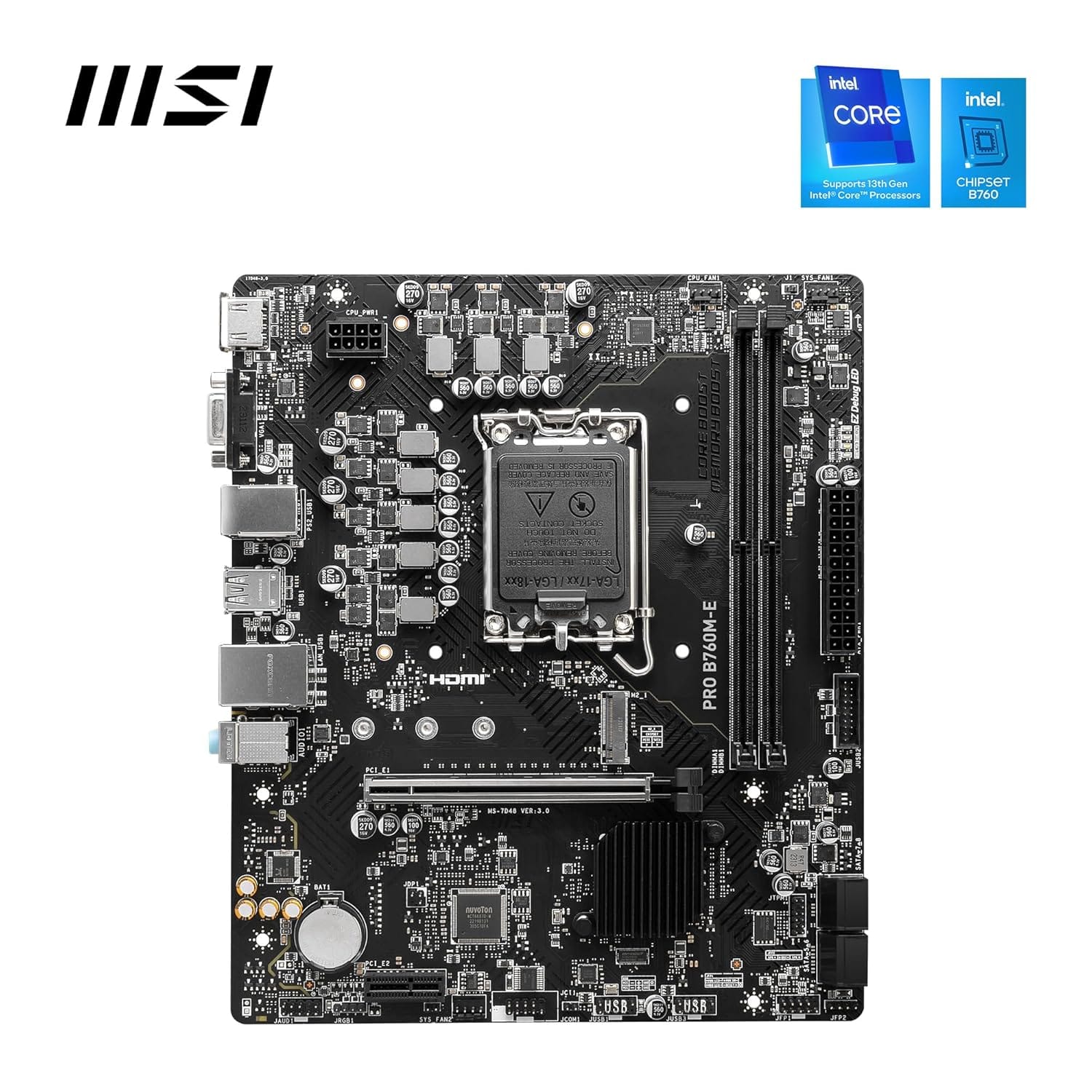

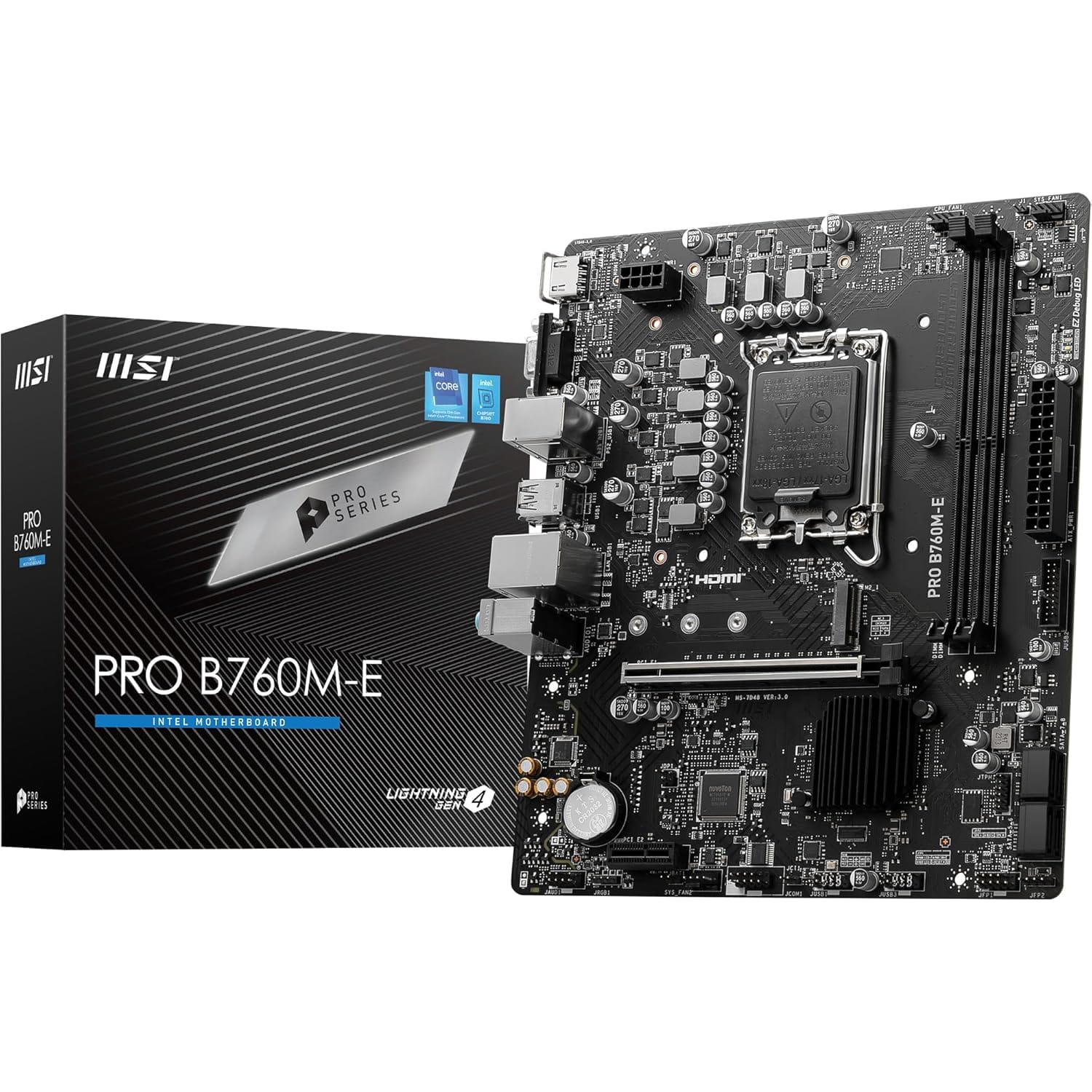

The MSI PRO B760M-E DDR5 Micro-ATX Motherboard delivers the performance, stability, and connectivity required by modern professionals, creators, and gamers. Built on the Intel B760 chipset and compatible with Intel 14th, 13th, and 12th Gen Core processors via the LGA 1700 socket, it ensures smooth multitasking and reliable productivity.

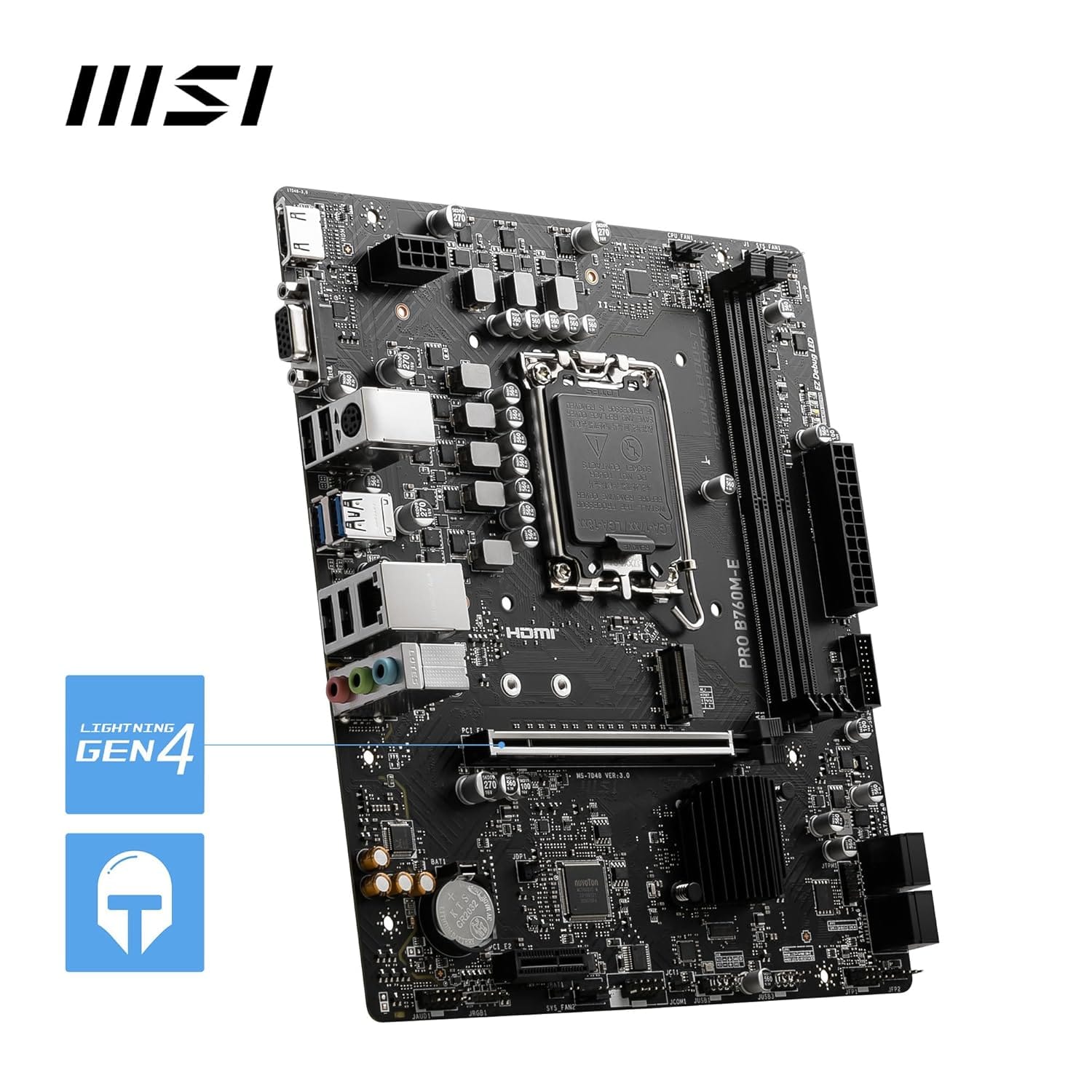

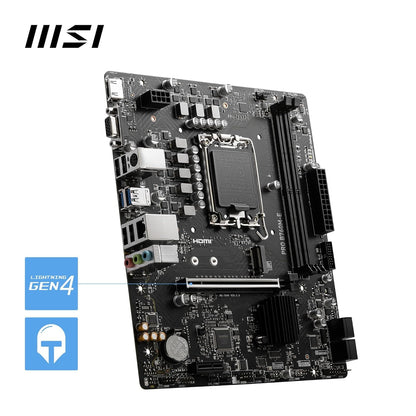

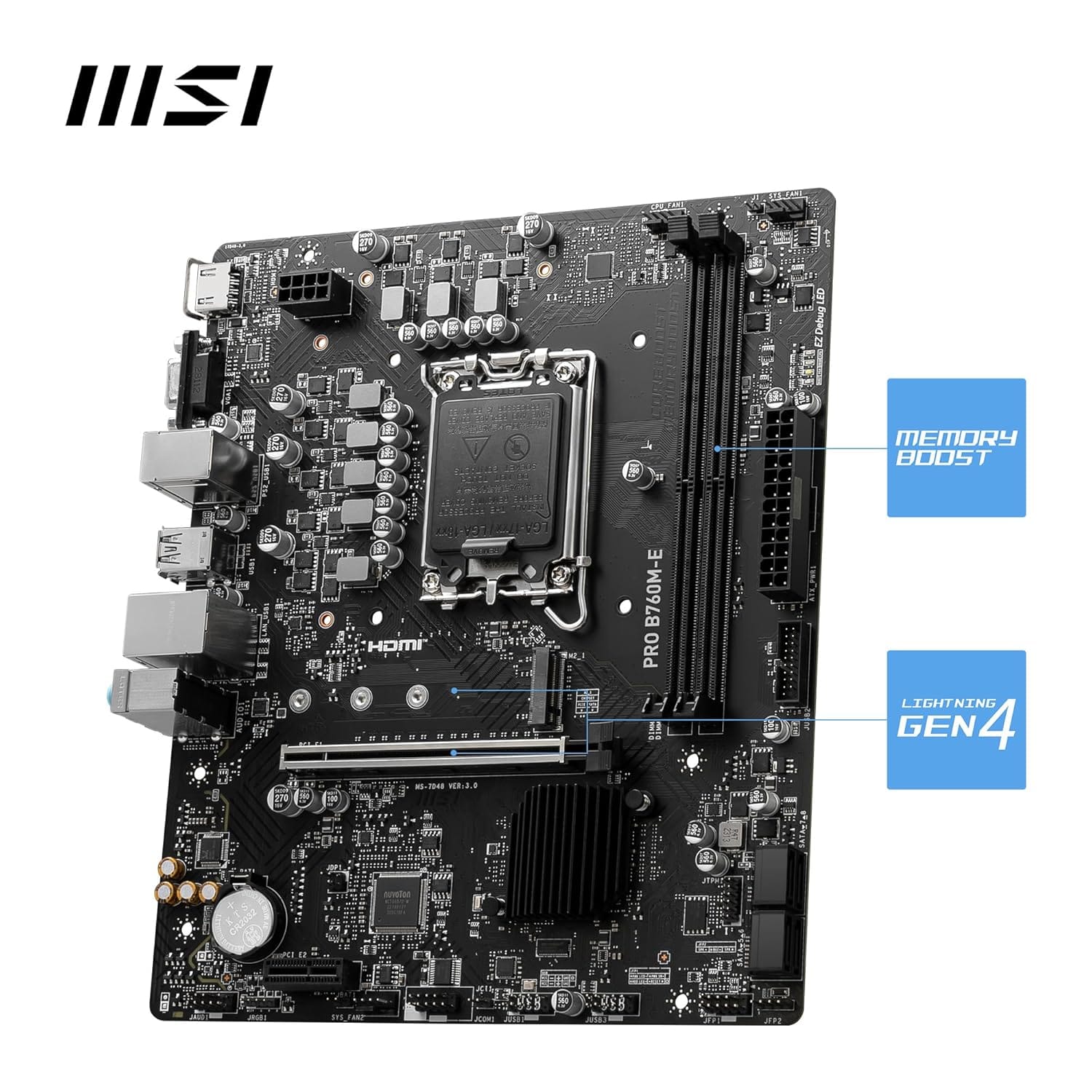

Featuring 4x DDR5 DIMM slots with Memory Boost technology, it supports high-speed memory up to 5600 MHz (OC) for faster data handling and responsiveness. The PCIe 4.0 x16 slot with Steel Armor reinforcement provides robust support for high-performance GPUs, while the M.2 Gen4 x4 slot delivers ultra-fast storage speeds up to 64Gbps for rapid boot times and quick file transfers.

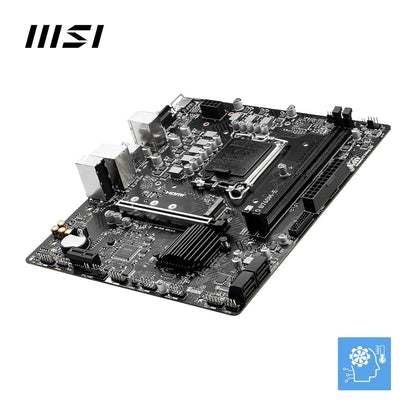

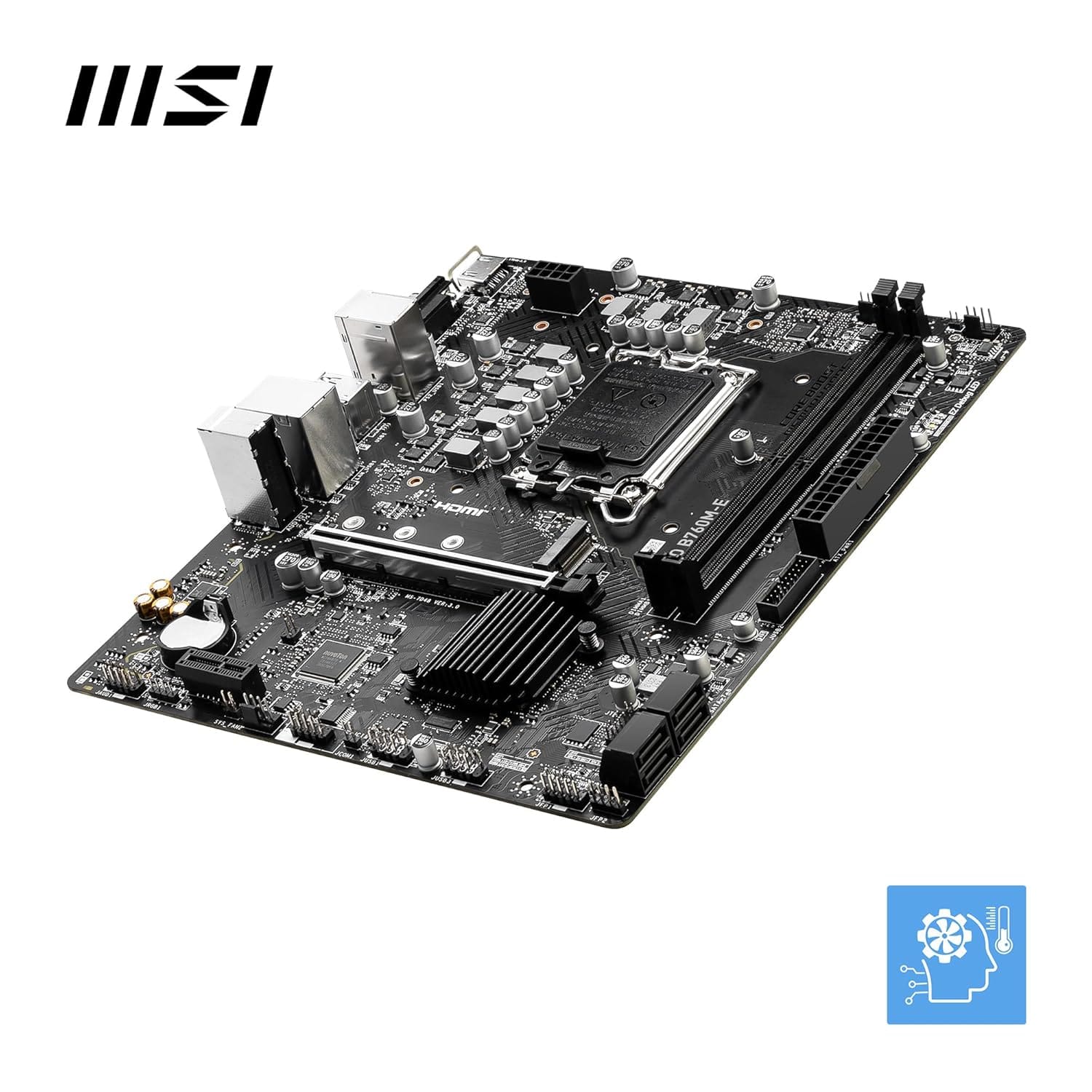

Thermal management is handled by a passive chipset heatsink and Frozr AI Cooling, which automatically adjusts fan speeds based on CPU & GPU temperatures. The board also offers 1Gbps LAN, multiple USB 3.2 Gen 1 ports, HDMI 1.4 and VGA outputs, and 7.1 HD Audio with Audio Boost for immersive sound.

Whether for office work, creative projects, or gaming, the MSI PRO B760M-E DDR5 is a versatile and future-ready solution.

Specifications:

• Brand: MSI

• Model: PRO B760M-E DDR5

• CPU Socket: LGA 1700

• Chipset: Intel B760

• Memory Support: DDR5 5600 MHz (OC)

• Form Factor: Micro-ATX

• Expansion Slots: PCIe 4.0 x16 (Steel Armor)

• Storage: 1x M.2 Gen4 x4, SATA ports

• Cooling: Passive chipset heatsink, Frozr AI Cooling

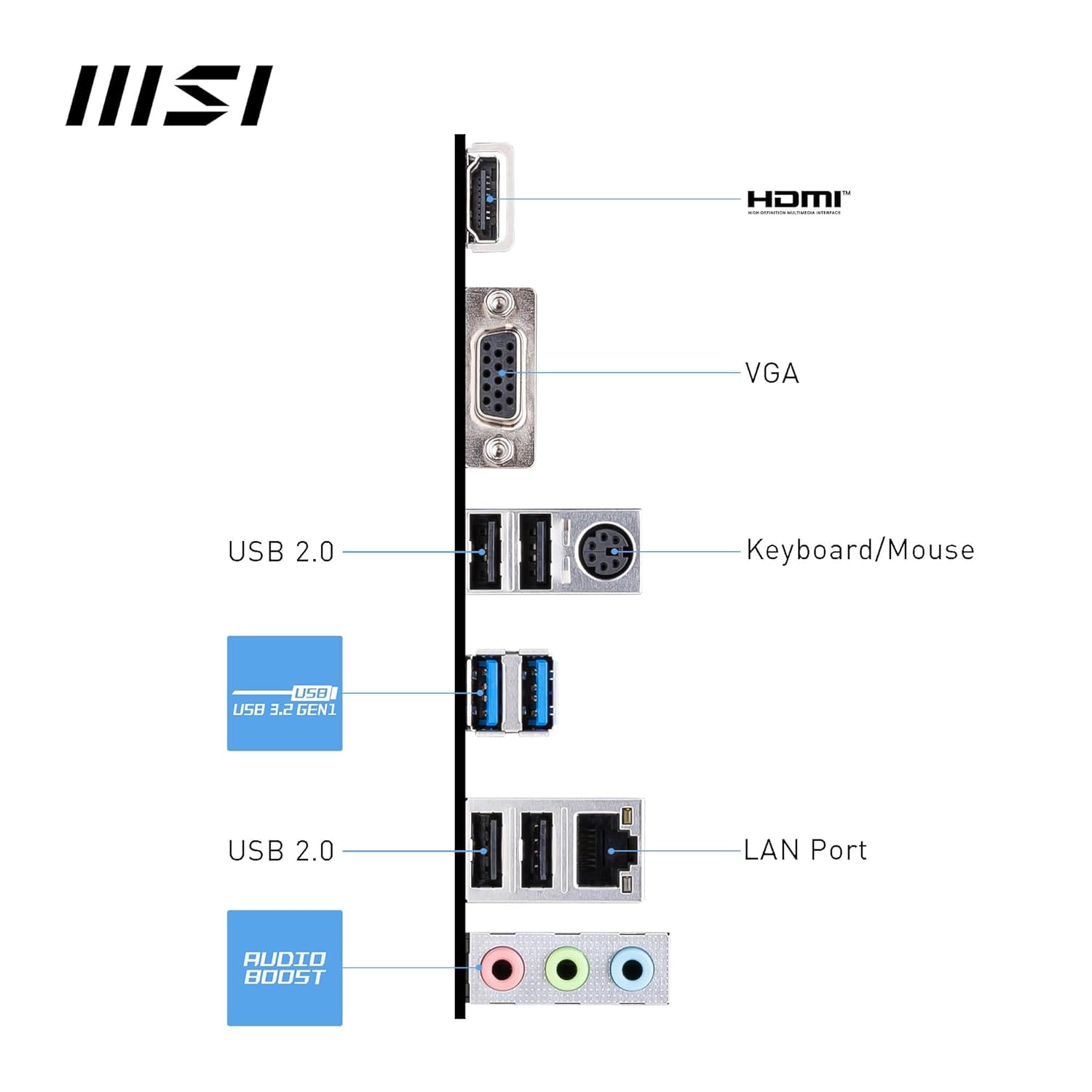

• Connectivity: 1Gbps LAN, USB 3.2 Gen 1, HDMI 1.4, VGA

• Audio: 7.1 HD Audio, Audio Boost

• Compatible Processors: Intel 12th, 13th, 14th Gen Core
