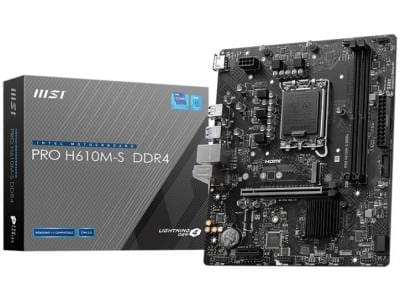

MSI Pro H610M-S DDR4 Intel 12th / 13th / 14th Gen Socket LGA 1700 mATX Motherboard

MSI Pro H610M-S DDR4 Intel 12th / 13th / 14th Gen Socket LGA 1700 mATX Motherboard, 2x DDR4 DIMM Memory slots, 1x HDMI, 1x PCI-e x16 slot PCI_E1 Gen PCI-e 4.0 supports up to x16, 1x PCI-e x1 slot PCI_E2 Gen PCI-e 3.0 supports up to x1, 7.1-channel High Definition Audio, 1x M.2 slot supports up to PCI-e 3.0 x4, 2x SATA 6G Ports, USB 2.0, USB 5Gbps Type-A, Realtek RTL8111h Gigabit LAN, Audio connectors

Overview:

PRO H610M-S DDR4

• Support Intel Core 14th/ 13th/ 12th Gen Processors, IntelPentium Gold and Celeron Processors for LGA 1700 socket
• Supports DDR4 Memory, up to 3200(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Features:

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Core Boost
With premium layout and digital power design to support more cores and provide better performance.

Audio Boost
Reward your ears with studio grade sound quality for the most immersive gaming experience.

Memory Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 4 Solution
The Gen 4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.

USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers' need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

Specifications:

Product Code	H610M-S DDR4
Chipset	INTEL H610
CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
	LGA 1700
Memory	2x DDR4, Maximum Memory Capacity 64GB
	Memory Support DDR4 1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200 MHz by JEDEC
	Supports Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI
	Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot
	1x PCI-E x1 slot
	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek ALC897 Codec
	7.1-Channel High Definition Audio
Storage	1x M.2
	M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
	2x SATA 6G
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 5Gbps Type A (Rear)
	2x USB 5Gbps Type A (Front)
LAN	Realtek RTL8111H Gigabit LAN
Internal IO	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	1x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	HDMI
	USB 3.2 Gen 1 5Gbps (Type-A)
	USB 2.0
	LAN port
	Audio Connectors
	USB 2.0
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
BOX CONTENT
PCB Info	mATX
	200mmx236.16mm
