MT-UHV30

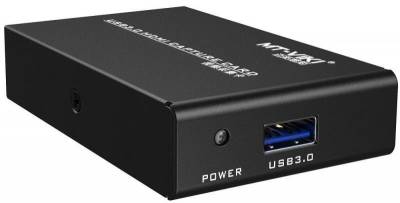

MT-Viki MT-UHV30 USB3.0 HDMI Capture Card

Features:

• UVC design, driver-free
• Support 1080P HD video input and recording
• Compatible with Windows, Linux, OSX systems, support OTG Android phone
• Compact and portable, USB drive-free power supply, Plug and play
• Support USB sound card, USB earphone

Specifications:

Specifications
Product Code	MT-UHV30
The main interface	USB3.0, *300-350MB/s, USB2.0, *40MB/s
Input port	HDMI
HDMI output format	480i, 480p, 576i, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080p24/25/30/50/60
Output resolution	640x480 / 720x480 / 720x576 / 768x576 / 800x600 / 1024x768 / 1280x720 /x1280x800 / 1280x960 / 1280x1024 / 1368x768 / 1440x900 / 1600x1200 / 1680x1050 / 1920x1080 / 1920x1200 / 640x360 / 856x480 / 960x540 / 1024x576
Frame rate	25 / 29.97 / 30 / 50 /59, 94 / 60 fps
Audio and video capture	Standard UVC and UAC
Supported operating system	Windows 7, Windows Server 2008 R2, Linux (Kemel version 2.6, 3.8 and above), OS X (10.8 and above)
Software compatibility	Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), Quick Time Broadcast (OS X), Quick Time Player (OS X), Wirecast (Windows, OS X), Potplayer (Windows) and ect, Development interface compatibility, DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux), OS X (Quick Time), Real Producer Plus
Power	<=2.5W
Working temperature	0-50 deg C
Storage temperature	-20-70 deg C
Storage humidity	5%-90%
