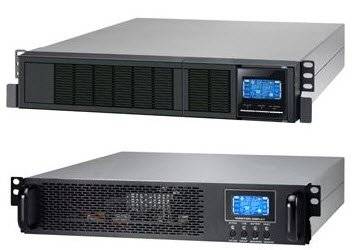

RCT 10000VA / 8000W Online Rack-mount UPS. 12 V / 9 Ah batteries x16. Voltronic Power Winner Pro online pure sine wave UPS.

Specifications:

Product Code	RCT-10000-WPRU
CAPACITY	10000 VA / 8000 W
PHASE	Single phase with ground
INPUT
Input Voltage Range	110-300 VAC (Based on load at 50%); 176-300 VAC (Based on load at 100%)
Nominal Voltage	208/220/230/240 VAC
Frequency Range	46~54 Hz or 56~64 Hz
Power Factor	>= 0.99 @ Nominal Voltage (100% load)
OUTPUT
Voltage Regulation	± 1%
Output Voltage	208/220/230/240 VAC
Frequency Range (Batt. Mode)	50 Hz or 60 Hz ± 0.1 Hz
Transfer Time : AC Mode to Battery Mode	Zero
Transfer Time : Inverter to Bypass	Zero
Transfer Time : Waveform (Batt. Mode)	Pure Sine Wave
Current Crest Ratio	3::1
Harmonic Distortion	<= 3% THD (Linear Load); <= 5% THD (Non-linear Load)
Frequency Range (Synchronized Range)	46~54 Hz or 56~64 Hz
EFFICIENCY
Battery Mode	0.91
AC Mode	0.93
BATTERY
Long-run Model : Battery Type	Depending on the capacity of external batteries
Long-run Model : Charging Current (max.)	1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries)
Long-run Model : Charging Voltage	273 VDC ± 1% (Based on 20pcs bateries)
Long-run Model : Numbers	16~20 (Adjustable)
Standard Model : Battery Type	12 V / 9 Ah
Standard Model : Charging Current (max.)	1A/2A
Standard Model : Charging Voltage	218.4 VDC ± 1%, 273 VDC ± 1%
Standard Model : Numbers	16, 20
Standard Model : Typical Recharge Time	9 hours recover to 90% capacity
INDICATORS
LCD	Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every second
Fault	Continuously sounding
ENVIRONMENT
Operating Humidity	0~95% RH @ 0- 40°C (non-condensing)
Noise Level	Less than 58dB @ 1 Meter
PHYSICAL
Standard Model : Dimension, D x W x H (mm)	580 x 438 x 133 [3U]
Standard Model : Net Weight (kgs)	18
Long-run Model : Dimension, D x W x H (mm)	580 x 438 x 133 [3U]
Long-run Model : Net Weight (kgs)	18
MANAGEMENT
Optional SNMP	Power management from SNMP manager and web browser
Smart RS-232/USB	Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC
