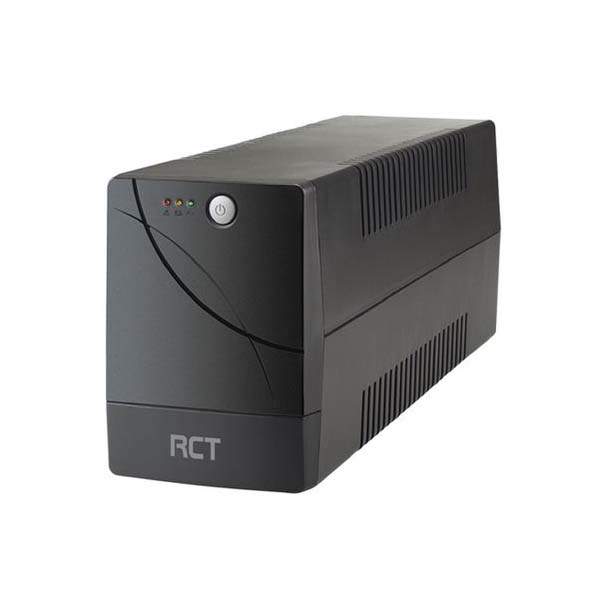

Line Interactive 2000VA 1200W UPS

RCT 2000VA Line Interactive UPS - 1200W, LED display, 1 x USB Port with SA Wall Socket

Features:

Rct-2000va

• Fast charging in 4 hours
• built-in excellent microprocessor controller
• boost and buck avr for voltage stabilization
• free monitoring software download

Model - rct-2000va
Capacity - 2000 va / 1200 w

Input

• Voltage - 110/120 vac or 220/230/240 vac
• Voltage range - 81-145 vac / 162-290 vac
• Frequency range - 60/50 hz (auto sensing)

Output

• Output voltage - 110/120 vac or 220/230/240 vac
• Ac voltage regulation (batt. Mode) - ±10%
• Frequency range (batt. Mode) - 60 hz or 50 hz ±1 hz
• Transfer time - typical 2-6 ms, 10ms max.
• Waveform (batt. Mode) - simulated sinewave

Battery

• Battery type & number - 12 v/9 ah x 2
• Typical recharge time - 4-6 hours recover to 90% capacity

Protection
Full protection - overload, discharge, and overcharge protection

Indicators

• Ac mode - green lighting
• Battery mode - yellow flashing
• Fault - red lighting

Alarm

• Battery mode - sounding every 10 seconds
• Low battery - sounding every second
• Overload - sounding every 0.5 second
• Battery replacement alarm - every 2 seconds
• Fault - continuously sounding

Physical

• Dimension, d x w x h (mm) - 397 x 146 x 205
• Net weight (kgs) - 11.5

Management
Usb port -
Supports windows2000/2003/xp/vista/2008, windows 7, linux, unix, and mac

Specifications:

Product Code	RCT-2000VAS
Technology Type	Line Interactive
Power Rating	2,000 VA
Maximum Load	1,200 watts
Output Voltage (max)	240 Volts
Physical Dimensions
Height	205 mm
Width	146 mm
Depth	397 mm
Weight	12 kg
