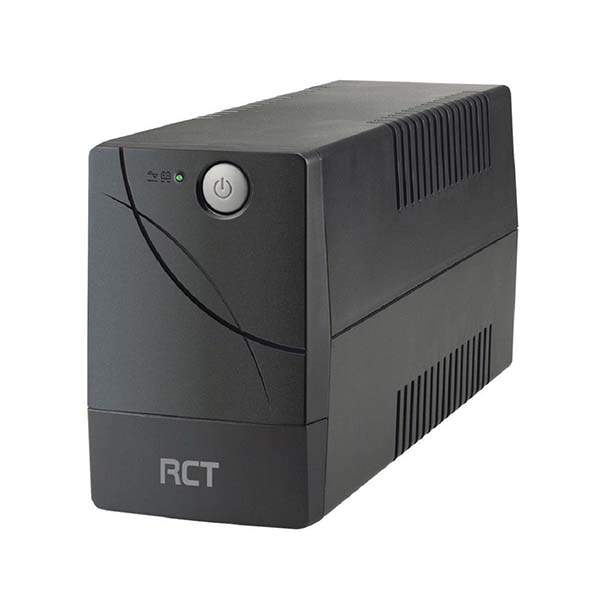

RCT 650VA 360W Line Interactive UPS

RCT 650VA Line Interactive UPS - 360 W, LED display, 1 x USB Port with SA Wall Socket

Features:

Rct-650va

• Fast charging in 4 hours
• built-in excellent microprocessor controller
• boost and buck avr for voltage stabilization
• free monitoring software download

Model - rct-650va
Capacity - 650 va / 360 w

Input

• Voltage - 110/120 vac or 220/230/240 vac
• Voltage range - 81-145 vac / 162-290 vac
• Frequency range - 60/50 hz (auto sensing)

Output

• Output voltage - 110/120 vac or 220/230/240 vac
• Ac voltage regulation (batt. Mode) - %
• Frequency range (batt. Mode) - 60 hz or 50 hz hz
• Transfer time - typical 2-6 ms, 10ms max.
• Waveform (batt. Mode) - simulated sinewave

Battery

• Battery type & number - 12 v/7 ah x 1
• Typical recharge time - 4-6 hours recover to 90% capacity

Protection
Full protection - overload, discharge, and overcharge protection

Indicators

• Ac mode - green lighting
• Battery mode - yellow flashing
• Fault - red lighting

Alarm

• Battery mode - sounding every 10 seconds
• Low battery - sounding every second
• Overload - sounding every 0.5 second
• Battery replacement alarm - every 2 seconds
• Fault - continuously sounding

Physical

• Dimension, d x w x h (mm) - 287 x 100 x 142
• Net weight (kgs) - 4.25

Management

• Usb port -
• Supports windows2000/2003/xp/vista/2008, windows 7, linux, unix, and mac

Specifications:

Product Code	RCT-650VAS
Technology Type	Line Interactive
Power Rating	650 VA
Maximum Load	360 watts
Output Voltage (max)	240 Volts
Backup Power
Physical Dimensions
Height	142 mm
Width	100 mm
Depth	287 mm
Weight	4 kg
