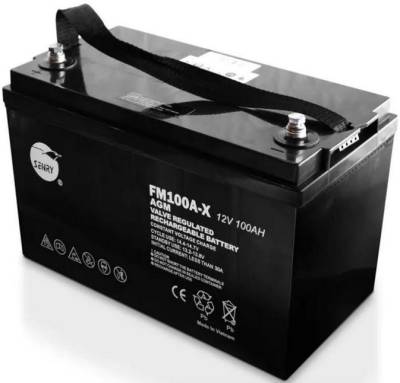

RCT SENRY FM100A-X FULLY-SEAL LEAD ACID Battery *6 month warranty or rated cycles, whichever comes first

Overview:

AGM Technology for a maintenance-free, leak-proof battery that can be mounted in any orientation

Features:

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer-designed lead, calcium tin alloy grid for high power density
• Long service life, float or cyclic applications
• Maintenance-free operation
• Low self-discharge
• The rechargeable batteries are lead-lead dioxide systems
• The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus mmobilized
• Should the battery be accidentally overcharged producing hydrogen and oxygen
• Special one-way valves allow the gases to escape thus avoiding excessive pressure build-up
• Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leakproof and usable in any position

Specifications:

Product Code	FM100A-X
Details
Product Code	RCT BAT FM100A-X
Nominal Voltage	12V
Number of cell	6
Design Life	10 years
Nominal Capacity	77°F(25°C)
10 hour rate (10.0A, 10.8V)	100Ah
5 hour rate (17.5A, 10.5V)	87.5Ah
1 hour rate (66.2A, 9.6V)	66.2Ah
Internal Resistance
Fully Charged battery 77°F(25°C)	=5.7 mOhms
Self-Discharge
Self-Discharge	3% of capacity declined per month at 20°C(average)
Operating Temperature Range
Discharge	-20~60°C
Charge	-10~60°C
Storage	-20~60°C
Max. Discharge Current 77°F(25°C)	900A(5s)
Short Circuit Current	2100A
Charge Methods
Cycle use	2.40-2.45VPC
Maximum charging current	30.0A
Temperature compensation	-30mV/°C
Standby use	2.20-2.30VPC
Temperature compensation	-20mV/°C
