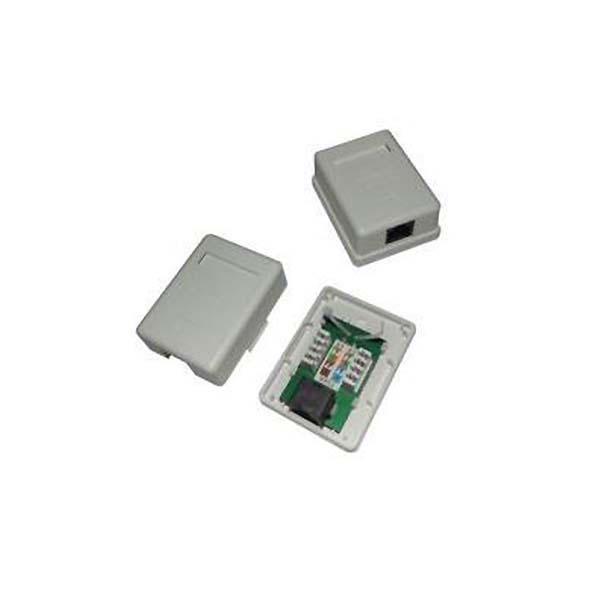

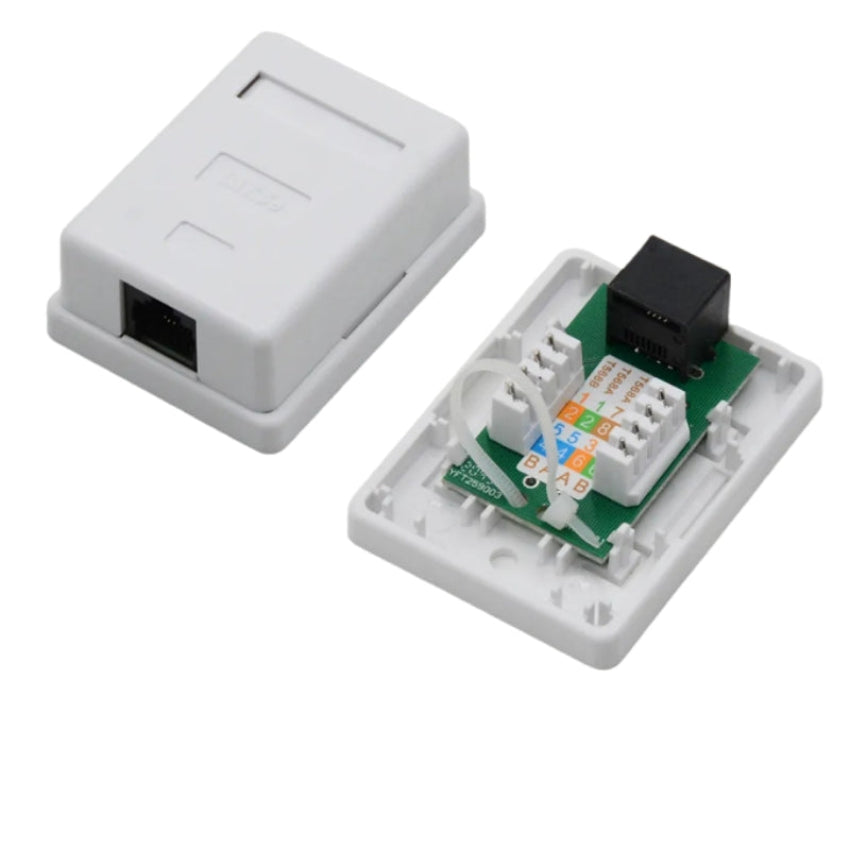

RJ45 WALL BOX SINGLE-NEW-NET004

110/KRONE Universal IDC connector provides vertical termination 22-26 AWG FTP solid wire

Compatible with T568A wiring with Category 5 enhanced requirement

Category: CAT5E or CAT6 Capacity & Size: Single Port LxWxH:49.2X65.8X26MMDouble Port LxWxH:621X59.6X26MM

Mechanical:

Housing Material: ABS Insert Material: ABS PCB Material: FR-4 T=16mm Contact Material: Phosphor Bronze Stamp Pin T=0.35mm IDC Contact Material: Phosphor Bronze T=0.5mm with Tin Plating RJ45 Jack Life: 2750 Times IDC Life: z200 Times Wire: AWG 22-24 Retentiveness of insertion structure:50N 60:5s

Electrical:

Voltage Rating: 125 VAC RMS Current Rating: 1.5 AMP Contact Resistance: 100 Milliohms Max Insulation Resistance:1000 Megohms Min 500 VDC5 Dielectric Strength:750 VAC RMS 60Hz, 1Min

110/KRONE Universal IDC connector provides vertical termination 22-26 AWG FTP solid wire

Compatible with T568A wiring with Category 5 enhanced requirement

Category: CAT5E or CAT6 Capacity & Size: Single Port LxWxH:49.2X65.8X26MMDouble Port LxWxH:621X59.6X26MM

Mechanical:

Housing Material: ABS Insert Material: ABS PCB Material: FR-4 T=16mm Contact Material: Phosphor Bronze Stamp Pin T=0.35mm IDC Contact Material: Phosphor Bronze T=0.5mm with Tin Plating RJ45 Jack Life: 2750 Times IDC Life: z200 Times Wire: AWG 22-24 Retentiveness of insertion structure:50N 60:5s

Electrical:

Voltage Rating: 125 VAC RMS Current Rating: 1.5 AMP Contact Resistance: 100 Milliohms Max Insulation Resistance:1000 Megohms Min 500 VDC5. Dielectric Strength:750 VAC RMS 60Hz, 1Min C6 Permanent Link: Conform to ANSI/TIA/EIA-568 C.2

Environmental:

Storage:0°C TO +50°C Operation:-10°C TO +30°C C6 Permanent Link: Conform to ANSI/TIA/EIA-568 C.2

Environmental:

Storage:0°C TO +50°C Operation:-10°C TO +30°C
