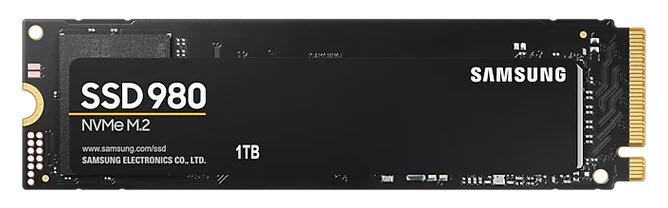

Samsung MZ-V8V1T0BW 980 GEN 3.0 X 4 NVMe 1.3c 1 TB SSD, Read Speed up to 3500 MB/s, Write Speed up to 3000 MB/s, 600 TBW, V-Nand

Features:

Upgrade to breathtaking NVMe speed
It's time to maximize your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is the smart choice for outstanding SSD performance, and it's all backed by an NVMe interface and PCIe 3.0 technology.

Packed with speed
Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving high-speed sequential read/write speeds up to 3,500/3,000 MB/s*, over 6.2x the speed of SATA SSDs.

Keep moving with Full Power Mode
Keep your SSD running at peak level for nonstop, consistent high performance with Full Power Mode. Switch it on through Samsung Magician software to always keep your SSD in active mode. Instantly jump right back to intensive work with huge files, graphics-heavy games, or even normal PC usage.

Built for the long run
Keep your SSD running at peak level for nonstop, consistent high performance with Full Power Mode. Switch it on through Samsung Magician software to always keep your SSD in active mode. Jump right back to intensive work with huge files, graphics-heavy games, or even normal PC usage.

Reliable thermal control
High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.

Smart thermal solution
Embedded with Samsung's cutting-edge thermal control algorithm, the 980 manages heat on its own to deliver durable and reliable performance. To minimize performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980's temperature at optimal levels.

Samsung Magician software
Unlock the full power of the 980 with Samsung Magician's intuitive yet advanced optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.

World's No. 1 Flash Memory
Experience superb performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

Specifications:

Product Code	MZ-V8V1T0BW
General Feature
Application	Client PCs
Capacity	1, 000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor	M.2 (2280)
Interface	PCIe Gen 3.0 x4, NVMe 1.4
Dimension (WxHxD)	80.15 x 22.15 x 2.38 (mm)
Weight	Max 8.0 g Weight
Storage Memory	Samsung V-NAND 3-bit MLC
Controller	Samsung Pablo Controller
Cache Memory	HMB(Host Memory Buffer)
Special Feature
TRIM Support	Supported
S.M.A.R.T Support	Supported
GC (Garbage Collection)	Auto Garbage Collection Algorithm
Encryption Support	AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support	Not supported
Device Sleep Mode Support	Yes
Performance
Sequential Read	Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
Sequential Write	Up to 3,000 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32)	Up to 500,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD32)	Up to 480,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1)	Up to 17,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1)	Up to 54,000 IOPS * Performance may vary based on system hardware & configuration
Environment
Average Power Consumption (system level)	*Average: 4.6 W*Maximum: 5.3 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)	Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage	3.3 V ± 5 % Allowable voltage
Reliability (MTBF)	1.5 Million Hours Reliability (MTBF)
Operating Temperature	0 - 70 °C Operating Temperature
Shock	1,500 G & 0.5 ms (Half sine)
Accessories
Installation Kit	Not Available
Software
Management SW	Magician Software for SSD management
