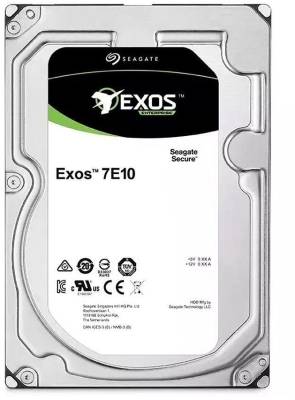

Seagate Exos 7E10 2TB 7200rpm 3.5" SAS SED 512e/4Kn Hard Disk Drive

Seagate Exos 7E10 2TB 7200rpm 3.5" SAS SED 512e/4Kn Hard Disk Drive, 6Gb/s, 256MB Cache, 7200rpm, 236MB/s Maximum sustained transfer rate OD, 4.16 ms average Latency, ST2000NM001B

Specifications:

Product Code	ST2000NM001B
Specifications
Capacity	2TB
Standard	ST2000NM001B
PowerBalance Model ∗∗	-
Seagate Secure SED Model ∗∗	ST2000NM007B
Seagate Secure SED-FIPS 140-3 Model ∗∗	-
**not all models will be generally offered as standard configurations	-
Features
Protection Information (T10 DIF)	Yes
SuperParity	Yes
Low Halogen	Yes
PowerChoice Technology	Yes
PowerBalance Technology	Yes
Cache, Multi-segmented (MB)	256
Advanced Write Caching (8M internal NOR flash)	Yes
Reliability/Data Integrity
Vibration, Non-operating: 10 Hz to 500 Hz (Grms)	2.27
Mean Time Between Failures (MTBF, hours)	2000000
Reliability Rating @ Full 24 x 7 Operation (AFR)	0.44%
Non-recoverable Read Errors per Bits Read	1 sector per 10E15
Power-On Hours per Year	8760
Bytes per Sector	512
Performance
Spindle Speed (RPM)	7200
Interface Access Speed (Gb/s)	12.0, 6.0, 3.0
Max. Sustained Transfer Rate OD	236MB/s
Average Latency (ms)	4.16
Interface Ports	Dual
Rotational Vibration @ 1,500 Hz (rad/s²)	12.5
Power Consumption
Idle Power, Average (W)	5.9
Typical Operating, Random Read (W)	10.3
Power Supply Requirements	+12 V and +5 V
Environmental
Temperature, Operating (°C) Drive Reported	5 ~ 60
Shock, Operating 2 ms Read/Write (Gs)	70/40 Gs
Shock, Non-operating, (1 ms/2 ms) (Gs)	150/300
Physical
Height (in/mm, max)	1.028 in/26.11 mm
Width (in/mm, max)	4.01 in/101.85 mm
Depth (in/mm, max)	5.787 in/147 mm
Weight (lb/g)	620 g/1.37 lb
Carton Unit Quantity	20
Cartons per Pallet / Cartons per Layer	40/8
