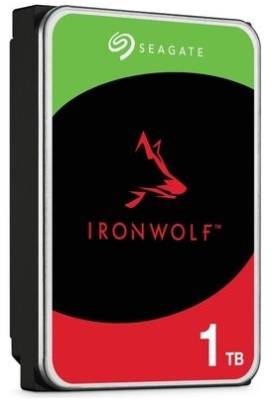

Seagate Ironwolf 1TB 3.5" SATA 6Gb/s NAS Hard Disk Drive

Seagate Ironwolf ST1000VN008 1TB 3.5" SATA 6Gb/s NAS Hard Disk Drive, 1-8 bays Drive bays supported, CMR recording technology, 180MB/s Maximum sustained transfer rate OD (MB/s), 5400 rpm spindle speed, 256 MB Cache

Specifications:

Product Code	ST1000VN008
Specifications	1TB
Capacity	1TB
Standard Model Number	ST1000VN008
Interface	SATA 6Gb/s
Features and Performance
Drive Bays Supported	1-8 Bays
Recording Technology	CMR
Drive Design (Air or Helium)	Air
Workload Rate Limit (WRL)	180
Rotational Vibration (RV) Sensor	No
Dual-Plane Balance	Yes
Error Recovery Control	Yes
Max. Sustained Transfer Rate OD (MB/s)	180MB/s
Spindle Speed (RPM)	5400
Cache (MB)	256
Reliability
Load/Unload Cycles	600000
Nonrecoverable Read Errors Rate, Max	1 per 10E14
Power-On Hours	8760
Mean Time Between Failures (MTBF, hours)	1000000
Power Management
Startup Current, Typical (12V, A)	1.8
Average Operating Power	3.7
Idle Power Average (W)	2.5W
Standby Mode/Sleep Mode, Typical (W)	0.25/0.25
Voltage Tolerance, Inc. Noise (5V / 12V)	±5% / ±10%
Environmental/Temperature
Operating Temperature (ambient, min°C)	0
Operating Temperature (drive reported, max °C)	65
Nonoperating Temperature (ambient, min / max °C)	-40 / 70
Environmental/Shock
Shock, Operating/Nonoperating: 2ms (max)	80Gs/300Gs
Environmental/Acoustics
Acoustics, Idle (typical, measured in Idle 1 state) (dBA)	21
Acoustics, Seek (typical) (dBA)	23
Physical
Height (mm/in)	20.20mm/0.795in
Width (mm/in, max)	101.85mm/4.010in
Depth (mm/in, max)	146.99mm/5.787in
