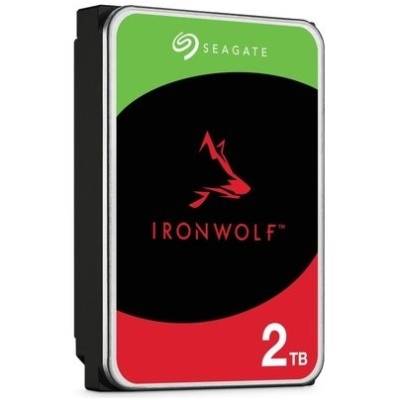

Seagate Ironwolf 2TB 3.5" SATA 6Gb/s NAS Hard Disk Drive NAS drives, 1-8 bays Drive bays supported, CMR recording technology, 180MB/s Maximum sustained transfer rate OD, 256 MB Cache, ST2000VN003

Specifications:

Product Code	ST2000VN003
Specifications	2TB
Capacity	2TB
Standard Model Number	ST2000VN003
Interface	SATA 6Gb/s
Features and Performance
Drive Bays Supported	1-8 Bays
Recording Technology	CMR
Drive Design (Air or Helium)	Air
Workload Rate Limit (WRL)	180
Rotational Vibration (RV) Sensor	Yes
Dual-Plane Balance	Yes
Error Recovery Control	Yes
Max. Sustained Transfer Rate OD (MB/s)	180MB/s
Spindle Speed (RPM)	5400
Cache (MB)	256
Reliability
Load/Unload Cycles	600000
Nonrecoverable Read Errors Rate, Max	1 per 10E14
Power-On Hours	8760
Mean Time Between Failures (MTBF, hours)	1000000
Power Management
Startup Current, Typical (12V, A)	1.8
Average Operating Power	3.1
Idle Power Average (W)	2.8W
Standby Mode/Sleep Mode, Typical (W)	0.25/0.25
Voltage Tolerance, Inc. Noise (5V / 12V)	±5% / ±10%
Environmental/Temperature
Operating Temperature (ambient, min°C)	0
Operating Temperature (drive reported, max °C)	65
Nonoperating Temperature (ambient, min / max °C)	-40 / 70
Environmental/Shock
Shock, Operating/Nonoperating: 2ms (max)	80Gs/300Gs
Environmental/Acoustics
Acoustics, Idle (typical, measured in Idle 1 state) (dBA)	20
Acoustics, Seek (typical) (dBA)	21
Physical
Height (mm/in)	20.20mm/0.795in
Width (mm/in, max)	101.85mm/4.010in
Depth (mm/in, max)	146.99mm/5.787in
Weight (g/lb, typical)	415g/0.915lb
Carton Unit Quantity	25
Cartons per Pallet/Cartons per Layer	40/8
