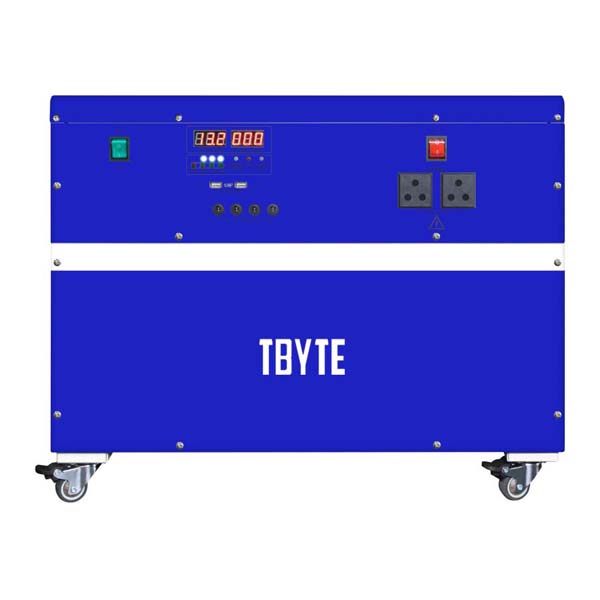

The TBYTE SY1500 1500W Inverter with 12V 120Ah Battery is a portable backup power solution designed to provide reliable AC power when mains electricity is unavailable. Its 1500W output and pure sine wave technology make it suitable for compatible home and office devices within its supported load capacity.
The system combines an inverter, integrated charge and discharge control and a built-in maintenance-free 12V 120Ah lead-acid battery. Dual charging support allows the battery to be charged using an AC adapter or a compatible optional solar panel.
Key Features
- 1500W power output
- Pure sine wave AC output
- Built-in 12V 120Ah maintenance-free lead-acid battery
- Integrated charge and discharge control
- AC and optional solar charging support
- PWM 30A solar charger
- 2 x 220V round AC connections
- 2 x 5V USB connections
- Transfer time of less than 8ms between AC and battery operation
- Efficiency greater than 85%
- LED/LCD display
- Overload, over-current and output short-circuit protection
- Battery over-voltage, low-voltage and over-temperature protection
- Acoustic noise level below 45dB
Applications
The TBYTE SY1500 is designed for backup power applications in homes and small offices. It can provide AC power to compatible devices within its supported load capacity and includes USB connections for charging compatible 5V devices. Optional solar charging also makes it suitable for applications where compatible solar power is available.
Compatibility
The inverter provides 220V AC output for compatible AC-powered devices and 5V USB connections for compatible USB-powered equipment. Connected devices must remain within the inverter's supported load capacity. For solar charging, the specified solar panel input is PV 30VDC with up to 400W. The solar panel is optional and is not specified as included.
Important: The power cord must be purchased separately.
Technical Specifications
| Brand |
TBYTE |
| Model |
SY1500 |
| Product |
1500W Inverter with 12V 120Ah Battery |
| Wattage |
1500W |
| Waveform |
Pure Sine Wave |
| Input Voltage |
156–265VAC (78–132VAC) |
| Input Frequency |
50/60Hz ±5% |
| Output Voltage |
AC 220V ±5% / AC 110V ±5% (Battery Mode) |
| Transfer Time |
<8ms (AC-DC/DC-AC) |
| Output Voltage Adjust |
10% RMS |
| Efficiency |
>85% |
| AC Connections |
2 x 220V round connections |
| USB Connections |
2 x 5V USB, 5V/1A or 5V/2A |
| Battery Type |
Lead-acid battery |
| Battery Capacity |
120Ah |
| Rated Battery Voltage |
12V |
| Constant Voltage Charging Voltage |
14.2V |
| Float Charging Voltage |
13.75V |
| Solar Charger |
PWM 30A |
| Solar Panel Specification |
PV 30VDC, 400W |
| Solar Panel Included |
No – Optional |
| Protection |
Overload, over-current, output short circuit, battery over-voltage, low voltage and over-temperature |
| Display |
LED/LCD |
| Operating Temperature |
0–40°C |
| Storage Temperature |
-15–40°C |
| Relative Temperature |
-10–90, non-condensing (manufacturer specification) |
| Acoustic Noise |
<45dB |
| Power Cord |
Purchased separately |
| Warranty |
6 months |
Why Choose This Product?
The TBYTE SY1500 combines a 1500W pure sine wave inverter and 12V 120Ah battery in one practical backup power system. Its integrated battery, fast transfer time, multiple protection features and dual AC or optional solar charging capability provide a versatile solution for maintaining power to compatible devices during electricity interruptions.
Frequently Asked Questions
What battery does the TBYTE SY1500 use?
The SY1500 has a built-in maintenance-free 12V 120Ah lead-acid battery.
Does the TBYTE SY1500 produce pure sine wave power?
Yes. The inverter produces a pure sine wave output and has a rated power output of 1500W.
Can the TBYTE SY1500 be charged with solar panels?
Yes. It features a PWM 30A solar charger and specifies a PV input of 30VDC and 400W. The solar panel is optional.
What devices can I connect to the SY1500?
The inverter can power compatible 220V AC devices within its supported load capacity. It also provides two 5V USB connections for compatible USB-powered devices.
Is a power cord supplied with the TBYTE SY1500?
No. According to the supplied product information, the power cord must be purchased separately.
