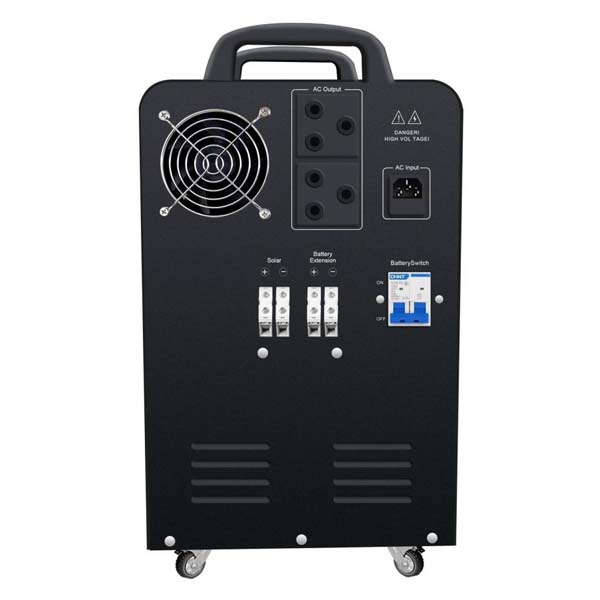

All-in-one trolley inverter with integrated battery and solar charge controller. Portable backup power for essentials during load shedding with clear status display and multiple protection features.

Key Features

• Pure sine wave output for sensitive electronics
• Integrated photovoltaic (PV) charge controller (PWM)
• Intelligent charge/discharge management to protect the battery
• Color display for real-time operating status
• Overload, over-voltage, over-temperature, and short-circuit protection
• Selectable priority modes: DC, AC, or Solar

Inverter Output

• Rated power: 500 W
• Output voltage: 110 VAC / 220 VAC
• Output frequency: 50 / 60 Hz
• Waveform: pure sine wave

Battery

• Type: Lead-acid (VRLA gel), deep cycle
• In-built battery: 12 V, 65 Ah
• System voltage: 12 V (model range may include 24 V variants)

AC Charging

• Mains charging supported (110 VAC / 220 VAC)
• Charge current: 8 A

Solar Input (PWM Controller)

• Maximum PV voltage: 25 V DC
• Charge voltage: 13.7 V DC
• Rated charge current: 5–10 A (PWM)
• Maximum PV power: 360 Wp
• Overcharge protection: 14.2 V DC (recovery 14.0 V DC)
• Float charge voltage: 13.7 V DC

DC Outputs

• USB: 2 × 5 V DC (max 2 A total)
• 12 V DC ports: 2 × 12 V (max 2 A per port)

Protection Thresholds

• High-voltage protection: 16 V DC (recovery 15.2 V DC)
• Low-voltage protection: 11 V DC (recovery 13 V DC)

Environmental

• Exhaust fan start temperature: > 45 °C
• Operating temperature: 0–40 °C
• Storage temperature: −25–55 °C
• Humidity (operation/storage): 0–90% (non-condensing)
