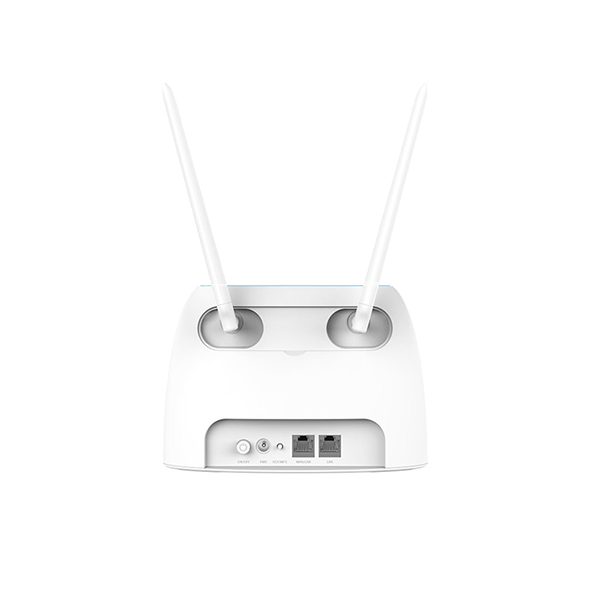

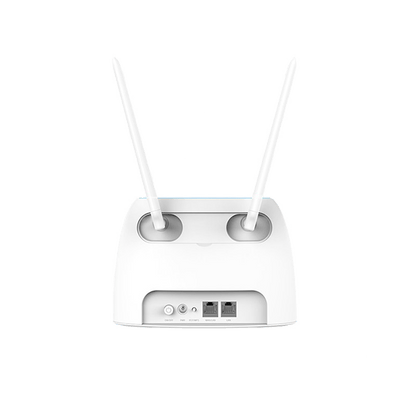

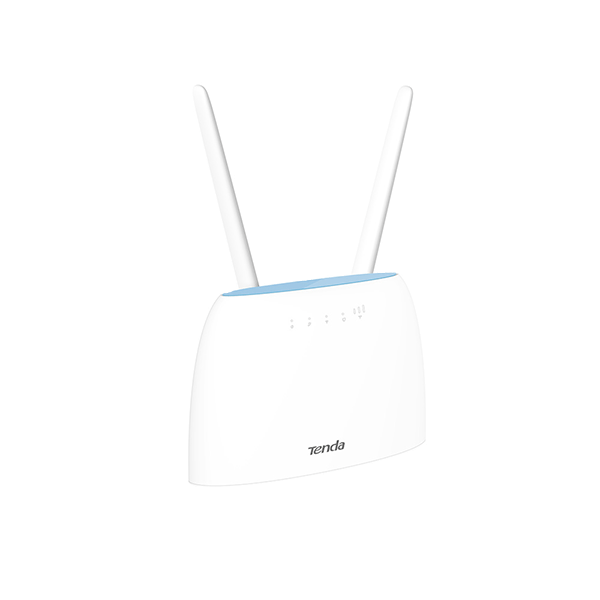

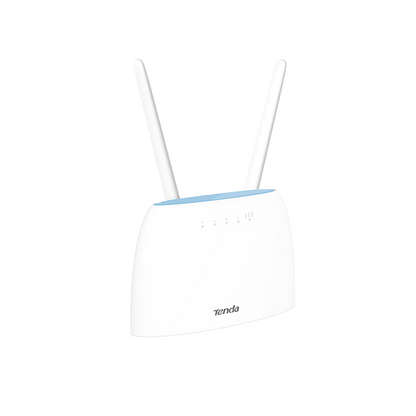

Tenda 4G09 AC1200 Dual-Band Wi-Fi 4G+ LTE Router

Overview:

4G09 share the latest 4G+ LTE Advanced network,Simply plug in SIM card and share your 4G LTE or 3G Internet connection through a secure wireless network or any of the two Ethernet ports.

Features:

Wiring free Broadband access wherever you are
With LTE Advanced signal coverage for best performance and allows you to receive Internet access without cable and fiber ,it is the ideal choice for remote areas such as rural and suburban ,temporary store,holiday home ,giving devices ability to access to the Internet wherever and whenever the user is located.

Boost 4G+ boost faster broadband experience
Powered by 4G+ CAT6 technology,It produces a faster and better broadband experience with speeds up to 300 Mb/s in downlink,bring you the best internet experience.

AC1200 Dual-band Wi-Fi ultra-fast network for more devices
Using powerful 802.11AC Wi-Fi technology,provide wireless speed up to 1200Mbps that enable connected devices could achieve ultra-fast experence ,it's the ideal choice for lag-free HD streaming, online gaming and more.

Support Fiber Internet Up to 1000Mbps
Equipped with full gigabit ports, it supports up to 1000Mbps bandwith access.

Instantly access a mobile network with a SIM card
The built-in 4G module enables you to access a mobile network instantly just with an authorized SIM card bought from carrier

Specifications:

Product Code	4G09
Model	4G09
4G Cartgory	LTE CAT.6
4G Mobile Bands	4G FDD LTE:B1/B2/B3/B4/B5/B7/B8/B20/B28AB
	4G TDD-LTE:Band38/Band40
	3G WCDMA:B1/B2/B5/B8
Max 4G+ speed	DL:300Mbps
	UL:50Mbps
Wi-Fi standards	802.11b/g/n, 802.11ac
Wi-Fi frequency	2.4GHz, 5GHz
Wi-Fi speed	2.4GHz:300Mbps
	5GHz:867Mbps
Wi-Fi transmit Power	2.4GHz:up to 20dBm
	5GHz: up to 23dBm
Interface	1 x 10/100/1000 Mbps LAN/WAN Port
	1 x 10/100/1000 Mbps LAN Port
	1 x 2FF SIM Card Slot
Button	Power on/off
	WPS/Reset
Antenna	2 detachable 4G/3G Antennas
	2 Internal Wi-Fi Antennas
LED	Power
	Wi-Fi
	LAN
	Internet
	4G/3G Signal strength(3 Bars)
Dimension	185*126*60mm(L*W*H)
Weight	About 350g
Power Supply	Power adapter:Input power AC 110V-220V 50/60Hz
	Output power:DC 12V==1.5A
WAN Type	4G/3G or Wired
4G/3G Features	Auto-APN
	Auto dial-up
	Roaming
	SMS(Send/Receive/Delete)
	USSD
	Data limted
	PIN Management
	Failover
Wi-Fi functions	Broadcast and Hide Wi-Fi name
	Priority 5GHz
	Guest network
	Wi-Fi schedule
Wi-Fi security	WEP, WPA-PSK, WPA2-PSK, WPA/WPA2
Software features	APP/Local/remote management
	Parental control
	DHCP(DHCP Server and Client)
	Virtual Server(UPnP/DMZ/Port Forwarding)
	DDNS(DynDns, 88ip)
	VPN(PPTP Client/L2TP Client/PPTP Server)
	Firewall
	QOS
	Upgrade firmware from local or OTA
	IPV4/IPV6
	TR069
Certification	FCC Granted
	CE Granted
	ROHS Granted
Temperature	Operating Temperature: 0°C~40°C
	Storage Temperature: -30ºC~70ºC
Humidity	Operating Humidity: 10% ~ 90% RH Non-condensing
	Storage Humidity: 5% ~ 90% RH Non-condensing
Package Content	1 * 4G+ LTE Router
	2 * Detachable antennas
	1 * Ethernet cable
	1 * Power adapter
	1 * Quick Installation Guide
