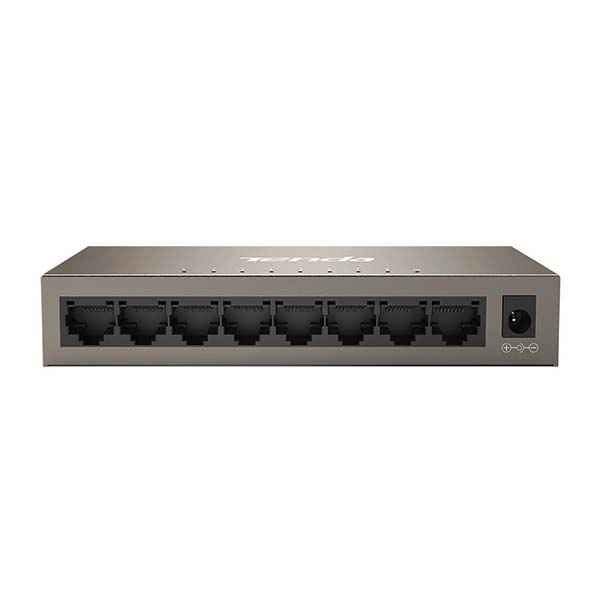

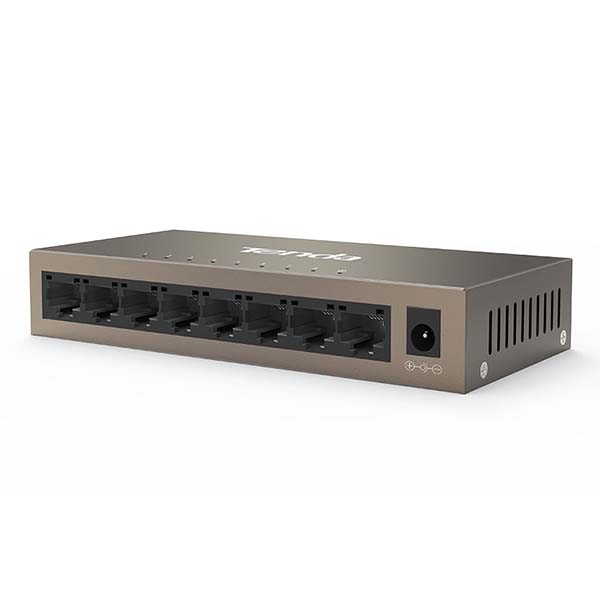

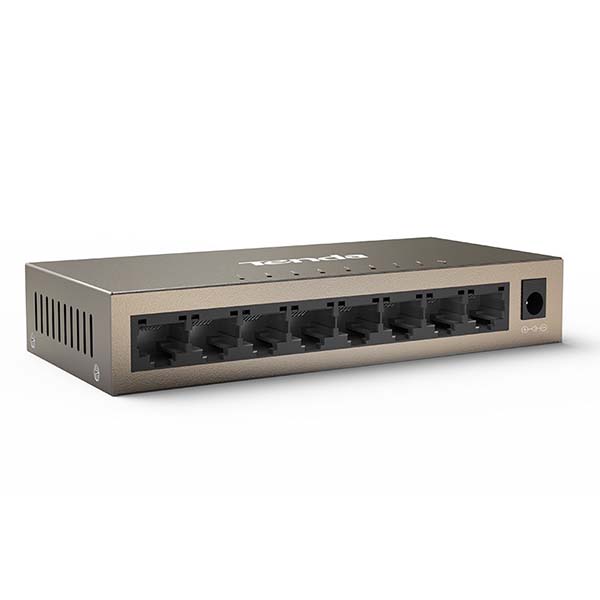

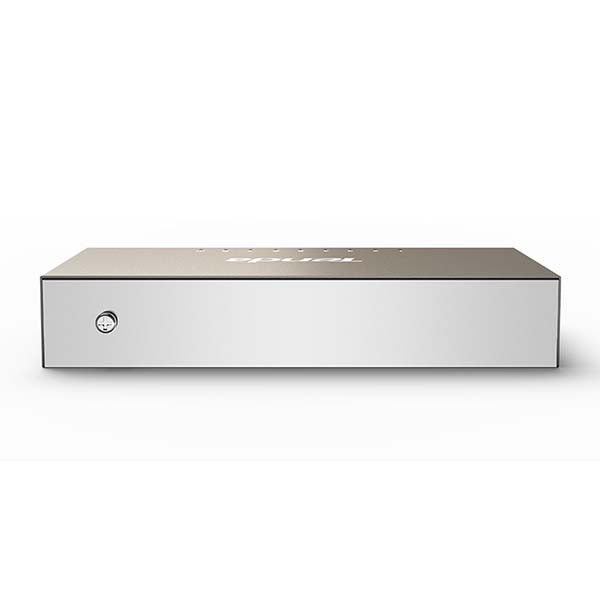

Tenda 8 Port Gigabit Desktop Switch, 8x 10/100/1000m RJ45 ports

Overview:

TEG1008M is a high-performance 8-port full Gigabit desktop Ethernet switch designed for Tenda's high-speed cascading scenarios for small and medium-sized surveillance, small and medium-sized businesses. Designed with a mini steel shell, it does not take up space and has a strong heat dissipation. Provides 8 10/100/1000 Mbps auto-negotiation ports, which increases transmission rate by 10 times, improves large file forwarding rate, and effectively solves problems such as video jams and picture loss in high-definition surveillance environments. The TEG1008M supports desktop/wall mount installation, plug and play, no setup, easy to use, and is ideal for improving network performance.

Features:

Gigabit Speed
8 gigabit ports ensure the speed of the transmission of large files and improve transmission efficiency.

Support 9-12V DC Input
9-12V DC input design,support centralized power supply and monitor power supply.

Wallmount & Plug-n-play
support desktop and wallmount,plug-n-play,easy to use.

Metal Shell, Stable Operation
Full-metal & larger shell ensure effective cooling.

Specifications:

Product Code	TEG1008M
Standard&Protocol	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Interface	8*10/100/1000M RJ45 Ports
Network Media	Cat.5 UTP, Cat.5e UTP or better
Forwarding Rate	10Mbps: 14880pps
	100Mbps: 148800pps
	1000Mbps: 1488000pps
Power	input : AC:190-240V
	50/60Hz DC : 9-12V
Dimension	140*66.5*25.3mm(W*D*H)
LED indicator	1*Power ; 8*Link/Act
Switching Capacity	16Gbps
MAC Address Table	4K
Power Consumption	Max :5W
transmission mode	Store-and-Forward
Protocol	CDMA/CD
MAC Address Learning	Auto learning & auto aging
Temperature	Operating temperature: 0°C~40°C ; Storage temperature: -40°C~70°C
Humidity	Operating humidit: 10%~90% non-condensing ; Storage humidit: 5%~90% non-condensing
Certification	CCC, CE, FCC, RoHS
Operation System	Windows 8 32/64 bit, Windows 7 32/64 bit, Windows xp 32/64 bit, Linux, MAC OS
Package Content	1 * 8-Port 10/100/1000M Ethernet Desktop Switch
	1 * Power adapter
	1 * Quick installation guide
