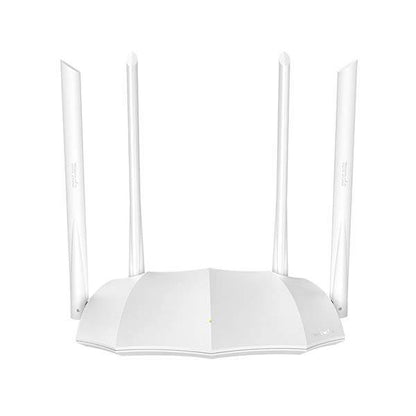

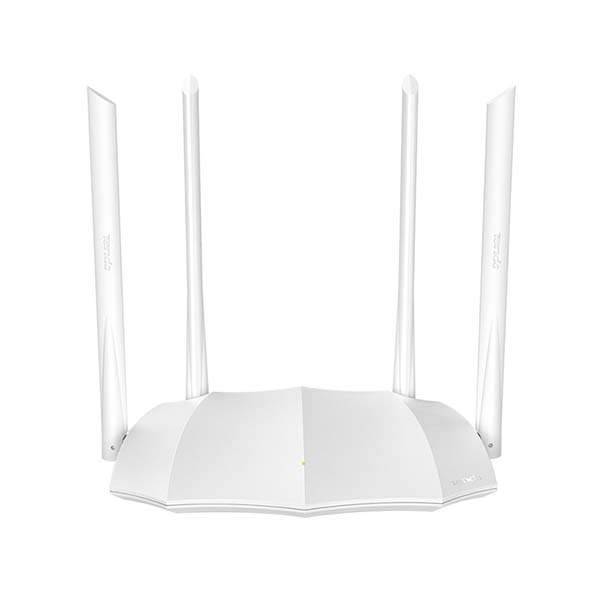

Tenda AC5 Dual-Band Wi-Fi Router

Tenda AC5 Dual-Band Wi-Fi Router is an AC1200 dual-band Wi-Fi router, designed for medium-sized apartments with 100Mbps fibre access. It provides WiFi speed up to 1167 Mbps (5GHz: 867Mbps and 2.4GHz: 300Mbps). Adopted the integrated dual-band technology, combining 2.4GHz and 5GHz signals under one WiFi name. The faster band would be allocated to your devices automatically by our dynamic optimization system. Meanwhile, featured with 4*6dBi high-gain antennas and equipped with a 28nm high-performance CPU, it brings a better internet experience. AC5 supports IPv6 protocol, it can reduce the data transmission time and minimize the lag. Furthermore, the remote management function by the Tenda WiFi App provides the easiest way to manage AC5.

Support Fiber Internet Up to 100Mbps

AC5 is a dual-band WiFi router, that provides speed up to 1167 Mbps (5GHz: 867Mbps and 2.4GHz: 300Mbps) to get the most out of your 100Mbps fibre access, and brings a better internet experience, six times faster than a single-band router.

Smart Traffic Prioritisation

Adopted the integrated dual-band technology, combining 2.4GHz and 5GHz signals under one WiFi name. The faster band would be allocated to your devices automatically by our dynamic optimization system.

Setup in Minutes

The broadband account migration function helps you transfer your account from the original router, getting set up in minutes.

Support IPv6 Protocol

AC5 supports IPv6, it can reduce the data transmission time and minimize the lag, providing a better gaming experience.

Easily Manage Your AC5

Tenda WiFi App provides the easiest way to manage AC5.

Parental Control:

Manage your children's online time and supervise online content via the smart App.

Guest Network:

Using your smartphone easily setups a blacklist and limits the guests' access.

Specifications

Standard & Protocol
IEEE802.3，IEEE802.3u，IEEE802.3ab

Interface
1*10/100Mbps WAN port
3*10/100Mbps LAN ports

Antenna
4*6dBi external high-gain antennas

Button
1*WPS/Reset button

Power
Input： AC 100-240V—50/60Hz
Output： DC 9V 1A

LED
1*LED

Dimension
200x127x33.6mm(L*W*H)

Wireless Standards
IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz

Rate
2.4GHz: 300Mbps
5GHz: 867Mbps

Frequency
2.400 – 2.4835 GHz
5.150 – 5.250 GHz

Wireless Security
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable /Disable

Internet Connection Type
PPPoE, Dynamic IP, Static IP
Support automatic access detection
Supports broadband account automatic transfer

Operating Mode
Wireless Router Mode
AP Mode
Universal Repeater Mode
WISP Mode

DHCP
Server
Client List
Reservation

Virtual Server
Port Forwarding
DMZ Host
UPnP

Security
Client Filter（supports blacklist and white list）
Parental Control（supports blacklist and white list）
Remote Web Management

Firewall
Forbid WAN PING from the internet

DDNS
Support DynDNS, 88ip

Other features
Support IPv6
Broadband management
MAC address clone
System Log
Backup & Restore configurations
Firmware upgrade from local

Temperature

Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.

Humidity
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.

Default Settings
Default Access: tendawifi.com or http://192.168.0.1

Certification
CE， RoHS， FCC， CCC， SRRC，

EIRP Power (Max.)
2.400 – 2.4835 GHz：19.85 dBm (EIRP)
5.150 – 5.250 GHz：22.96dBm (EIRP)

Package Content
Wireless Router*1
Ethernet Cable*1
Power Adapter*1
Installation Guide*1
