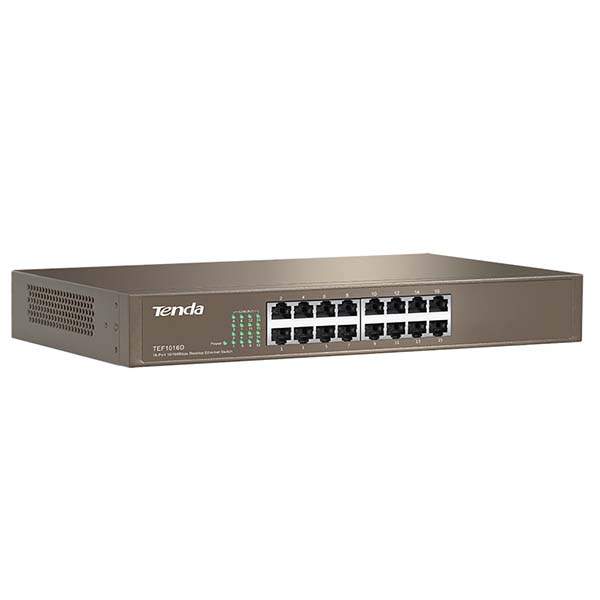

Tenda Steel 10/100 16 Port Network Switch

Tenda Steel 10/100 16 Port Network Switch. Simple Yet Cost-effective Solution for Expanding SMB & Campus Network.

What It Does

The Tenda TEF1016D 16-Port 10/100 Network Switch is specially engineered to provide a simple solution to expand SMB networks and campus networks at the best possible cost. Connect this 16-port switch to a router and add up to twenty-three more computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in a sturdy metal case, it is ideal for years of dependable use.

Features:

• 16 Autosensing 10/100Mbps switched ports with auto MDI/MDI-X crossover detection
• Up to 200Mbps full duplex bandwidth on each port
• Sturdy metal case ideal for years of dependable use
• 4K MAC address table with address Learning and Aging, and Data Flow Control for enhanced transmission
• 6000V lightning protection for power supply
• Support rack mounting
• Support Plug and Play, without any configuration

Space-saving Design for

100-Mbps speed, a switching capacity of up to 3.2Gbps, and non-blocking wire-speed forwarding meet the performance needs for a high speed and smooth network.

Standards & Protocols

Fully compliant with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX.

Stable & Reliable

The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operating! Each port can auto-sense half/full-duplex mode and auto-detect MDI/MDI-X crossover.

Inductive Lightning

Integrating professional circuits, Tenda New 16-Port Unmanaged Fast Switch can protect the power supply from inductive lightning (6KV in Common Mode Protection).

Plug & Play

The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operating! Each port can auto-sense half/full-duplex mode and auto-detect MDI/MDI-X crossover.

Specification

Hardware

Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

LED Indicator
1* Power,16* Link/Act

Interfaces
16*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)

Transmission media
Recommended: CAT5/5e UTP or better

Fan quantity
N/A

Dimension
294.0mmx180.0mmx44.0mm

Material
Metal

Level of protection
Lightning protection for ports: N/A
Lightning protection for power: 6KV

ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode
Store-and-forward

Switch capacity
3.2Gbps

Packet forwarding rate
2.38Mpps

Buffer
1.25Mb

MAC address table
4K

Jumbo frame
N/A

Power
Input: 100-240V AC 50/60Hz

Power consumption
Max:<6W

Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting: support

Environment
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing

Certification
CE, FCC, RoHS

Software

Protocols
CDMA/CD

MAC address learning
Auto-Learning and Auto-Aging

Functions
plug-and-play
