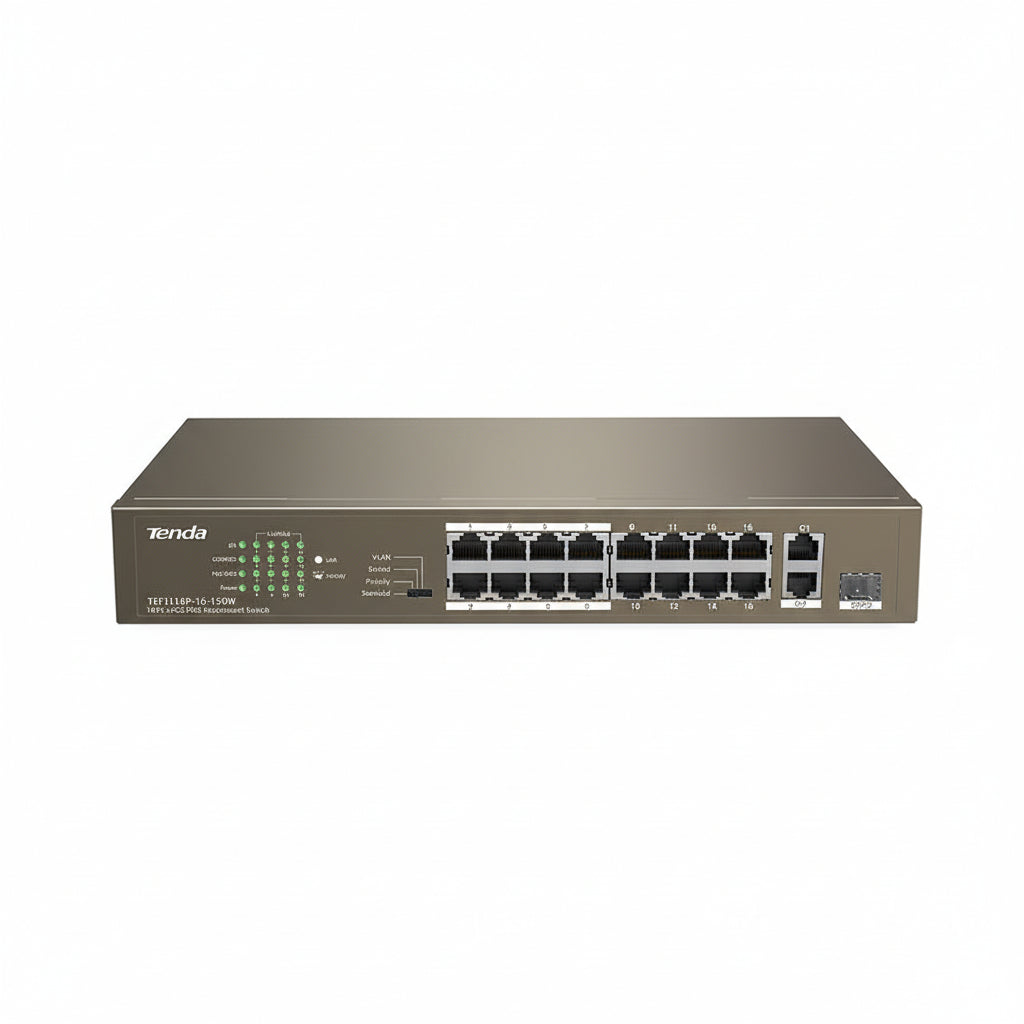

• Front view of the Tenda TEF1118P-16-150W switch showing 16 PoE ports and uplinks.
  • The switch installed in a 1U rack with other surveillance equipment.
  • Close-up of the mode selection switch on the side panel.
  • The SFP combo port with an optical transceiver module installed.
  • A network diagram showing six switches cascaded to support 96 cameras.
1 5

Tenda TEF1118P-16-150W 16-Port Fast Ethernet PoE+ Switch with Gigabit Uplinks

Tenda TEF1118P-16-150W 16-Port Fast Ethernet PoE+ Switch with Gigabit Uplinks

TENDA

R 1,460.00
R 1,460.00
Taxes included. Shipping calculated at checkout.

Online Only

TEF1118P-16-150W

  • Brand / Model: Tenda TEF1118P-16-150W
  • PoE Ports: 16x 10/100BASE-T Fast Ethernet PoE+ (RJ45)
  • Uplink Ports: 2x 10/100/1000BASE-T Gigabit RJ45, 1x Gigabit SFP Combo
  • PoE Budget: 150W total (up to 30W per port, IEEE 802.3af/at)
  • Operating Modes: Standard, Port Priority, Port-Based VLAN, Extend (250m range)
  • Protection: 6kV surge protection, PSE short-circuit protection
  • Switching Capacity: 7.2Gbps
  • Buffer Memory: 3MB
  • Form Factor: Desktop or 1U rack-mountable
  • Use Case: IP surveillance up to 96 cameras via cascading, wireless AP deployment

The Tenda TEF1118P-16-150W is an unmanaged PoE+ switch for surveillance and small business networks, offering four configurable operational modes, extended transmission range, and surge protection in a compact chassis.
