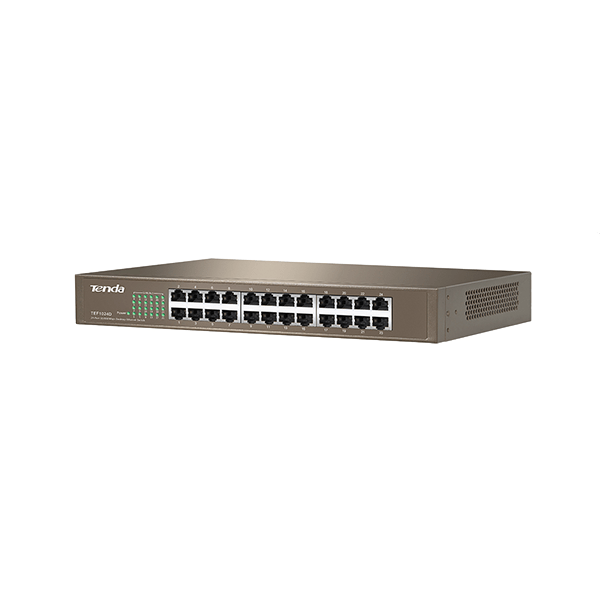

Tenda TEF1024D 24-Port 10/100 Switch

What It Does

The Tenda TEF1024D 24-Port 10/100 Switch is specially engineered to provide a simple solution to expand SMB networks and campus networks at the best possible cost. Connect this 24-port switch to a router and add up to twenty-three more computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in a sturdy metal case, it is ideal for years of dependable use.

Main Features

• 24 Autosensing 10/100Mbps switched ports with auto MDI/MDI-X crossover detection
• Up to 200Mbps full duplex bandwidth on each port
• Sturdy metal case ideal for years of dependable use
• 8K MAC address table with address Learning and Aging, and Data Flow Control for enhanced transmission
• Support 6000V lightning protection for power supply
• Support standard 13/19 inch rack-mountable
• Support Plug and Play，without any configuration

Space-saving Design for Desktop & Rack Installation

The switch is solidly housed in a compact and slim metal case that is easy to position on any flat surface with limited space like a desktop or mount into a rack. Plus, the device features an internal high performance switching power supply.

Standards & Protocols Compliance

Fully compliant with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX.

Stable & Reliable Performance

Dynamic buffering helps balance network load, prevent frame drop and automatically check error frames, ensuring data integrity.

Inductive Lightning Protection

Integrating professional circuits, Tenda New 24-Port Unmanaged Fast Switch can protect the power supply from inducive lightning (6KV in Common Mode Protection).

Plug & Play

The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operating! Each port is able to auto-sense half/full-duplex mode and auto-detect MDI/MDI-X crossover.

Specifications
