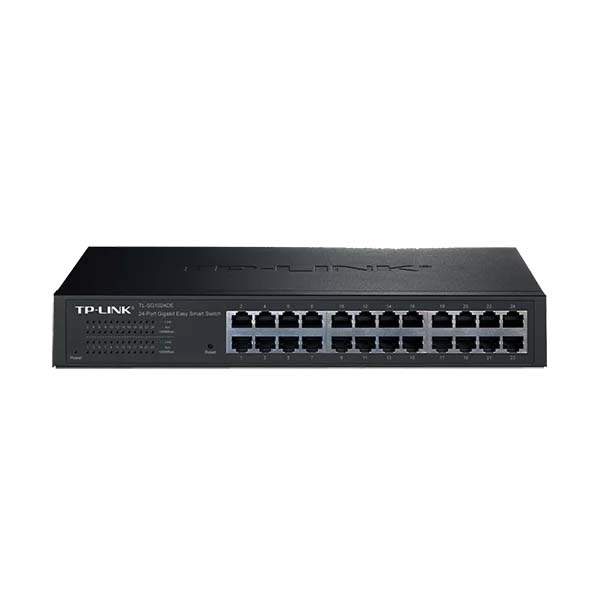

TPLINK 24PORT GBE RACKMOUNT SWITCH - TL-SG1024D

Unmanaged Switch

24-Port Gigabit Desktop/Rackmount Switch

24 10/100/1000Mbps Ports

Innovative Energy-Efficient Technology Saves Power Consumption

Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation

Plug & Play Design

Featured With 24 10/100/1000Mbps Ports

TL-SG1024D greatly expands your Network Capacity, enabling instant large Files Transferring

So, Power Users in the Home, Office, Workgroup, or Creative Production Environment can now move large

Bandwidth-Intensive Files faster

Transfer Graphics, CGI, CAD, or Multimedia Files across the Network Instantly

The TL-SG1024D 24-Port Gigabit Switch provides an easy way to make the Transition to Gigabit Ethernet

All 24 Ports Support Auto MDI/MDIX, no need to worry about the Cable Type

Simply Plug and Play. Moreover, with the Innovative Energy-Efficient Technology

The TL-SG1024D can save up to 20% of the Power Consumption

Making it an eco-friendly solution for your Business Network

HARDWARE FEATURES

Standards And Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)

100BASE-TX/1000BASE-T: UTP Category 5, 5e or above Cable (Maximum 100m)

Fan Quantity: Fanless

Physical Security Lock: No

Power Supply: 100-240VAC, 50/60Hz

Power Consumption: Maximum: 13.1W (220V/50Hz)

Dimensions ( W x D x H ): 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)

Mounting: Rack Mountable

Max. Power Consumption: 13.62W(220V/50Hz)

Max Heat Dissipation: 46.44BTU/h

PERFORMANCE

Switching Capacity: 48Gbps

Packet Forwarding Rate: 35.7Mpps

MAC Address Table: 8K

Advanced Features

Isolation Mode: Ports 1-22

Loop Prevention: Ports 1-24

Jumbo Frame: 10KB

Green Technology: Yes

Transmission Method: Store-and-Forward

OTHERS

Certification: FCC, CE, RoHS

Package Content

24-Port Gigabit Desktop/Rackmount Switch

Power Cord

Installation Guide

Rackmount Kits

Rubber Feet

Environment

Operating Temperature: 0C – 40C (32F – 104F)

Storage Temperature: -40C – 70C (-40F - 158F)

Operating Humidity: 10% - 90% non-condensing

Storage Humidity: 5% - 90% non-condensing
