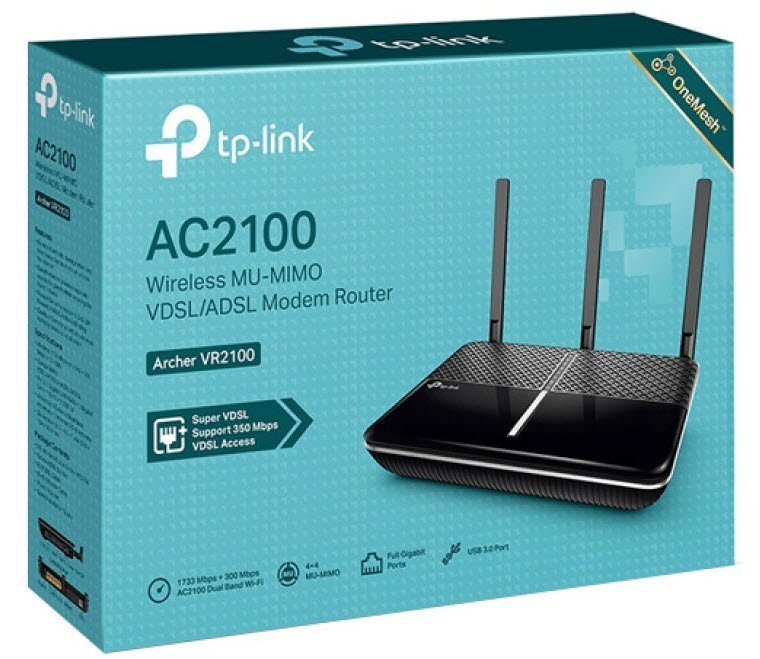

TP-Link Archer VR2100 AC2100 Wireless MU-MIMO VDSL/ADSL Modem Router

Features:

Super VDSL - the Future of Internet Access
The Archer VR2100 features Super VDSL (VDSL2 Profile 35b), the latest generation of DSL technology. Downstream is increased by up to 350 Mbps, 3.5x faster than its VDSL2 predecessor. The integrated DSL port also supports all standard DSL connections. *

Versatile Connectivity
The Archer VR2100 is built to connect you to the internet, no matter your situation. The Ethernet WAN port supports wired connection to cable or fiber modem, letting you take full charge of its wireless capabilities as a router. In case your internet goes down, attach a 3/4G adapter to USB 3.0 port to serve as a backup option so you can get back online in no time.

Enjoy the Network at Full Speed
The Archer VR2100 makes full use of its dual-band Wi-Fi abilities, reaching speeds of up to 1733 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band. Enjoy a total speed of up to 2.1 Gbps to eliminate latency and buffering from your HD streams and lag from online games. Two dedicated Wi-Fi networks support more devices and reduce wireless interference to create stable connections.

4×4 MU-MIMO - Efficient Wi-Fi for Every Device
MU-MIMO technology serves up to four devices at once, reducing wait time, increasing
Wi-Fi throughput for every device and making each stream more efficient.

Supports TP-Link OneMesh™ for Whole-Home Coverage
Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.

Lightning-Fast Wired Connections
One USB 3.0 port provides data transfers up to 10× faster than a traditional USB 2.0 port. Connect external storage devices and share files, photos, and videos at high-speed. As well as 4 Gigabit LAN ports help wired devices achieve peak performance for HD streaming and gaming.

Easy Setup and Management
Set up the Archer VR2100 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

6000V Lightning Protection
Lightning protection shields Archer VR2100 from electrical damage caused by thunderstorms, so even in bad weather, you can enjoy internet with peace of mind.

Secure Surfing
Parental Controls limit the online time and access of specified devices. Guest Network creates a separate Wi-Fi network for visitors, keeping your main network secure.

Quality of Service
Choose devices or activities you want to prioritize on your network with QoS. In just a few taps, you can make sure your laptop or movie stream is first in line for Wi-Fi or Ethernet.

Specifications:

Product Code	TD-ARCHERVR2100
HARDWARE FEATURES
Ports	3 Gigabit LAN Ports, 1 Gigabit LAN/WAN Port, 1 RJ11 Port
	1 USB Port
Button	WPS Button, Reset Button, Power On/Off Button, Wi-Fi Button, LED
	On/Off Button
External Power Supply	12V/1.5A
IEEE Standards	IEEE 802.3, IEEE 802.3u, 802.3ab
VDSL2 Standards	ITU G.993.2, Up to 35b profile (POTS)
	ITU-T G.993.5 (G.vector)
	ITU-T G.998.4 (G.INP)
ADSL Standards	Full-rate ANSI T1.413 Issue 2,
	ITU-T G.992.1(G.DMT)
	ITU-T G.992.2(G.Lite)
ADSL2 Standards	ITU-T G.992.3 (G.DMT.bis)
ADSL2+ Standards	ITU-T G.992.5
Dimensions ( W x D x H )	8.5 x 6.5 x 1.4 in (216 x 164 x 36.8 mm)
Antenna Type	3 External Dual Band Antennas + 1 Internal 5 GHz Antenna
WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	1733 Mbps on 5 GHz, 300Mbps on 2.4 GHz
Transmit Power	<20dBm (2.4 GHz), <23dBm (5 GHz)
Wireless Functions	Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
	encryptions
Wireless Schedule	Support 2.4 GHz and 5 GHz Wireless Schedule
SOFTWARE FEATURES
Security	NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Operating Modes	VDSL/ADSL Modem Router, 3G/4G Router, Wireless Router
Management	Web-Based Configuration (HTTP / HTTPS ), Remote management
	Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update
DHCP	Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding	Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS	DynDns, NO-IP, TP-Link
VPN	OpenVPN, PPTP VPN, IPSec VPN
Protocols	Supports IPv4 and IPv6
ATM/PPP Protocols	ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over
	Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC - Up to 8 PVCs
Advanced Features	Parental Controls, Network Address Translation (NAT), Static
	Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3
Guest Network	2.4 GHz Guest Network, 5 GHz Guest Network
IPSec VPN	Supports up to 10 IPSec VPN tunnels
OTHERS
Certification	CE, RCM, RoHS
Package Contents	DSL Modem Router
	External Splitter
	RJ11 DSL Cable
	RJ45 Ethernet Cable
	Power Adapter
	Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux
	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
	Java-enabled browser
	Subscription with an internet service provider (for internet access)
Environment	Operating Temperature: 0°C~40°C (32°F ~104°F)
	Storage Temperature: -40°C~70°C (-40°F ~158°F)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
