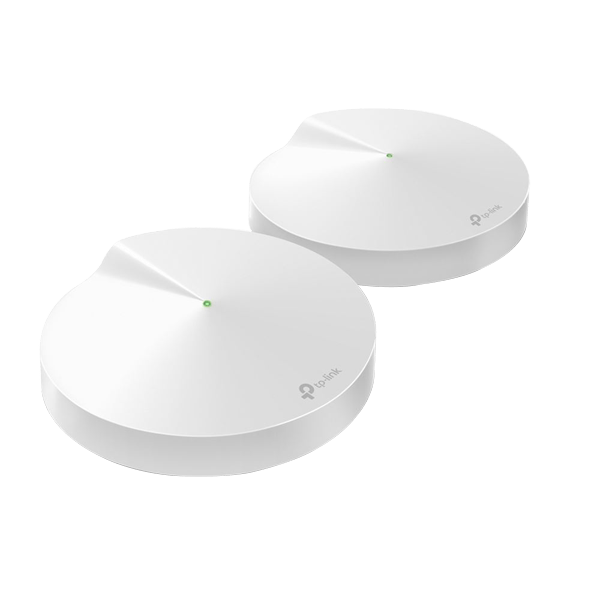

TP-Link Deco M5 AC1300 Whole Home Mesh Wi-Fi System *Note: The Deco Ethernet backhaul feature is based on the standard IEEE 1905.1 protocol. Please use switches that supports IEEE 1905.1

Overview:

Deco is the simplest way to guarantee a strong Wi-Fi signal in every corner of your home. Enjoy fast, stable connections for an army of devices in homes up to 5500 square feet (3-pack) / 3800 square feet (2-pack). Setup couldn’t be easier with the Deco app there to walk you through every step.

Features:

• Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
• With advanced Deco Mesh Technology, units work together to form one unified whole-home network with the same network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds.
• A Deco M5 three-pack delivers Wi-Fi to an area of up to 5500 square feet, while a Deco M5 two-pack delivers up to 3800 square feet. And if that’s not enough, simply add more Decos to the network anytime to increase coverage.
• Deco M5 provides fast and stable connections with speeds of up to 1267Mbps and works with any internet service provider (ISP) and modem.
• Deco can handle traffic from even the busiest of networks, providing lag-free connections for over 100 devices.
• TP-Link HomeCareTM provides a suite of personalized and secure features, including Parental Controls, built-in Antivirus and Quality of Service (QoS).
• Setup is easier than ever with the Deco app there to walk you through every step.

Dead-Zone Killer
Eliminate weak signal areas with whole-home Wi-Fi. No more searching around for a stable connection. Want more coverage? Simply add another Deco.

No More Buffering
Tired of endless loading? With an ever increasing number of bandwidth-hungry gadgets in our homes, you need a network that can rise to the challenge. With network speeds three times faster than the previous generation routers thanks to 802.11ac wireless technology, Deco can provide lag-free connections for over 100 devices.

Seamless Roaming
Decos work together to form one unified Wi-Fi network. Your phone or tablet will automatically connect to the Deco that provides the fastest speeds as you move through your home, creating a truly seamless online experience.

Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco will take care of the rest, getting your network up and running in minutes.

TP-Link HomeCare
TP-Link HomeCare ensures every device on your network remains protected, with a threat database updated live by Trend Micro. Powerful parental controls can limit online time and block inappropriate content according to unique profiles created for each family member.

Specifications:

Product Code	NET-TL-DECO-M5-2PK
POWER
AC adapter input	100-240V ~ 50/60Hz 0.4A
AC adapter output	12V / 1.2A
HARDWARE FEATURES
Processor	Quad-core CPU

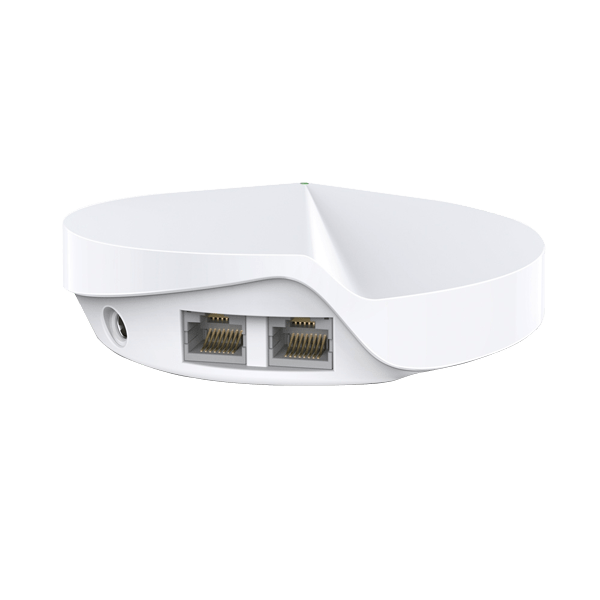

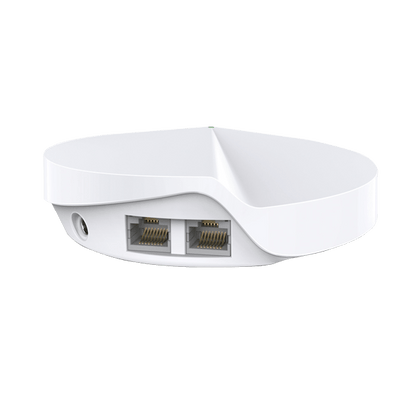

Interface	2 LAN/WAN Gigabit Ethernet Ports
Button	1 Reset button on the underside
External Power Supply	12 V/1.2 A
Flash	32 MB
SDRAM	256 MB
Dimensions	Ø4.7 in. x 1.3 in. (Ø120 mm x 38 mm)
Antenna	4 internal antennas per Deco unit
Bluetooth version	4.2 and above
WIRELESS FEATURES
Wireless Standards	IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	400 Mbps on 2.4 GHz
	867 Mbps on 5 GHz
Transmit Power	FCC: <30 dBm
	CE: <20 dBm (2.4 GHz)
	<23 dBm (5 GHz)
Wireless Security	WPA-PSK/WPA2-PSK
Advanced Functions	TP-Link Mesh Technology:
	MU-MIMO
	Auto Path Selection
	AP Steering
	Band Steering
	Beamforming
SOFTWARE FEATURES
Quality of Service	WMM
IPv6	Support
WAN Type	Dynamic IP/Static IP/PPPoE
Management	Local Management, Remote Management
DHCP	Server, Client
Port Forwarding	Support
Access Control	Blacklist
Firewall Security	SPI Firewall
Protocols	Supports IPv4 and IPv6
Advanced Features	Homecare:
	Antivirus
	Parental Controls
	Quality of Service
Advanced Functions	Speedtest
	Monthly Usage Reports
	Auto FW Update
	Expand for more deco
Guest Network	2.4 GHz guest network * 1
	5 GHz guest network * 1
Beamforming	Support
APP	Easy setup by Deco App
OTHERS
Certification	CE, FCC, IC, NCC, BSMI, IDA
Package Contents	Deco M5 (-pack):
	2 Deco units
	1 RJ45 Ethernet Cable
	2 Power Adapters
Smartphone/Tablet Requirements	iOS 8.0 or later
	Android 4.3 or later
	Bluetooth 4.0 or later
Environment	Operating Temperature: 0°C~40°C (32°F~104°F)
	Storage Temperature: -40°C~70°C (-40°F~158°F)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
