TL-SG2008P

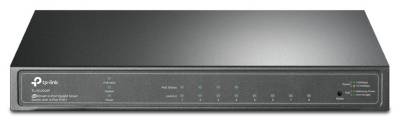

TP-Link TL-SG2008P JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+

TP-Link TL-SG2008P JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+, PORT: 4x Gigabit PoE+ Ports, SPEC: 802.3at/af, 62 W PoE Power, Desktop Steel Case, Features: 62 W PoE Budget, Full Gigabit Ports, Integrated into Omada SDN, Centralized Management, Robust Security Strategies, Optimize Voice and Video Applications

Features:

• 62 W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62 W*.
• Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Multiple Application Scenarios
The TL-SG2008P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Power over Ethernet for Simplified Network Deployment
Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

QoS for Lag-Free Experience
Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free.

VLAN for Security
Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications:

Specifications
Product Code	TL-SG2008P
HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface	8x 10/100/1000 Mbps RJ45 Ports (Ports 1-4 Support 802.3at/af PoE+)
	Auto-Negotiation/Auto MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
	100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity	Fanless
Power Supply	External Power Adapter (Output: 53.5 VDC/ 1.3 A)
Power Consumption	7.9 W (no power device connected)
	79.2 W (with 62 W power devices connected)
PoE Ports (RJ45)	Standard: 802.3af/at compliant
	PoE Ports: 4 Ports
	Power Supply: 62 W
Dimensions ( W x D x H )	8.2 x 4.9 x 1.0 in.
	(209 x 126 x 26mm)
Max Power Consumption	V1: 69.7 W (220 V/50 Hz) (with 62 W PD connected); 7.9 W (220 V/50 Hz) (no PD connected)
	V2: 73.8 W (220 V/50 Hz) (with 62 W PD connected)
	V3: 77.3 W (110 V/60 Hz) (with 62 W PD connected)
Max Heat Dissipation	V1: 237.82 BTU/hr (220 V/50 Hz) (with 62 W PD connected); 26.95 BTU/hr (220 V/50 Hz) (no PD connected)
	V2: 251.84 BTU/hr (220 V/50 Hz) (with 62 W PD connected)
	V3: 263.6 BTU/hr (110 V/60 Hz) (with 62 W PD connected)
PERFORMANCE
Bandwidth/Backplane	16 Gbps
MAC Address Table	8k
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	802.1p CoS/DSCP priority
	8 priority queues
	Priority Schedule Mode
	- SP (Strict Priority)
	- WRR (Weighted Round Robin)
	Queue Weight Config
	Bandwidth Control
	- Port/Flow-based Rating Limit
	Smoother Performance
	Storm Control
	- Multiple Control Modes(kbps/ratio)
	- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features	DHCP Relay
	- DHCP VLAN Relay
	DHCP L2 Relay
	Link Aggregation
	- Static link aggregation
	- 802.3ad LACP
	- Up to 8 aggregation groups and up to 8 ports
	per group
	Spanning Tree Protocol
	- 802.1D STP
	- 802.1w RSTP
	- 802.1s MSTP
	- STP Security: TC Protect, BPDU Filter/Protect
	Root Protect
	Loopback Detection
	Flow Control
	- 802.3x Flow Control
	Mirroring
	- Port Mirroring
	- CPU Mirroring
	- One-to-One
	- Many-to-One
	- Flow-Based
	- Ingress/Egress/Both
	Device Link Detect Protocol (DLDP)
	802.1ab LLDP/ LLDP-MED
L2 Multicast	511 IPv4, IPv6 shared multicast groups
	IGMP Snooping
	- IGMP v1/v2/v3 Snooping
	- Fast Leave
	- IGMP Snooping Querier
	- Static Group Config
	Multicast VLAN Registration (MVR)
	Multicast Filtering
	MLD Snooping
	- MLD v1/v2 Snooping
	- Fast Leave
	- MLD Snooping Querier
	- Static Group Config
	Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support	IPv6 Dual IPv4/IPv6
	Multicast Listener Discovery (MLD) Snooping
	IPv6 neighbor discovery (ND)
	Path maximum transmission unit (MTU) discovery
	Internet Control Message Protocol (ICMP)
	version 6
	TCPv6/UDPv6
	IPv6 applications
	- DHCPv6 Client
	- Ping6
	- Tracert6
	- Telnet (v6)
	- IPv6 SNMP
	- IPv6 SSH
	- IPv6 SSL
	- Http/Https
	- IPv6 TFTP
VLAN	VLAN Group
	- Max. 4K VLAN Groups
	802.1Q tag VLAN
	MAC VLAN
	Protocol VLAN
	GVRP
	Voice VLAN
Access Control List	Support up to 230 entries
	Time-Range
	- Time Slice
	- Week Time-Range
	- Absolute Time-Range
	- Holiday
	Time-based ACL
	MAC ACL
	- Source MAC
	- Destination MAC
	- VLAN ID
	- User Priority
	- Ether Type
	IP ACL
	- Source IP
	- Destination IP
	- IP Protocol
	- TCP Flag
	- TCP/UDP Source Port
	- TCP/UDP Destination Port
	- DSCP/IP TOS
	IPv6 ACL
	Combined ACL
	Rule Operation
	- Permit/Deny
	Policy Action
	- Mirror
	- Rate Limit
	- Redirect
	- QoS Remark
	ACL Rules Binding
	- Port Binding
	- VLAN Binding
	Actions for flows
	- Mirror (to supported interface)
	- Redirect (to supported interface)
	- Rate Limit
	- QoS Remark
Security	AAA
	802.1X
	- Port-based authentication
	- MAC (Host) based authentication
	- Authentication Method includes PAP/EAP-MD5
	- MAB
	- Guest VLAN
	- Support Radius authentication and
	accountability
	IP/IPv6-MAC Binding
	- 512 Binding Entries
	- DHCP Snooping
	- DHCPv6 Snooping
	- ARP Inspection
	- ND Detection
	IP Source Guard
	- 253 Entries
	- Source IP+Source MAC
	IPv6 Source Guard
	- 183 Entries
	- Source IPv6 Address+Source MAC
	DoS Defend
	Static/Dynamic/Permanent Port Security
	- Up to 64 MAC addresses per port
	Broadcast/Multicast/Unicast Storm Control
	- kbps/ratio control mode
	Port Isolation
	Secure web management through HTTPS with
	SSLv3/TLS 1.2
	Secure Command Line Interface (CLI)
	management with SSHv1/SSHv2
	IP/Port/MAC-based access control
Advanced Features	Automatic Device Discovery
	Batch Configuration
	Batch Firmware Upgrading
	Intelligent Network Monitoring
	Abnormal Event Warnings
	Unified Configuration
	Reboot Schedule
MIBs	MIB II (RFC1213)
	Bridge MIB (RFC1493)
	P/Q-Bridge MIB (RFC2674)
	Radius Accounting Client MIB (RFC2620)
	Radius Authentication Client MIB (RFC2618)
	Remote Ping, Traceroute MIB (RFC2925)
	Support TP-Link private MIBs
	RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App	Yes, through
	Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2)
	OC300
	OC200
	Omada Software Controller
Centralized Management	Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2)
	Omada Hardware Controller OC300
	Omada Hardware Controller OC200
	Omada Software Controller
Cloud Access	Yes, through
	Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2)
	OC300
	OC200
	Omada Software Controller
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2428P v1, v3 and above, while is not supported by TL-SG2428P v2)
Management Features	Web-based GUI
	Command Line Interface (CLI) through telnet
	SNMPv1/v2c/v3
	SNMP Trap/Inform
	RMON (1,2,3,9 groups)
	SDM Template
	DHCP/BOOTP Client
	Dual Image, Dual Configuration
	CPU Monitoring
	Cable Diagnostics
	EEE
	SNTP
	System Log
OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SG2008P
	Power Adapter
	Installation Guide
	Rubber Feet
Environment	Operating Temperature: 0-40 °C (32-104 °F);
	Storage Temperature: -40-70 °C (-40-158 °F)
	Operating Humidity: 10-90% RH non-condensing
	Storage Humidity: 5-90% RH non-condensing
