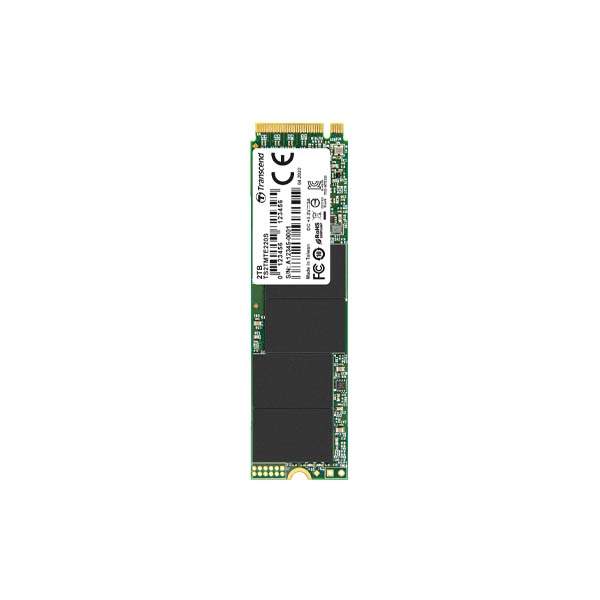

Transcend 256GB PCIe SSD 220S

Transcend PCIe SSD 220S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Utilizing the PCI Express® Gen3 x4 interface supported by the latest NVMe™ standard, 3D NAND flash memory, an 8-channel controller, and a DRAM cache, the PCIe SSD 220S offers supreme transfer speeds that override others.

Supreme transfer speeds

Transcend's PCIe SSD 220S follows NVMe 1.3 and utilizes the PCIe™ Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously. Its 8-channel controller supports ultra-high data throughput, resulting in the compelling performance of up to 3,500MB/s read and 3,200MB/s write.

Understanding the PCIe interface

PCIe (or PCI Express®) is a much faster interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices over one or more lanes consisting of one transmit and one receive serial interface in each lane, meaning it can better fulfil new performance requirements.

Understanding the NVMe standard

NVMe (or NVM Express®) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency.

3D expansion to break through limits

Unlike planar NAND memory, 3D NAND flash features memory cells stacked vertically in multiple layers. 3D NAND overcomes the density limitations of 2D planar NAND and delivers a higher level of performance and endurance.

Better endurance, higher reliability

Transcend's PCIe SSD 220S has been engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality 3D NAND flash chips, and an engineered dynamic thermal throttling mechanism, the PCIe SSD 220S guarantees superior endurance and stability for high-end applications.

SSD Scope software

Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.

Guaranteed quality

To ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.

Specifications

Appearance

Dimensions
Double-sided 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")

Weight
10 g (0.35 oz)

Type
M.2 2280

Interface

Bus Interface
NVMe PCIe Gen3 x4

Storage

Flash Type
3D NAND flash

Capacity
256 GB

Operating Environment

Operating Temperature
0°C (32°F) ~ 70°C (158°F)

Operating Voltage
3.3V±5%

Performance

Sequential Read/Write (CrystalDiskMark)
256 GBup to 3,300/1,250 MB/s

4K Random Read/Write (IOmeter)
256 GBup to 190,000/300,000 IOPS

Terabytes Written (TBW)
256 GB 550 TBW

Mean Time Between Failures (MTBF)
2,000,000 hour(s)

Drive Writes Per Day (DWPD)
1.2 (5 yrs)
