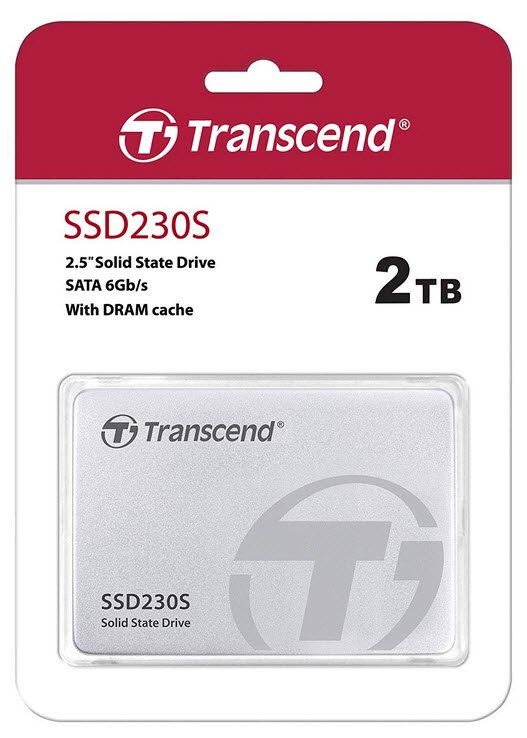

Transcend SSD230S Series 2 TB 2.5" SATA3(6Gb/s) Solid State Drive - 3D TLC NAND Flash Memory - Aluminium Casing - 7mm - Max Seq. R/W: 560MB/s, 520MB/s - DDR3 DRAM cache - SM2258 Controller

Overview:

Transcend's SATA III 6Gb/s SSD230S uses the latest 3D NAND technology that features vertical, stacked expansion of storage cells. By using high-quality flash memory and enhanced firmware algorithms, the SSD230S delivers greater performance and reliability.

Features:

3D expansion to break through limits
Unlike planar NAND memory, 3D NAND flash features memory cells stacked vertically in multiple layers. 3D NAND overcomes density limitations of 2D planar NAND, and delivers a higher level of performance and endurance.

Performance boost for everyday computing
Taking full advantage of the SATA III 6Gb/s interface and built-in SLC caching technology, Transcend's SSD230S achieves exceptional transfer speeds of up to 560MB/s read and 520MB/s write.

Guaranteed endurance and reliability
Transcend's SSD230S offers great Terabytes Written (TBW) values (up to 1,120 TB) indicating the total amount of data you can write into the drive over its lifetime.

RAID engine and LDPC coding
Detects and corrects transfer errors to prevent data corruption in TLC-based SSD products

Garbage Collection
Relocates existing data to release memory blocks

Wear-leveling
Distributes data evenly across memory cells to prolong SSD's lifespan

DevSleep
Intelligently shuts down SATA interface when not in use to prolong device's battery life

DDR3 DRAM cache
Stores a temporary copy of the most active data to shorten access times

A better choice than HDD
Solid-state drives dominate the market for PC upgrades because they are faster and lighter than hard disk drives. SSDs also feature less power, create less noise when in operation, and are more shock-resistant than traditional hard drives.

3 easy steps to upgrade your PC
Transcend's SSD230S measures just 6.8mm in height and features short access times, making it a perfect choice for upgrading desktops, laptops, and the latest gaming consoles in just 3 easy steps!

SSD Scope software
Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.

Guaranteed quality
Transcend’s solid state drives are built to the highest standards and rigorously tested, and offer outstanding quality, performance, and reliability.

Specifications:

Product Code	TS2TSSD230S
Appearance
Dimensions (Max.)	100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.28")
Weight (Max.)	53 g (1.87 oz)
Storage
Flash Type	3D NAND flash
Capacity	2 TB
Operating Environment
Operating Temperature	0°C (32°F) ~ 70°C (158°F)
Operating Voltage	5V±5%
Performance
Sequential Read/Write (CrystalDiskMark)	2 TB
	560/520 MB/s
4K Random Read/Write (IOmeter)	2 TB
	85, 000/89, 000 IOPS
Terabytes Written (TBW)	2 TB
	1,120 TBW
Mean Time Between Failures (MTBF)	1,000,000 hour(s)
Drive Writes Per Day (DWPD)	0.3 (5 yrs)
Note	Speed may vary due to host hardware, software, usage, and storage capacity.
	The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
	For Mac users please visit our Apple Solutions .
Package
Package Contents	Full unit
System Requirement
Operating System	Microsoft Windows 7
	Microsoft Windows 8
	Microsoft Windows 10
	Linux Kernel 2.6.31 or later
Technology
TRIM & NCQ Command	Yes
S.M.A.R.T.	Yes
DDR3 DRAM Cache	Yes
Advanced Garbage Collection	Yes
DevSleep Mode	Yes
RAID Engine	Yes
LDPC Coding	Yes
