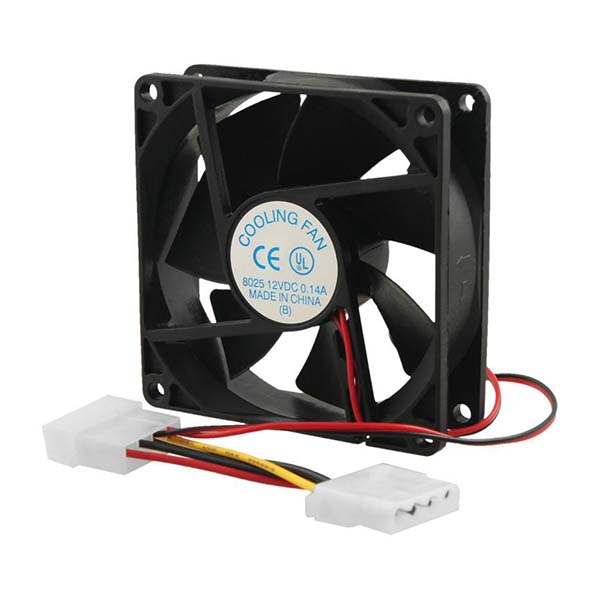

CHASSIS FAN 80MM BLACK - 8CMFAN DC FAN CHASSIS FAN 80MM BLACK Specification Measurement: 80 x 80 x 25mm Rated Voltage: 12 DCV

Operating Voltage: 3.5 - 16 DCV

Starting Voltage: 3 DCV (on/off)

Rated Current: 0.20±0.01 Amp

Input Power: 24 Watts

Rated Speed: 1800 RPM±10% (after running3-5minutes)

Noise Level: 35 dB(A)

Max. Air Flow: 28 CFM

Max. Static Pressure: 5.6 mmAq

Life Expectancy: 30000 Hours (at 25? 65%R.H.)

Operating Temperature: -10 - +85 ?(66%RH)

Storage Temperature: -40-+70 ?(66%RH) Weight: Gram

FAN HOUSING: PBT 85%+FIBER15%

FAN BLADE: PBT 80%+FIBER20%

INSULATOR FRAME: PBT 100%

SHAFT: STAINLESS STEEL

BEARING: BALL

PLASTIC MAGNET: STRONTIUM FERRITE

ENAMELED WIRE: 2 UEW

SILICON STEEL STRIP: H23

HALL IC: CC6412

LEAD WIRES: 2468 26AWG L-165mm
