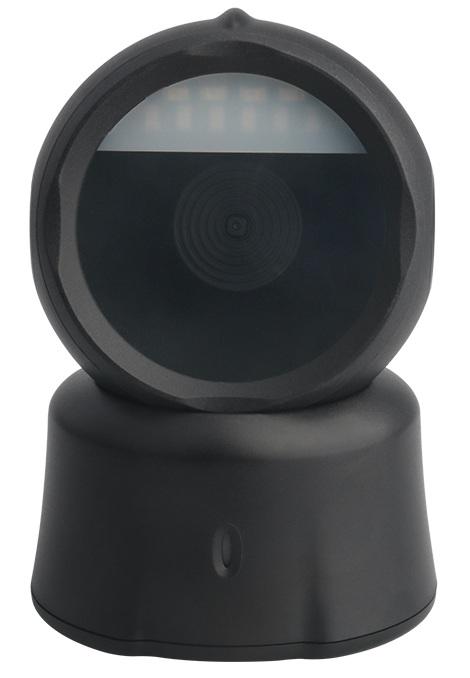

USB+RS232 DESKTOP BARCODE SCANNER - DP8210

MLINK

The DP8210 Is A Desktop 2D Omnidirectional Barcode Scanning Platform

Designed For High-Flow Retail Environments

Featuring Both USB And RS232 Interfaces

It utilizes advanced CMOS Image Recognition Technology

To Read Both 1D And 2D Barcodes From Paper, Products, and Screens

Specifications

Technology: CMOS Image Sensor (640 x 480 Pixels)

Interfaces: USB (HID-KBW, USB-COM) And RS232

Scanning Performance

Light Source: Red Light LED (625±10nm aim, 5600K LEDs Lighting)

Scan Mode: Automatic Induction / Continuous / Auto Sense

Scan Speed (Motion Tolerance): Up To 100cm/s (Or 100 Times Per Second)

Resolution

5mil/0.127mm (PCS90%, Code 39)

Depth of Field: 0-380mm

Symbologies (1D/2D)

Reads All Mainstream 1D (UPC, EAN, Code 128, Code 39, etc.)

And 2D (QR Code, Data Matrix, PDF417, Aztec) Codes

Physical & Electrical

Dimensions

Approximately L86.7mm x W96.7mm x H143.6mm

Weight: Approximately 270g (Without Cable)

Voltage: DC 5V

Operating Current: -280mA

Cable Length: 1.8M

Environmental & Features

Operating Temp: -10°C to 50°C

Support: Multi-Language, Inserting / Replacing Characters

And High-Speed HID-POS Protocol

Application Scenarios

The scanner Is Suitable For Supermarkets, Department Stores, Pharmacies, Libraries

And Convenience Stores, Particularly For Mobile Payment, Coupon Scanning

And Inventory Management
