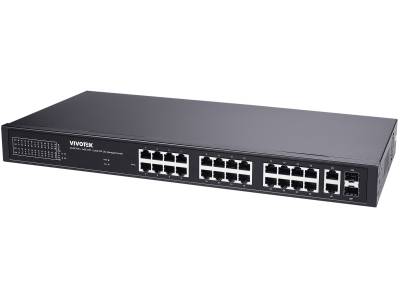

Vivotek 24x GE PoE & 2x GE UTP & 2x GE SFP Lite Managed PoE Switch, 24x Gigabit PoE Ports, 2x Gigabit RJ45 Port, 2x SFP Port, 56 Gbps switching Bandwidth, Port 1-4 at 90W PoE Output Power, Port 5-24 at 30W PoE Output Power, 380W total PoE Power budget, AW-GEL-285A-380

Overview:

AW-GEL-285A-380
4xGE bt 90W PoE + 20xGE 30W PoE + 2xGE UTP + 2xGE SFP Lite Managed Switch
Specifications:

Product Code	VIVOTEK AW-GEL-285A-380
Model	AW-GEL-285A-380
Product Description	4xGE bt 90W PoE + 20xGE 30W PoE + 2xGE UTP + 2xGE SFP Lite Managed Switch
Port Configuration
10M/100M/1G PoE Port	24
10M/100M/1G RJ45 Port	2
100M/1G SFP Port	2
IEEE 802.3x	V
IEEE 802.3u	V
IEEE 802.3ab	V
Total Ports	28
HW Performance
Switching Bandwidth	56 Gbps
Buffer Memory	4.1 Mb
MAC Address	8K
Jumbo Frames	9216 Bytes
Lite Managed Features
Lite Managed Features	VLAN
802.1Q Tag-based VLAN	4096 VLAN IDs
Port-based VLAN	V
Spanning Tree Protocol
IEEE 802.1d (STP)	V
IEEE 802.1w (RSTP)	V
Link Aggregation Control Protocol	V
	QoS
CoS port-based	V
CoS 802.1p-based	V
CoS DSCP-based	V
Loop Protection	V
Flow Control	V
Strom Control	V
Port-Based Mirroring	V
Port Isolation	V
Bandwidth Control	V
Satic MAC	V
PoE Management
PoE On/Off Control	V
PoE Auto Checking	V
Non-Stop PoE	V
Extend PoE Mode (250M)	V
PoE Function
IEEE 802.3 PoE Standard Compliant	802.3 af/at/bt
Number of PoE Output Port	24
PoE Output Power	Port 1-4 bt 90W
	Port 5-24 at 30W
Totoal PoE Power Budget	380W
PoE Pin Assignment	Port 1-4: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-)
	Port 5-24: 2 pairs 1/2 (-), 3/6 (+)
PoE Surge Protection	4KV Per PoE port
Environmental Specifications
Operating Temperature	0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity	10 ~ 90% RH
Mechanical Specifications
Dimensions	442 (W) x 212 (D) 44 (H) mm
Weight	2,74 kg
Power Source
AC Input	100V ~ 240V
Frequency	50 ~ 60 Hz
Power Consumption	400W
Certifications
Certifications	CE, FCC, LVD, VCCI
Accessories
Included Accessories	Power Cord, QIG, Rack Mount Kit
