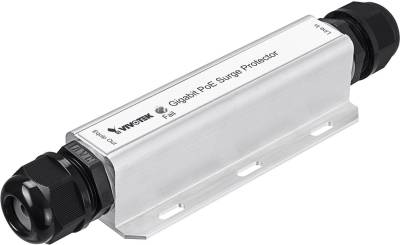

Vivotek AP-PSP-050 surge arrestor, 60 VDC operation voltage, 5ns response time, IP67 waterproof standard

Overview:

• 60 VDC Operation Voltage
• 5ns Response Time
• 2 x RJ45 Ports
• IP67 Rated

Features:

The AP-PSP-050 Outdoor PoE Surge Protector from Vivotek is designed to be used for outdoor PoE installation. It has a 60 VDC maximum operation voltage, a 5ns response time, and features two RJ45 ports. It is rated IP67 waterproof.

Specifications:

Product Code	VIVOTEK AP-PSP-050
Number of Ports	1
Pass Through Data Rates	10/100/1000 Mb/s
Discharge Current	Maximum: 8 kA, 16 kV (8/20 us, 1 kA per Line)
DC Voltage	Maximum Operation: 60 VDC
DC Current	Maximum Operation: 1 A for 2 Pairs, 2 A for 4 Pairs, 95 W
Protection Level	Common Mode: 20 kV (10/700us)
Clamping Voltage	Line to GND: 600 V
	Line to Line: 20 V
Insertion Loss	At 10/100 MHz: 1 dB
Return Loss	At 10/100 MHz: -20 dB
Response Time	5 ns
Connectors	2 x PG16 (RJ45)
MTBF	1,132,887 Hours
Waterproof Standard	IP67
Certifications	EMC: CE, FCC, VCCI, C-Tick
	Safety: EN60950-1, IEC60950-1
	Surge: ITU-T K.21, IEC-61643-21, IEC61000-4-5, TIA-968-A (FCC Part 68)
Operating Temperature	-40 to 185°F / -40 to 85°C
Storage Temperature	-40 to 185°F / -40 to 85°C
Operating Humidity	5 to 95% (Non-Condensing)
Dimensions	7.3 x 2.0 x 1.3" / 186.2 x 50 x 32 mm
Weight	0.60 lb / 0.27 kg
