Indoor Fisheye; 5MP; 15fps; H.265/H.264/MJPEG; f1.16mm fisheye lens; daytime only; WDR Pro; PoE; Built-in Mic
Indoor Fisheye; 5MP; 15fps; H.265/H.264/MJPEG; f1.16mm fisheye lens; daytime only; WDR Pro; PoE; Built-in Mic
Vivotek
Regular price
R 5,079.00
Regular price
R 0.00
Sale price
R 5,079.00
Taxes included.
Shipping calculated at checkout.
Online Only
Quantity
Couldn't load pickup availability
SKU:VIVOTEK FE9180-H-V2
Share
Overview :

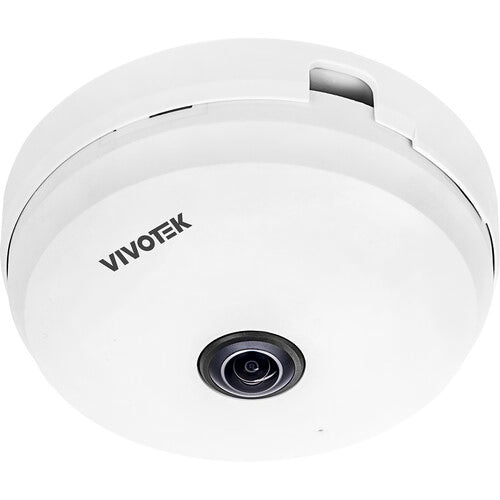

Monitor an indoor space with the FE9180-H-v2 5MP Network Fisheye Dome Camera from Vivotek. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 1920 x 1920 resolution video at 30 fps. The camera's 1.16mm fixed lens delivers a 180° horizontal field of view and a 360° fisheye view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
Features :
- Client and local dewarping modes offer various fisheye, panoramic, and region views while the camera is wall or ceiling mounted
- Multimedia SoC CPU
- Removable IR cut filter enables day and night functionality
- SNV (Supreme Night Visibility) for low-light conditions
- Smart Stream III optimizes bandwidth efficiency
- ePTZ with 12x digital zoom
- WDR Pro (120 dB) and 63 dB S/N ratio
- Image settings include: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, exposure, BLC/HLC, exposure control, AE speed adjustment, WDR, privacy mask, scheduled profile settings, and pixel calculator
- Five-window video motion detection
- Built-in microphone with an effective audio pickup range of about 16'
- VADP package includes: Stratocast, 1-year free trial of Trend Micro IoT Security, and VIVOCloud
- Live viewing for up to ten clients
Specifications :
| Sensor |
5 MP 1/2.7" CMOS
|
| Focal Length |
1.16mm
|
| Lens Field of View |
Horizontal: 180°
Vertical: 180° Vertical: 180° |
| Built-In Mic |
Yes
|
| Power Source |
PoE 802.3af (15 W)
|
Camera
| Sensor |
5 MP 1/2.7" CMOS
|
| Focal Length |
1.16mm
|
| Maximum Aperture |
f/2.25
|
| Zoom |
Digital: 12x
|
| Lens Field of View |
Horizontal: 180°
Vertical: 180° Vertical: 180° |
| IR Cut Filter |
Mechanical
|
| Day/Night |
Yes
|
| Minimum Illumination |
Color: 0.05 Lux
B&W: 0.005 Lux |
| Shutter Speed |
1/32000 to 1/5 Seconds
|
| DORI Coverage |
With 1.16mm Lens:
Detect: at 103' / at 31.4 m Observe: at 41' / at 12.5 m Recognize: at 20.7' / at 6.3 m Identify: at 10.2' / at 3.1 m |
| Mobile App Compatible |
No
|
Video
| Streaming Resolution |
1920 x 1920 at 30 fps
|
| Supported Video Compression |
H.264, H.265, MJPEG
|
| Multi-View Streaming |
Yes, 4 Streams
|
Audio
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
G.711, G.726
|
| Built-In Mic |
Yes
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log
|
| Supported Protocols |
ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
|
System Integration
| Application Programming Interface (API) |
ONVIF Profiles G, S & T
|
| Analytics |
Five-Window Video Motion Detection
|
| Built-In Installation Aids |
Pixel Calculator
|
| OS Compatibility |
Windows 7 to 10
macOS 10.12 |
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Data Streaming |
Yes
|
| Alarm I/O |
No
|
Hardware
| Memory |
256 MB RAM / 128 MB Flash
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC
|
| Internal Storage |
No
|
| External Storage Options |
Cloud, NAS
|
Power
| Power Source |
PoE 802.3af (15 W)
|
| Power Consumption |
4.6 W
|
Environmental
| Operating Temperature |
14 to 122°F / -10 to 50°C
|
| Startup Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
90%
|
General
| Inputs/Outputs |
1x RJ45
|
| Video Management Software |
VADP Package
|
| Certifications |
FCC (Part 15 Class B), RCM, UL, as per Manufacturer
|
| Dimensions |
ø: 3.7 x H: 1.4" / ø: 94.0 x H: 35.0 mm
|
| Weight |
0.3 lb / 140 g
|
Packaging Info
| Package Weight |
0.605 lb
|
| Box Dimensions (LxWxH) |
5.4 x 5.1 x 4.2"
|
