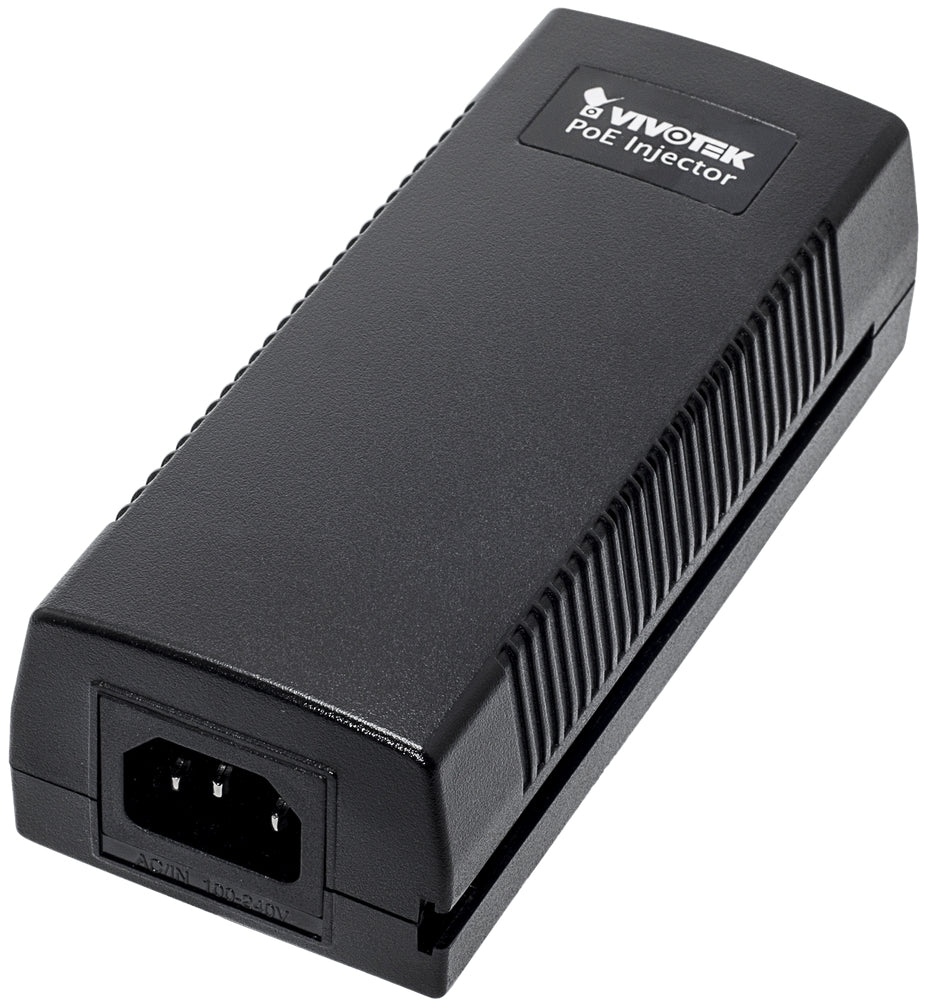

Vivotek Indoor IEEE802.3af FE PoE Injector 15W

Vivotek AP-FIC-010A-015 Indoor IEEE802.3af FE PoE Injector 15W

Specifications:

Product Code	AP-FIC-010A-015
Model	AP-FIC-010A-015
IP Camera Compatibility
Video Resolution	Megapixel/D1/VGA
Video Compression	MJPEG/MPEG-4/H.264/H.265
Compatible Camera List	VIVOTEK Network Cameras
Ethernet
Fast Ethernet (RJ45)	1
Standards
IEEE 802.3 10-BASE-T (Ethernet)	Supported
IEEE 802.3u 100-BASE-TX (Fast Ethernet)	Supported
IEEE 802.3af Power over Ethernet	Supported
Transmission Media
10Base T	Cat. 3, 4, 5 UTP/STP
100Base TX	Cat. 5, 5e UTP/STP
PoE Function
Number of PoE Out Ports	1
PoE Output Power	54VDC/15.4W
802.3af Standard Compatible	Yes
Over Current Protection	Supported
Circuit Shorting Protection	Supported
Power Pin Assignment	1/2(+), 3/6(-)
PoE PD Auto Detection	Supported
General
LED Indicators	Power, PoE
Power Input	100~240VAC / 50~60Hz
Power Consumption	19W
Dimensions	146 (L) x 64 (W) x 42 (H) mm
Weight	0.2 kg
Operating Temperature	0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)
Humidity	Operating: 10~90% (Non-condensing)
	Storage: 10~90% (Non-condensing)
Safety Certifications	CE, C-Tick, FCC, VCCI, LVD
Accessory
Included Accessories	Power cord, QIG
